Product Overview

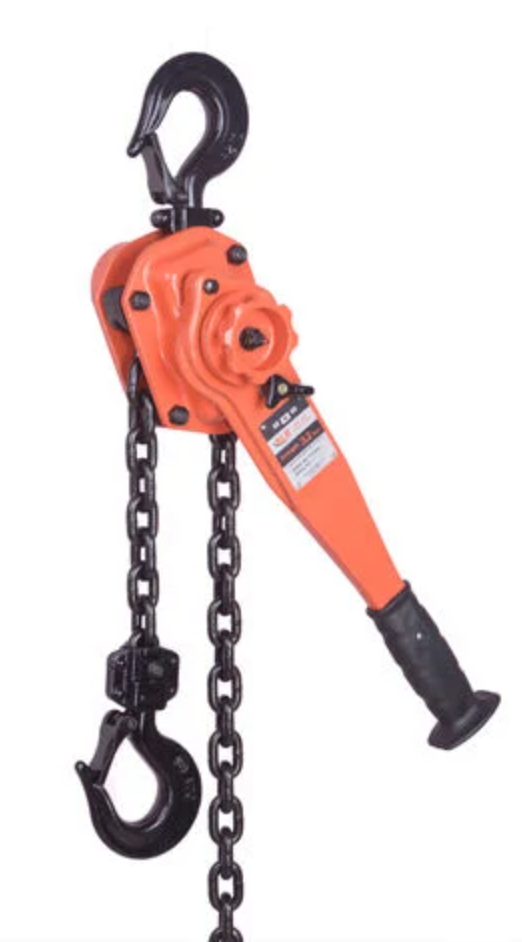

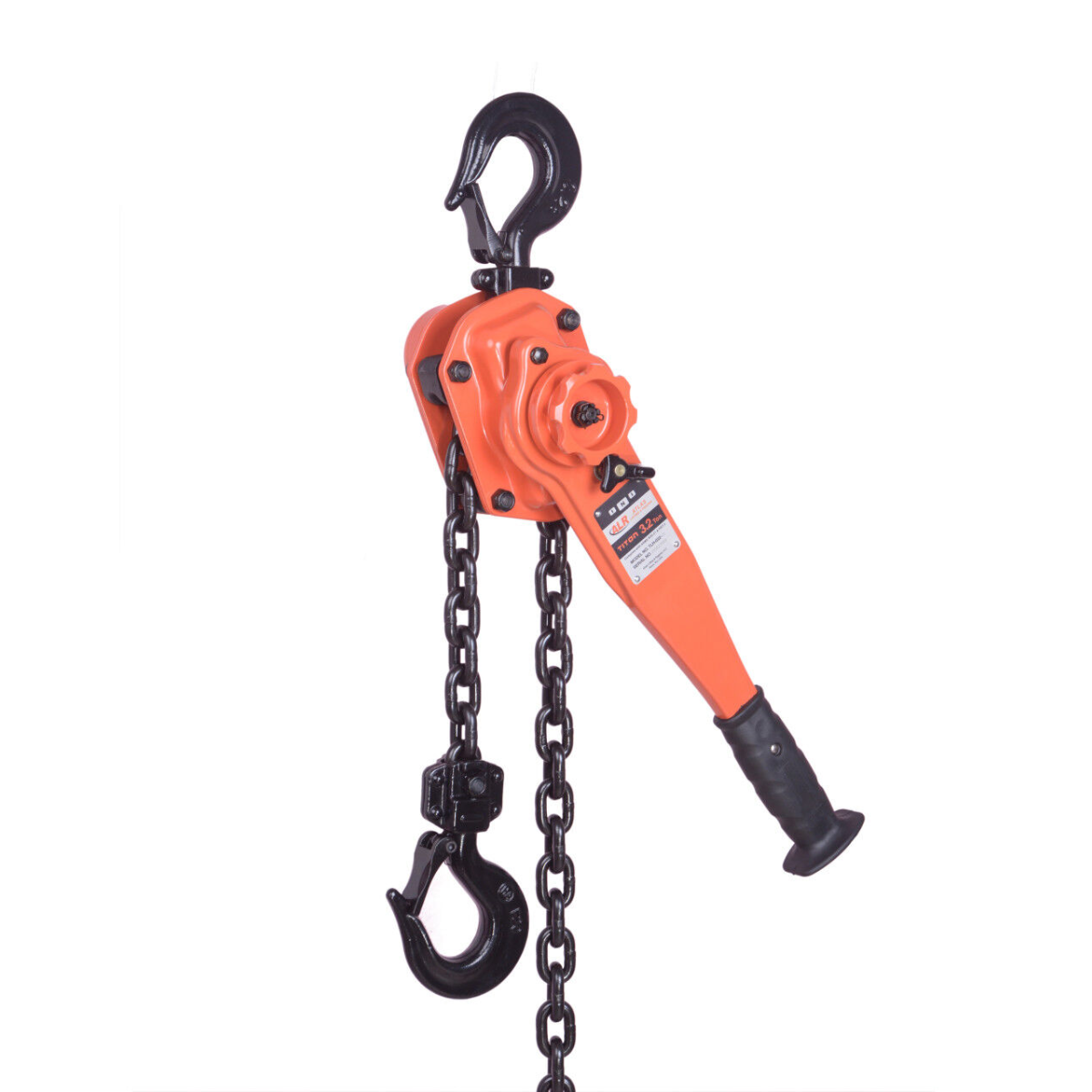

Atlas Titan Lever Hoist – TLH-032-10
3.2 Ton Capacity | 10-Foot Lift
The Atlas TLH-032-10 Titan Lever Hoist is engineered for high-performance lifting in demanding industrial environments. With a working load limit of 3.2 tons (7050 lbs) and a 10-foot lift height, this hoist offers reliable and controlled operation for a wide range of rigging, construction, and maintenance applications. Built with precision-machined components and a robust steel frame, the TLH-032-10 is designed for durability, safety, and ease of use in the field.
Features
- Heavy-Duty Capacity: Rated for 3.2 tons (7050 lbs) to handle substantial lifting tasks with confidence.

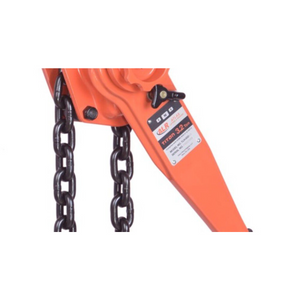

- Precision Chain: Equipped with a black oxide Grade 100 alloy steel load chain for high strength and corrosion resistance.
- Reliable Braking System: Features a Weston-style mechanical brake with dual ratchet pawls for consistent and secure load control.
- Durability: Built with a steel frame and zinc-coated components to withstand rigorous use and harsh conditions.
- High-Strength Hooks: Forged steel top and bottom hooks with safety latches and deformation indicators for secure load engagement.
- Sealed Bearings: Caged roller bearings minimize friction, providing smooth and efficient operation with minimal maintenance.
- Ergonomic Lever Handle: Designed for comfortable grip and efficient control during load adjustment.
Specifications
- Model: TLH-032-10
- Brand: Atlas Lifting & Rigging
- Rated Capacity: 3.2 Ton (7050 lbs)
- Standard Lift: 10 ft
- Load Chain Material: Grade 100 alloy steel
- Chain Finish: Black oxide
- Hook Material: Drop-forged steel with safety latches
- Frame Construction: All-steel housing
- Brake Type: Weston-style mechanical brake
- Overall Dimensions:
- Height: 15.55 in
- Width: 7.56 in
- Depth: 4.45 in
- Weight: 46.09 lbs
- Finish: Industrial orange powder coat
- Compliance: Meets ASTM B30.21 standards
- Warranty: 3-Year Limited
- Country of Origin: China
This hoist is ideal for professionals who require strength, safety, and efficiency in lifting operations. It provides dependable performance for both temporary and permanent rigging setups.
