Product Overview
Atlas Lifting and Rigging ALH-032-15 Lever Hoist

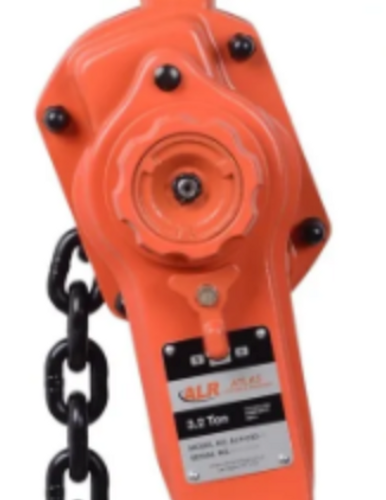

The ALH-032-15 lever hoist from Atlas Lifting and Rigging is designed to perform in demanding lifting scenarios that require both strength and extended reach. With a 3.2-ton capacity and a 15-foot lift height, this model is ideal for overhead rigging, long-span lifting, and applications where additional chain travel is needed.
Engineered with a rugged steel frame, heat-treated alloy steel load chain, and forged swivel hooks, the ALH-032-15 is made to withstand tough industrial conditions while delivering smooth and reliable operation. Its free-chaining feature and three-position selector switch make operation quick, efficient, and precise.
Key Features:
- 3.2-Ton Load Capacity: Built for heavy-duty lifting and pulling applications.
- 15-Foot Lift Height: Extended chain length for high-reach or multi-point rigging jobs.

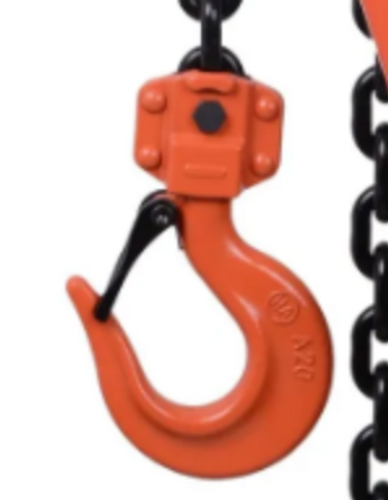

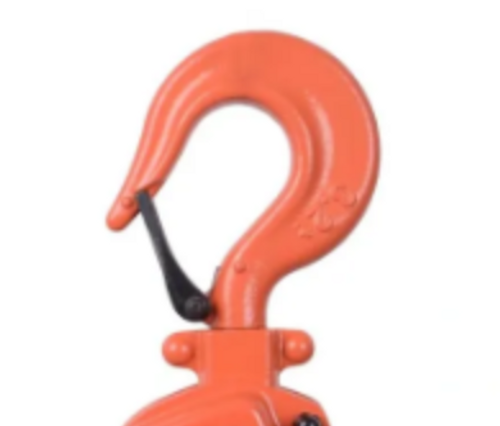

- Forged Swivel Hooks with Safety Latches: Offer secure and versatile load attachment.
- Free-Chaining Function: Allows quick slack chain adjustment during setup.
- Three-Position Selector Switch: Easy control for lifting, lowering, or neutral positioning.
- Heat-Treated Alloy Steel Load Chain: Provides high strength and long service life.
- Ergonomic Lever Handle: Designed for comfortable use and better operator control.
Specifications:
- Model: ALH-032-15
- Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
- Lift Height: 15 ft (4.6 m)
- Overload Protection: Not included
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 63 lbs (28.6 kg)
The Atlas ALH-032-15 is ideal for rigging professionals who need powerful lifting capability with extended reach in a compact and rugged design.
