Product Overview

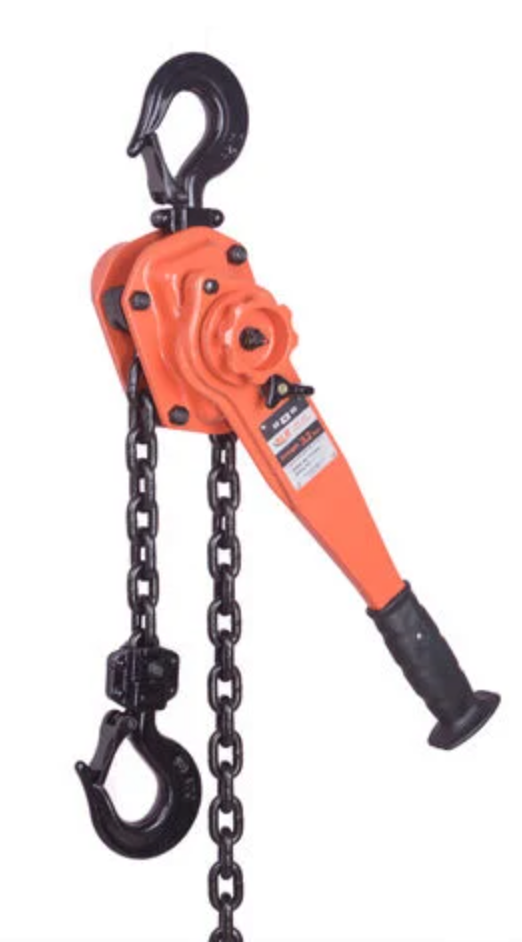

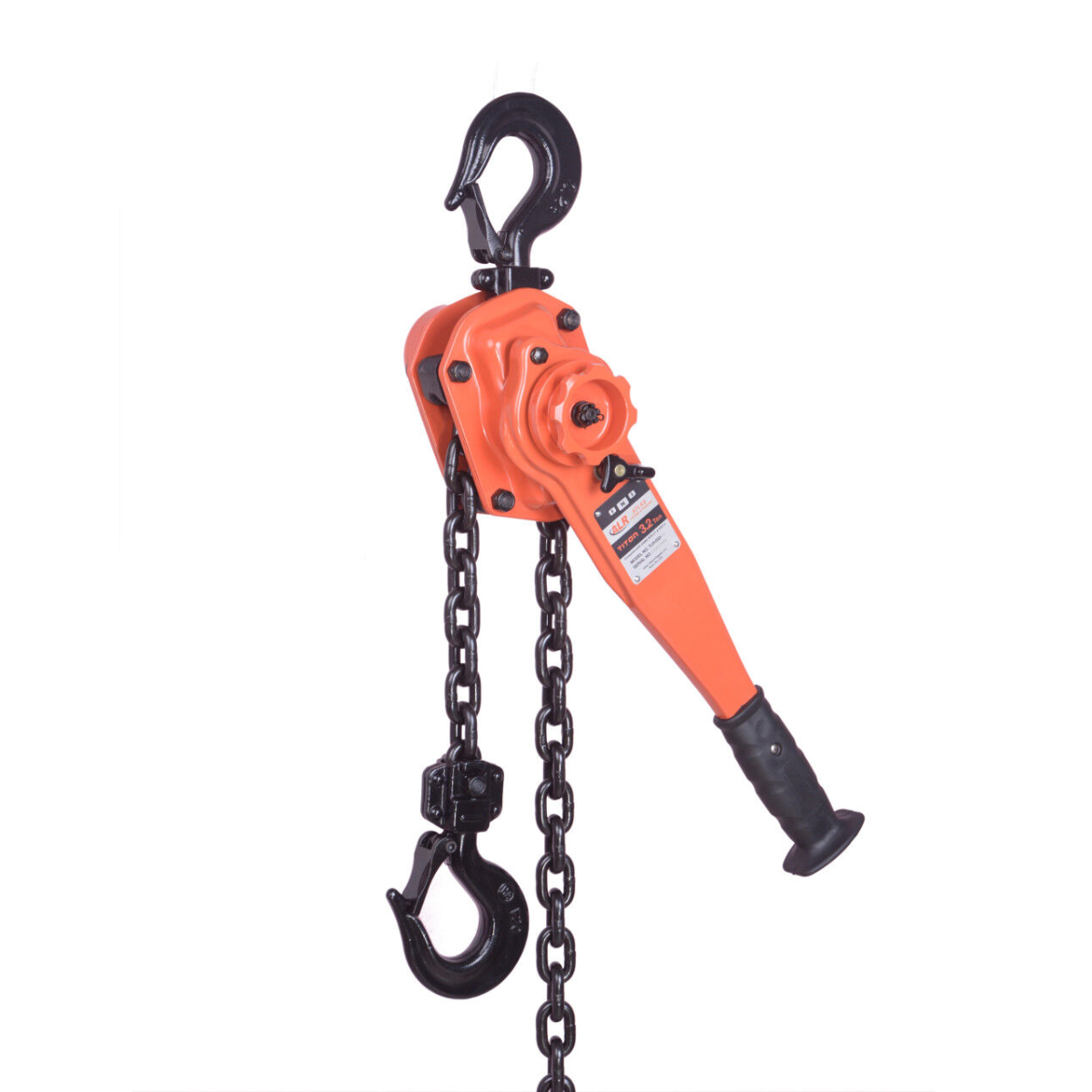

Atlas Titan Lever Hoist – TLH-032-15
3.2 Ton Capacity | 15-Foot Lift
The Atlas TLH-032-15 Titan Lever Hoist is a high-strength manual lifting solution built for industrial-grade performance. With a load capacity of 3.2 tons (7050 lbs) and an extended 15-foot lift height, this hoist is suited for rigorous applications, including construction, heavy equipment maintenance, and industrial rigging. Precision-engineered for reliability, it features a rugged steel frame, advanced load control mechanisms, and a long-lasting alloy load chain.
Features
- High Load Capacity: Supports up to 3.2 tons (7050 lbs) for demanding lifting and pulling tasks.
- Extended Lift Height: Supplied with a 15-foot high-strength alloy steel load chain for increased reach.
- Robust Construction: The full steel housing, combined with zinc-plated components, ensures longevity and resistance to harsh working conditions.
- Mechanical Brake System: Utilizes a Weston-style load brake with dual ratchet pawls for positive load holding and smooth operation.
- Forged Steel Hooks: The hooks feature safety latches and deformation indicators to enhance safety and usability.
- Sealed Bearings: Caged roller bearings promote smooth load handling and reduce maintenance.
- Operator-Friendly Design: Ergonomically designed lever for safe and efficient one-hand operation.
Specifications
- Model: TLH-032-15
- Brand: Atlas Lifting & Rigging
- Rated Capacity: 3.2 Ton (7050 lbs)
- Lift Height: 15 ft
- Load Chain Type: Grade 100 alloy steel, black oxide finish
- Hook Type: Forged steel with safety latches
- Brake Type: Weston-style mechanical brake
- Construction: All-steel housing, zinc-coated internal components
- Finish: Durable orange powder coat
- Dimensions:
- Height: 15.55 in
- Width: 7.56 in
- Depth: 4.45 in
- Weight: Approximately 53.94 lbs
- Compliance: Conforms to ASTM B30.21 standards
- Warranty: 3-Year Limited
- Country of Origin: China
The TLH-032-15 lever hoist delivers extended lifting capability with the same rugged performance and safety features trusted in the Atlas Titan series. Made for professionals who require both strength and reach in critical lifting operations.
