Product Overview

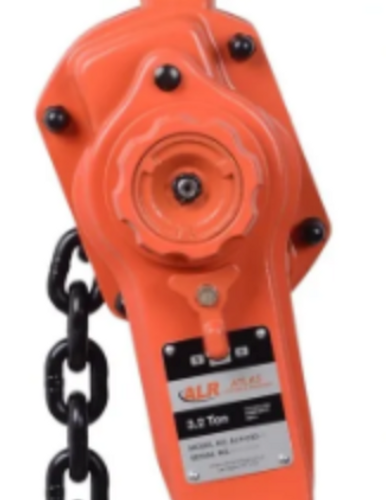

Atlas Lifting and Rigging ALH-032-20 Lever Hoist
The ALH-032-20 lever hoist is engineered for tough lifting jobs requiring a strong, reliable hoist with extended chain length. Offering a 3.2-ton capacity and an impressive 20-foot lift height, this hoist is ideal for industrial, construction, and rigging tasks where higher vertical reach is needed.
Built for industry with a rugged steel frame and equipped with a heat-treated alloy steel load chain and forged swivel hooks, the ALH-032-20 provides durability and safety in demanding environments. The free-chaining mechanism facilitates fast slack chain adjustment, while the three-position selector switch offers precise control for smooth lifting and lowering.
Key Features:
- 3.2-Ton Load Capacity: Reliable for heavy-duty lifting requirements.
- 20-Foot Lift Height: Extended vertical reach for versatile applications.

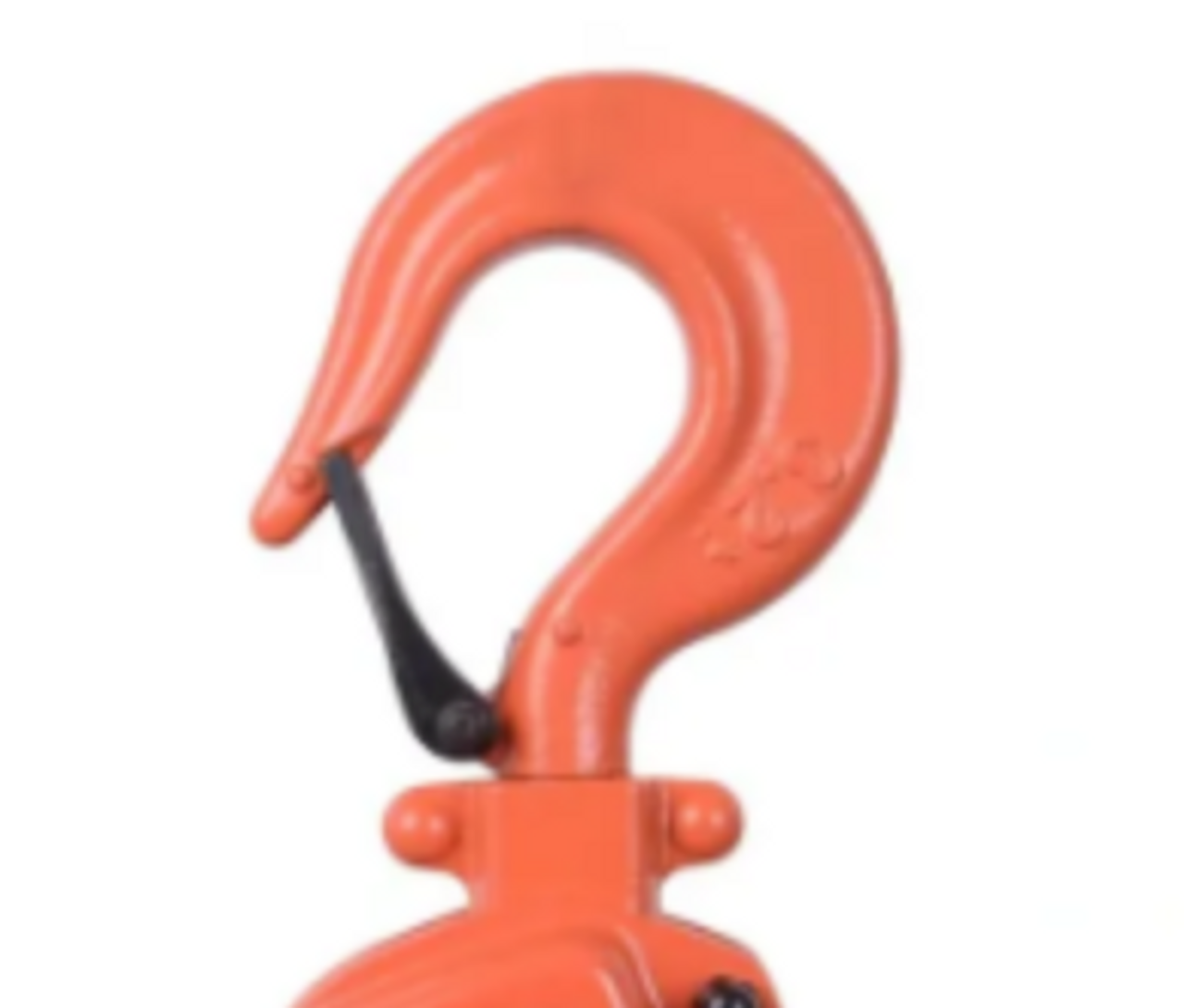

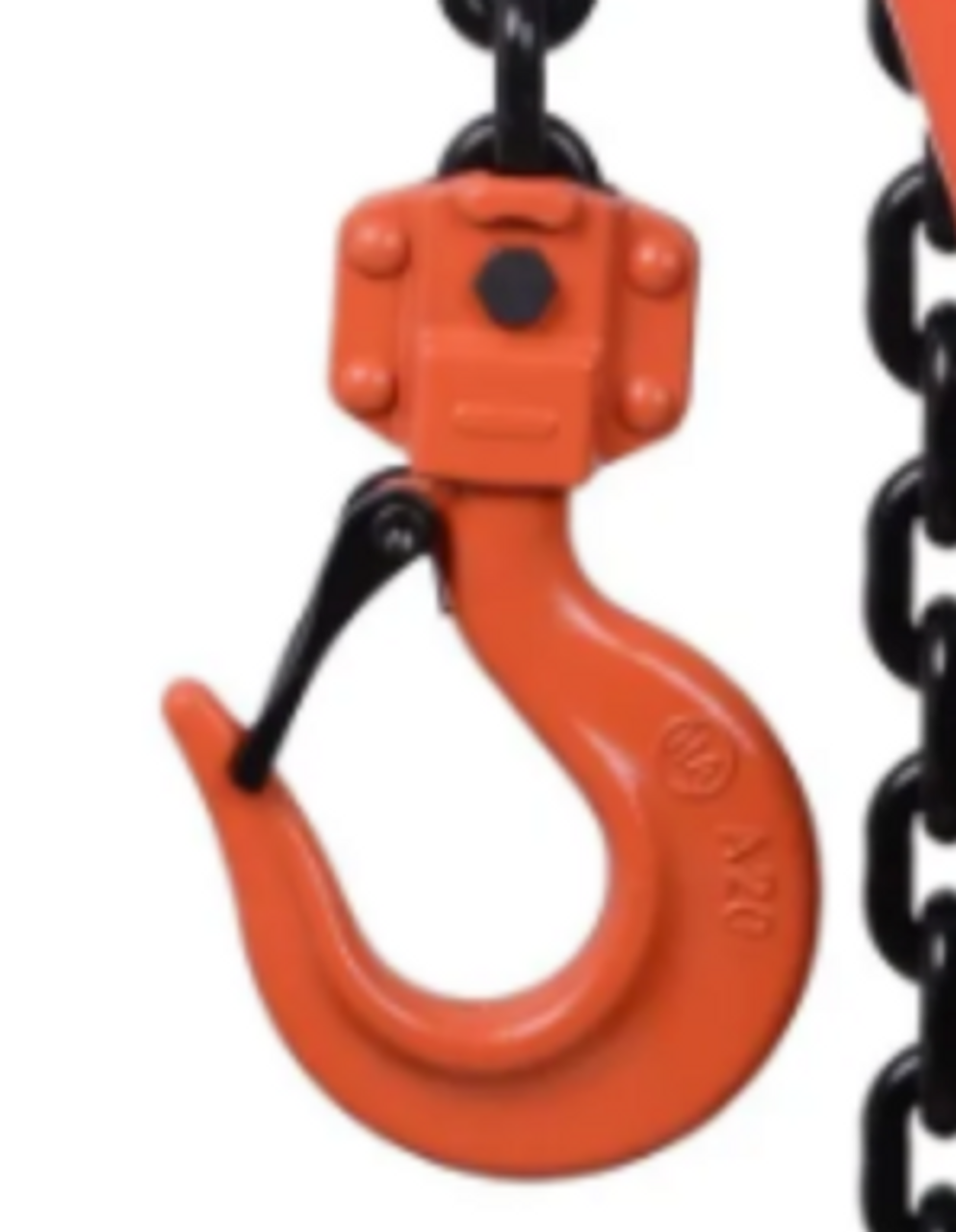

- Forged Swivel Hooks with Safety Latches: Secure and adaptable load attachment.
- Free-Chaining Function: Allows quick adjustment of chain slack.
- Three-Position Selector Switch: Easy transition between lifting, lowering, and neutral.
- Heat-Treated Alloy Steel Load Chain: High strength and durability for long service life.
- Ergonomic Lever Handle: Comfortable and efficient operation.
Specifications:
- Model: ALH-032-20
- Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
- Lift Height: 20 ft (6.1 m)
- Overload Protection: Not included
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 69 lbs (31.3 kg)
The Atlas ALH-032-20 is ideal for professionals who require dependable lifting power with extended chain length to tackle demanding rigging challenges.
