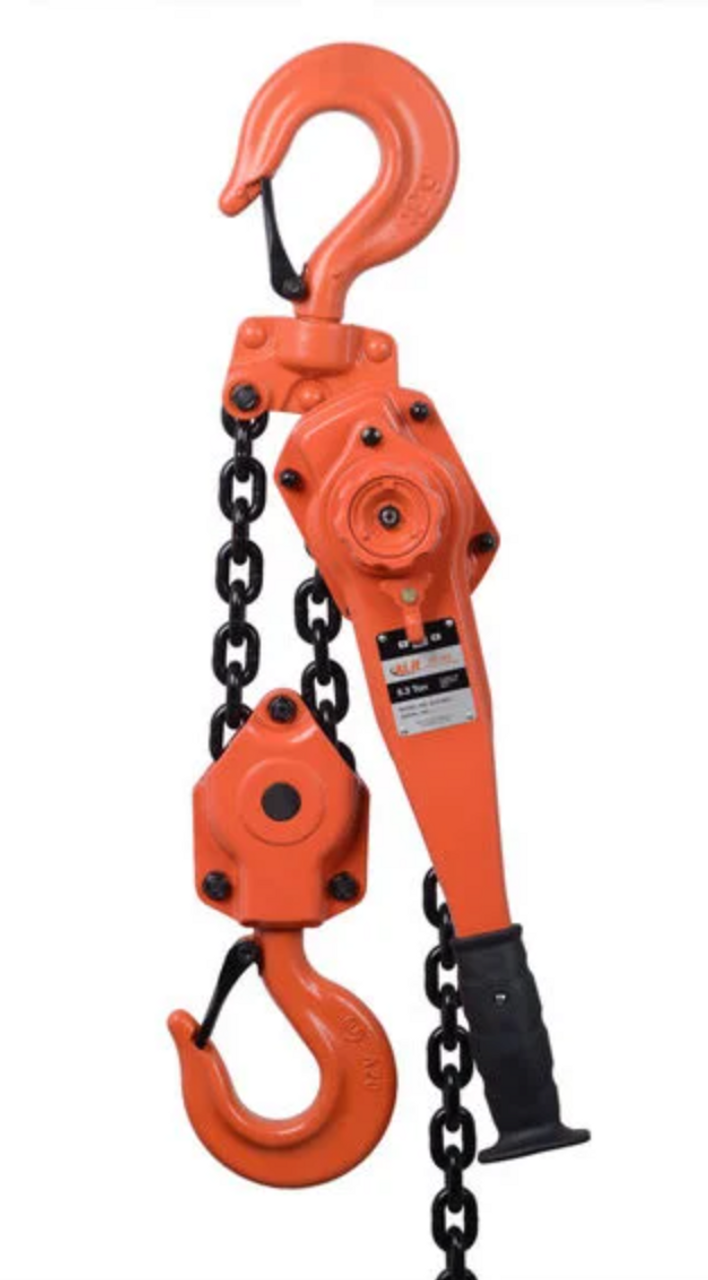

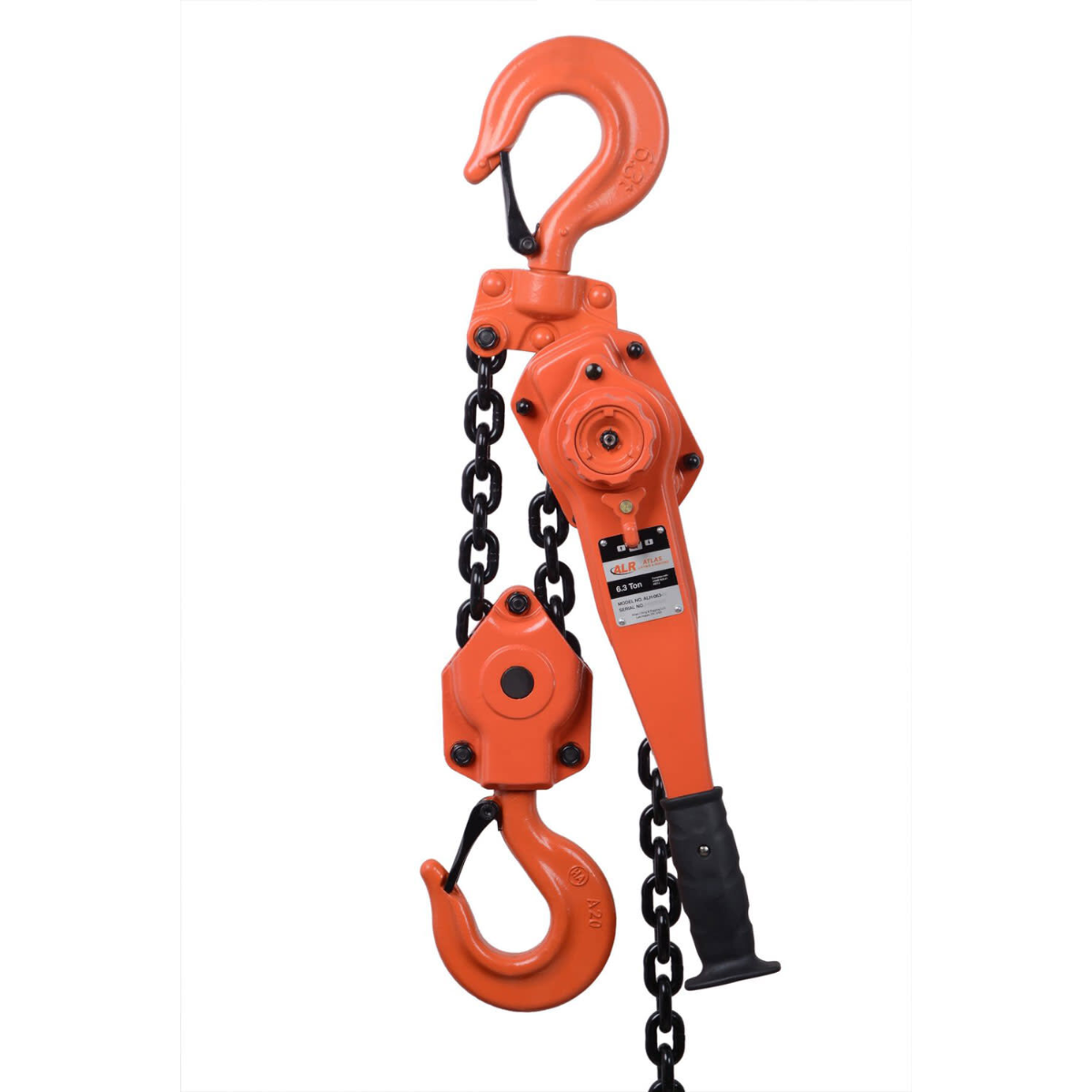

Atlas Lifting and Rigging ALH-063-05-OP Lever Hoist with Overload Protection
The ALH-063-05-OP lever hoist is purpose-built for high-capacity lifting jobs that demand maximum safety and reliability. With a 6.3-ton working load limit and a 5-foot lift height, this hoist is built with an integrated mechanical overload protection system, making it ideal for heavy industrial, construction, and infrastructure applications where operator safety and equipment longevity are critical.
This model includes forged alloy swivel hooks, a sleek handle, and a free-chaining mechanism for fast load engagement. The internal overload clutch helps prevent lifting beyond rated capacity, protecting both the operator and hoist from strain or failure.
Key Features:
- 6.3-Ton Load Capacity: Engineered for lifting the heaviest loads with confidence.
- Mechanical Overload Protection: Built-in slip clutch activates to prevent overloading.
- 5-Foot Lift Height: Suitable for most standard heavy-lift configurations.
- Forged Swivel Hooks with Safety Latches: Secure, durable, and easy to position.
- Free-Chaining Function: Quickly adjusts slack chain for faster setup and efficiency.
- Three-Position Selector Switch: Offers precise control for lifting, lowering, and neutral.
- Heat-Treated Alloy Steel Chain: Built to resist wear under intense loads.
- Ergonomic Lever Handle: Heavy-duty and designed for maximum leverage.
Specifications:
- Model: ALH-063-05-OP
- Capacity: 6.3 Tons (12,600 lbs / 5,715 kg)
- Lift Height: 5 ft (1.5 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 18 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 90 lbs (40.8 kg)
The Atlas ALH-063-05-OP is the ideal solution for professionals who need a high-capacity lever hoist with enhanced built-in safety for lifting in critical or high-risk environments.
