Product Overview

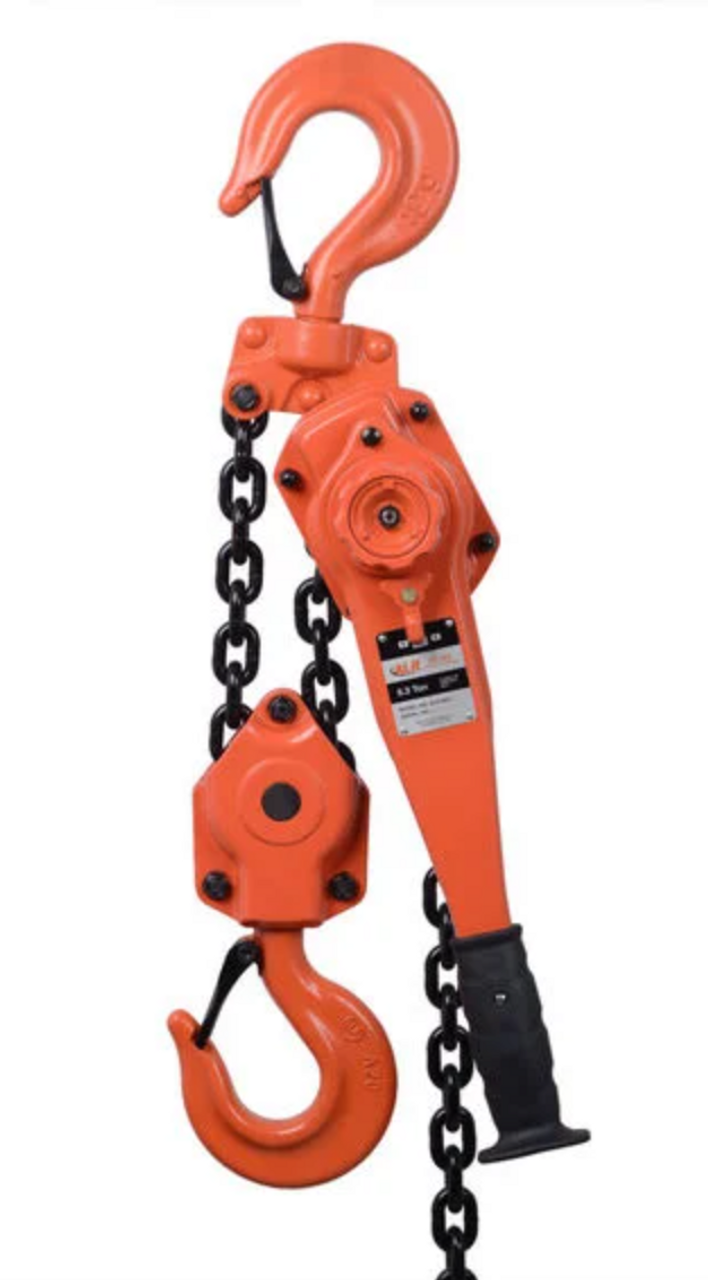

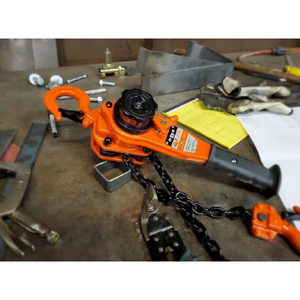

Atlas Lifting and Rigging ALH-063-15-OP Lever Hoist with Overload Protection
The ALH-063-15-OP lever hoist is built to handle high-capacity lifts with added safety and extended reach. With a 6.3-ton working load limit and a 15-foot lift height, this model is designed for demanding industrial applications, such as bridge construction, heavy fabrication, and the maintenance of large-scale equipment.
Featuring a mechanical overload protection system, the hoist automatically disengages when lifting beyond rated capacity—safeguarding both the operator and the hoist. Combined with forged swivel hooks, an ergonomic handle, and a heat-treated alloy load chain, the ALH-063-15-OP provides reliable performance where it matters most.
Key Features:
- 6.3-Ton Load Capacity: Handles large, heavy loads with ease.
- 15-Foot Lift Height: Extended reach for tall or multi-point lifts.
- Mechanical Overload Protection: Integrated slip clutch prevents overloading.
- Free-Chaining Capability: Simplifies rigging by allowing for quick adjustments to the slack chain.

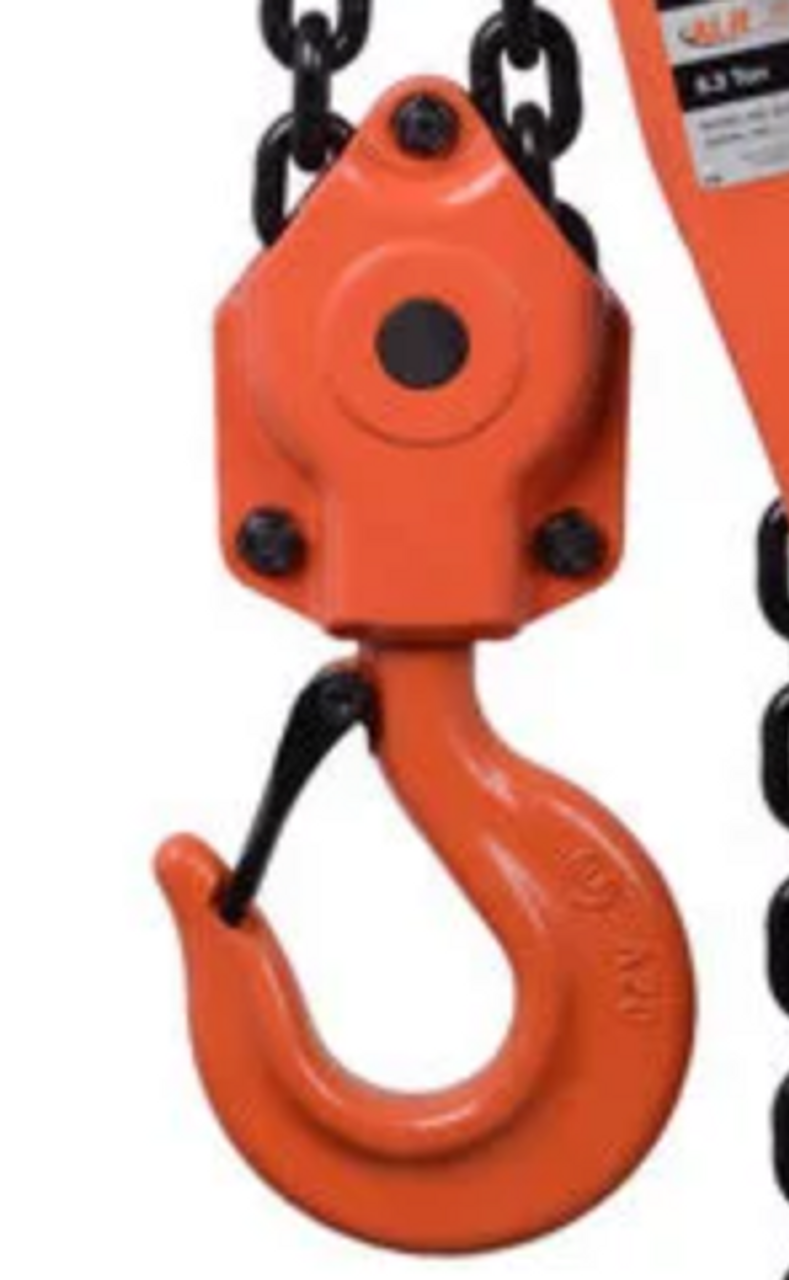

- Forged Swivel Hooks with Safety Latches: Strong, secure, and easy to position.
- Three-Position Selector Switch: Allows for lifting, lowering, and neutral operation.
- Heat-Treated Alloy Steel Chain: High strength with excellent wear resistance.
- Durable Lever Handle: Provides mechanical advantage with operator comfort.
Specifications:
- Model: ALH-063-15-OP
- Capacity: 6.3 Tons (12,600 lbs / 5,715 kg)
- Lift Height: 15 ft (4.6 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 18 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 156 lbs (70.8 kg)
The Atlas ALH-063-15-OP is the lever hoist of choice when your application calls for serious lifting strength, extended lift distance, and built-in safety for heavy-duty performance.
