Product Overview

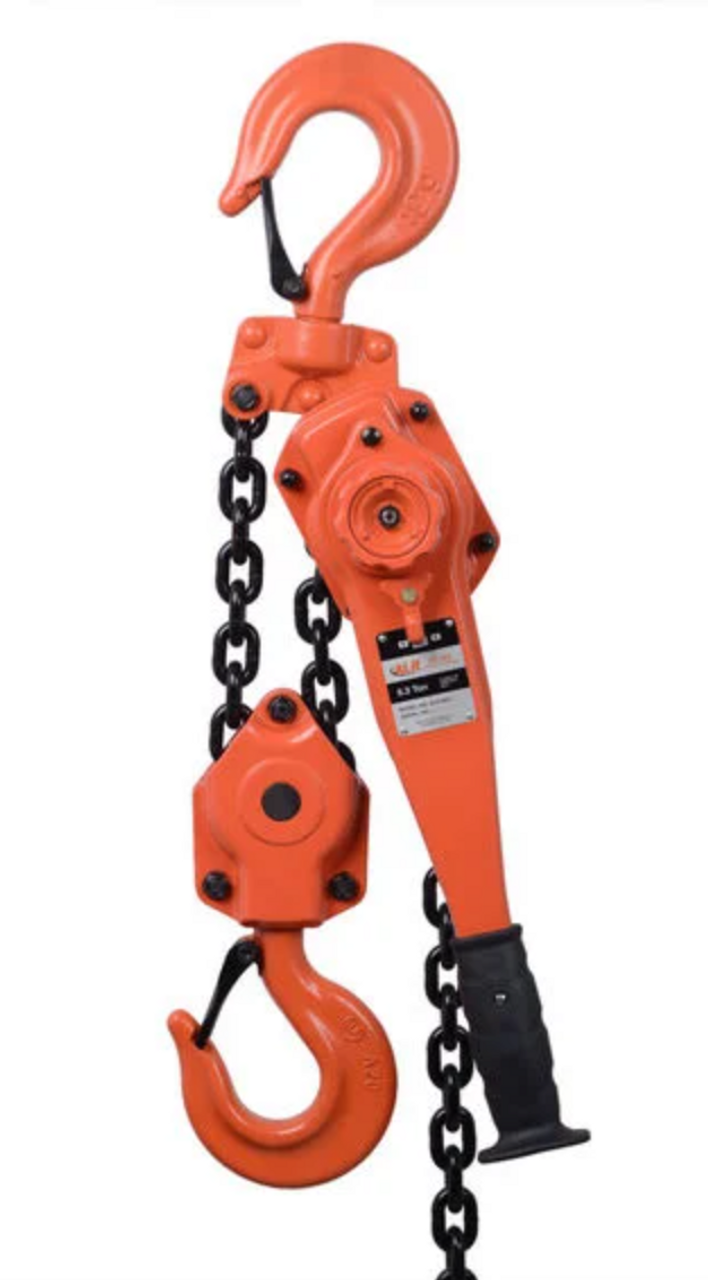

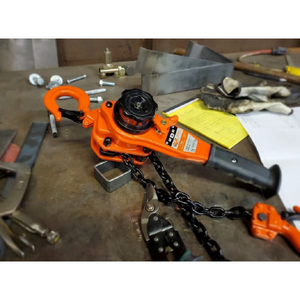

Atlas Lifting and Rigging ALH-063-20-OP Lever Hoist with Overload Protection
Designed for high-capacity lifts with added safety assurance, the ALH-063-20-OP lever hoist delivers strength, control, and protection for heavy-duty rigging environments. With a 6.3-ton load rating and an extended 20-foot lift height, this hoist is designed for large-scale applications, including structural steel assembly, shipyards, and industrial maintenance operations.
Equipped with integrated mechanical overload protection, this model safeguards against excessive loading by automatically disengaging the lifting motion beyond its rated capacity—ensuring operator safety and preventing damage to the equipment. Combined with rugged steel construction, heat-treated alloy chain, and forged swivel hooks, the ALH-063-20-OP is ready for demanding conditions.
Key Features:
- 6.3-Ton Capacity: Built for serious industrial lifting tasks.
- 20-Foot Lift Height: Provides extended reach for complex rigging setups.
- Mechanical Overload Protection: Slip clutch engages when rated capacity is exceeded.
- Free-Chaining Capability: Allows for quick slack chain adjustment during setup.

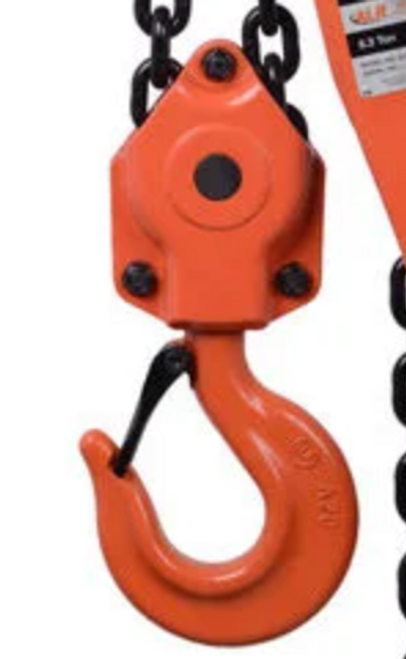

- Forged Swivel Hooks with Safety Latches: Secure and flexible load connections.
- Three-Position Selector: Enables lifting, lowering, and neutral positioning.
- Heat-Treated Alloy Steel Chain: Offers superior strength and durability.
- Heavy-Duty Lever Handle: Provides ergonomic grip and consistent control.
Specifications:
- Model: ALH-063-20-OP
- Capacity: 6.3 Tons (12,600 lbs / 5,715 kg)
- Lift Height: 20 ft (6.1 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 18 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 190 lbs (86.2 kg)
The Atlas ALH-063-20-OP lever hoist is the trusted solution for professionals who require maximum lifting power, extended height, and built-in safety in a single, rugged package.
