Product Overview

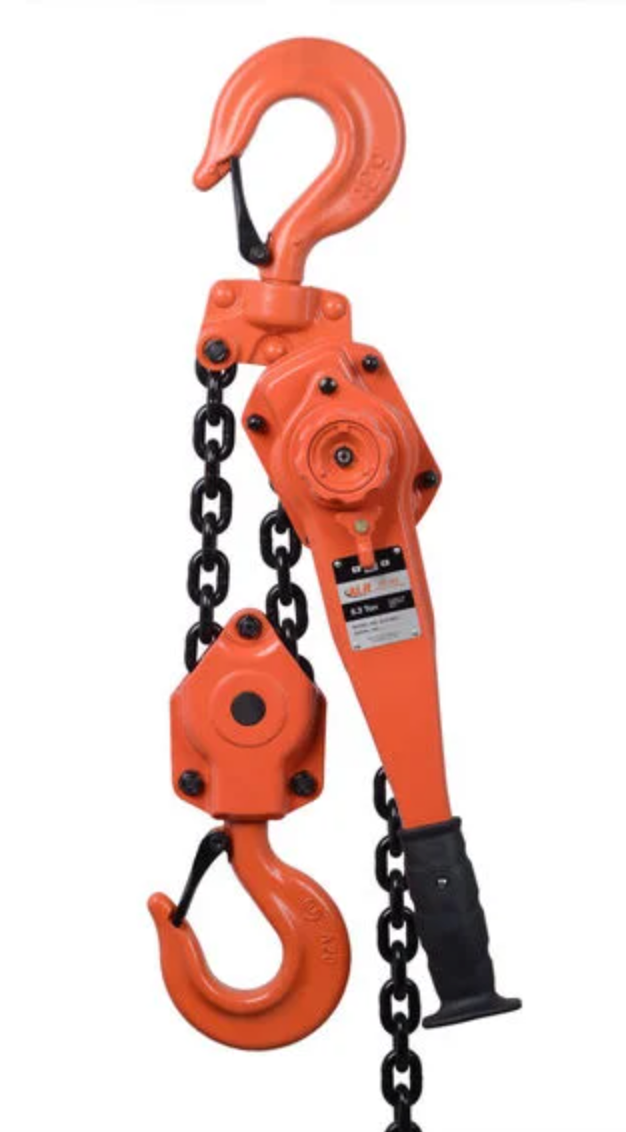

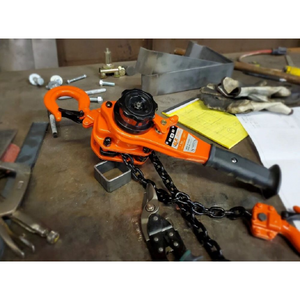

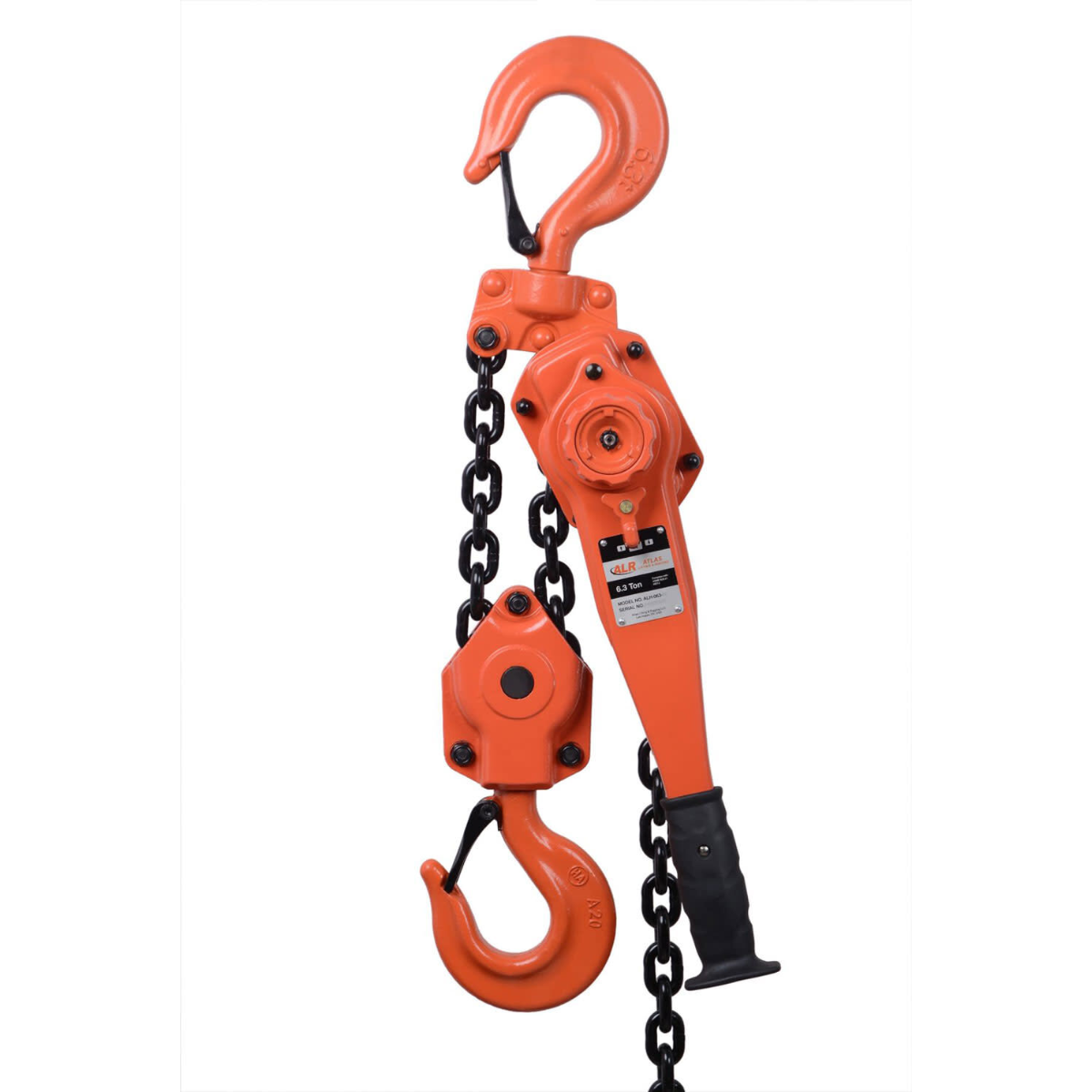

Atlas Lifting and Rigging ALH-063-20 Lever Hoist
The ALH-063-20 lever hoist delivers industrial-grade strength and reach for jobs that demand maximum lifting power and extended chain length. With a 6.3-ton working load limit and a 20-foot lift height, this model is ideal for infrastructure projects, plant maintenance, steel erection, and other high-reach applications where safety and efficiency are critical.
Engineered with a rugged steel body, forged swivel hooks, and a heat-treated alloy load chain, the ALH-063-20 offers dependable lifting performance and durability. The free-chaining design and three-position selector provide smooth and precise operation in any rigging scenario.
Key Features:
- 6.3-Ton Load Capacity: Handles the most demanding industrial lifts with confidence.
- 20-Foot Lift Height: Long lift range for large-scale or elevated rigging setups.
- Free-Chaining Mechanism: Makes slack chain adjustment fast and easy.
- Forged Swivel Hooks with Safety Latches: Ensure strong, secure attachment points.
- Three-Position Selector Switch: For lift, lower, and neutral operation modes.
- Heat-Treated Alloy Steel Load Chain: Designed for strength and long service life.
- Heavy-Duty Lever Handle: Provides mechanical advantage and operator control.
Specifications:
- Model: ALH-063-20
- Capacity: 6.3 Tons (12,600 lbs / 5,715 kg)
- Lift Height: 20 ft (6.1 m)
- Overload Protection: Not included
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 18 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 188 lbs (85.3 kg)
The Atlas ALH-063-20 is the go-to lever hoist for professionals who need extra reach, serious lifting capacity, and durable construction to get the job done right—every time.
