Product Overview

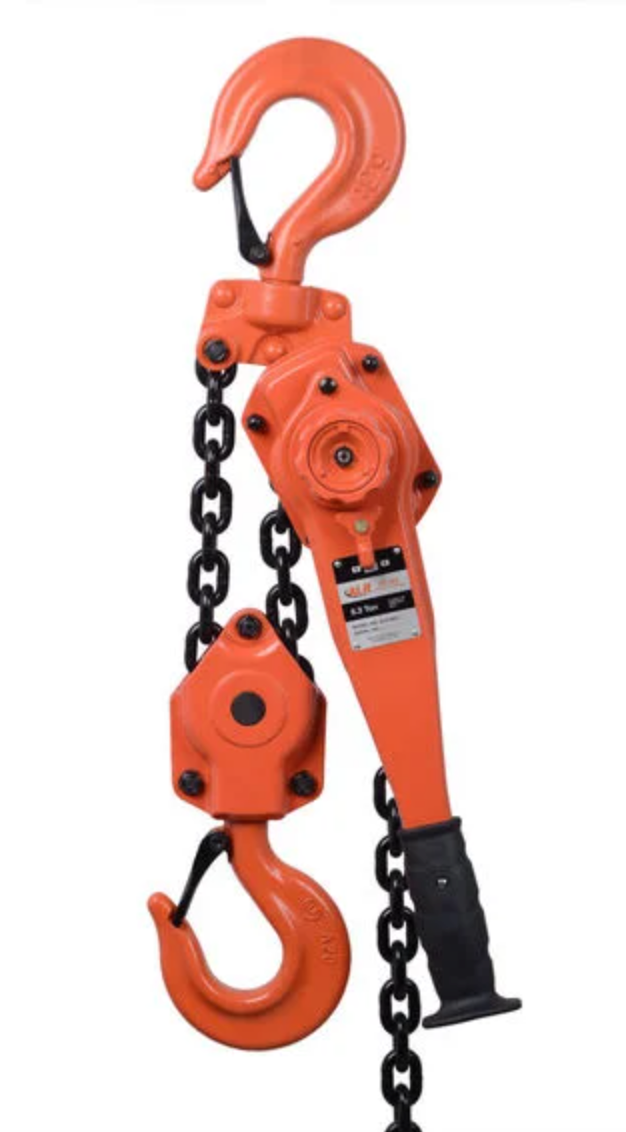

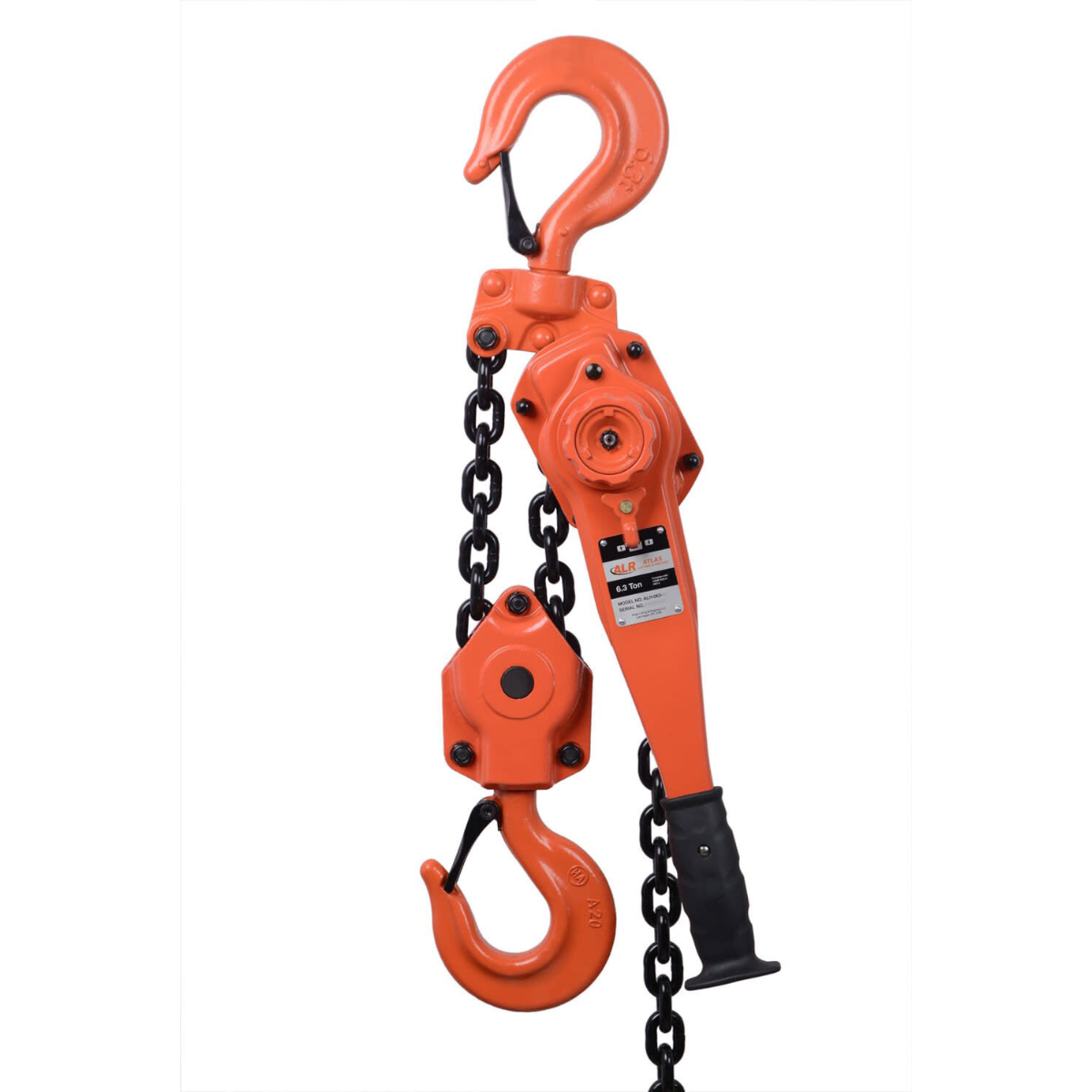

Atlas Lifting and Rigging ALH-063-15 Lever Hoist
The ALH-063-15 is a high-capacity lever hoist designed for long-reach lifting and secure, dependable performance in industrial and construction settings. With a 6.3-ton load capacity and an extended 15-foot lift height, this hoist is ideal for large-scale rigging operations, heavy equipment handling, and structural steel erection where additional chain length is required.
Built from high-strength materials, including a rugged steel frame and alloy load chain, the ALH-063-15 is equipped with forged swivel hooks, a durable lever handle, and a free-chaining mechanism for efficient slack chain management. Whether in the field or on the shop floor, it delivers the power and precision required for your most demanding lifts.
Key Features:
- 6.3-Ton Capacity: Designed for heavy industrial lifting applications.
- 15-Foot Lift Height: Ideal for extended vertical lifts or when working at height.
- Free-Chaining Mechanism: Allows for quick adjustments and fast rigging setup.
- Forged Swivel Hooks with Safety Latches: Provide secure, load-rated attachment points.
- Three-Position Selector Switch: Enables smooth lifting, lowering, and neutral operation.
- Heat-Treated Alloy Steel Load Chain: Resists wear and provides long service life.
- Heavy-Duty Lever Handle: Provides strong mechanical leverage and ergonomic grip.
Specifications:
- Model: ALH-063-15
- Capacity: 6.3 Tons (12,600 lbs / 5,715 kg)
- Lift Height: 15 ft (4.6 m)
- Overload Protection: Not included
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 18 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 154 lbs (69.9 kg)
The Atlas ALH-063-15 delivers trusted lifting performance over longer distances, making it the right tool for professionals who need durability, control, and reach in a high-capacity lever hoist.
