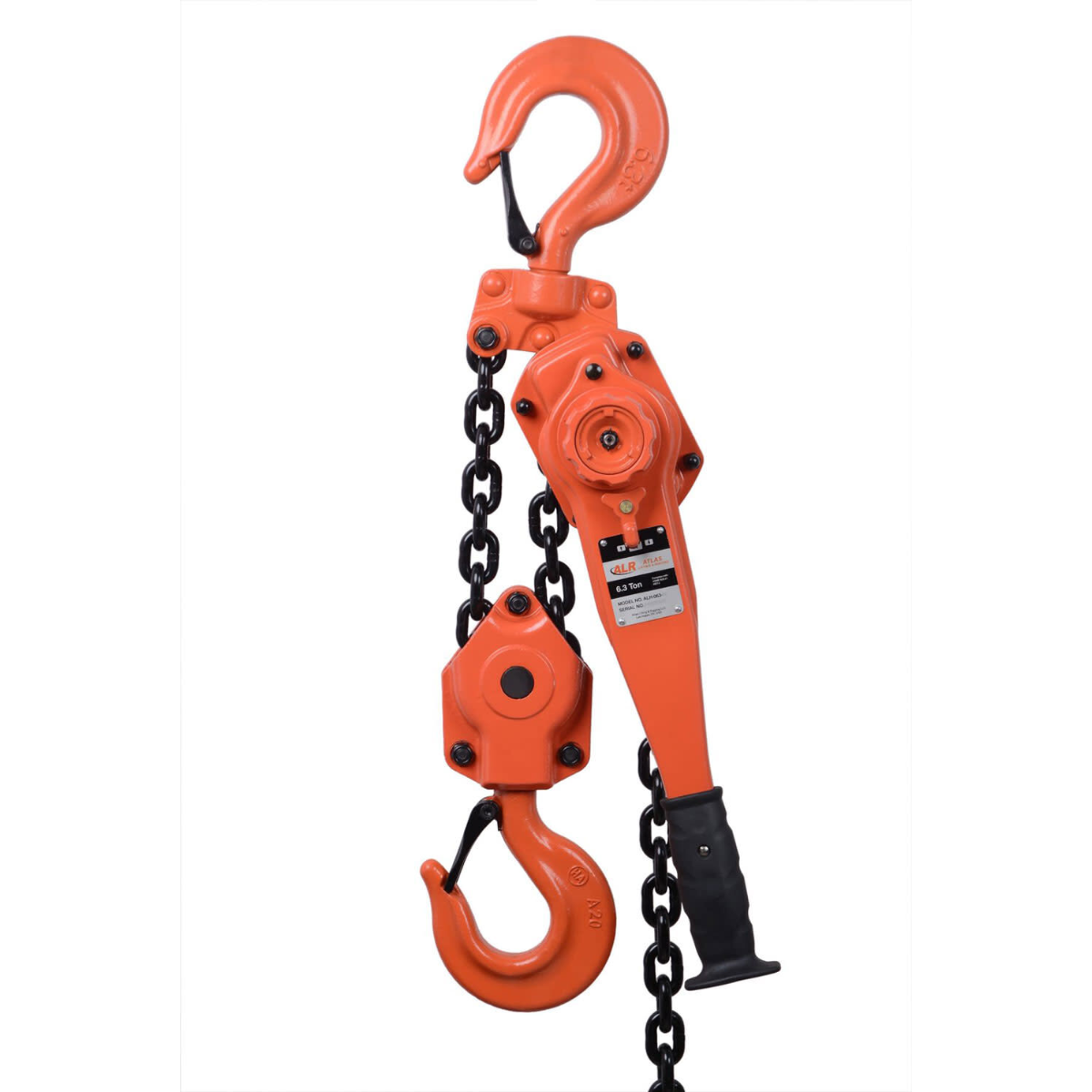

Atlas Lifting and Rigging ALH 6.3 Ton Lever Chain Hoist 10 Ft. Chain 13890 lbs

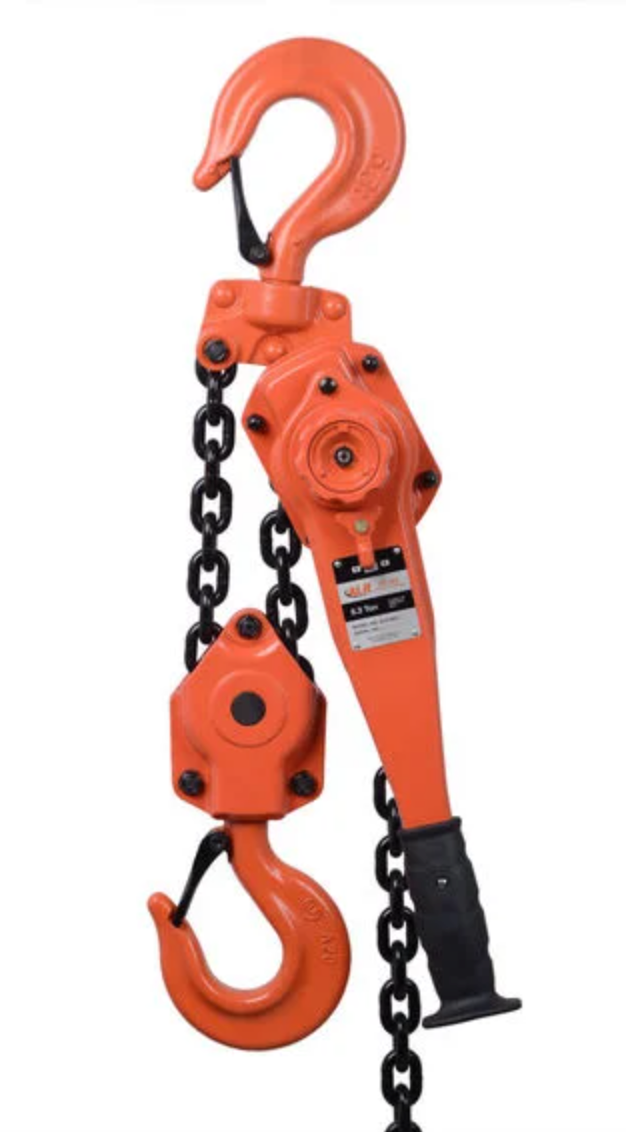

Atlas Lifting and Rigging ALH-063-10 Lever Hoist

The ALH-063-10 lever hoist offers serious lifting power with extended reach, making it ideal for demanding industrial and construction applications. With a 6.3-ton working load limit and a 10-foot lift height, this model is designed to safely and efficiently move heavy equipment, structural components, and other oversized loads.

This heavy-duty hoist features a forged steel body, a heat-treated alloy steel load chain, and forged swivel hooks with safety latches, ensuring optimal performance and reliability. The free-chaining mechanism and three-position selector allow quick setup and smooth control during lifting and lowering.

Key Features:

• 6.3-Ton Load Capacity: High-performance lifting for large-scale rigging operations.
• 10-Foot Lift Height: Increased range for higher or multi-point lift configurations.
• Free-Chaining Capability: Quickly take up or release slack in the chain during positioning.
• Forged Swivel Hooks with Safety Latches: Ensure secure and flexible attachment points.
• Three-Position Selector Switch: Allows simple switching between lift, lower, and neutral.
• Heat-Treated Alloy Steel Chain: Durable and corrosion-resistant for long-term use.
• Robust Lever Handle: Ergonomically designed for operator comfort and mechanical advantage.

Specifications:

• Model: ALH-063-10
• Capacity: 6.3 Tons (12,600 lbs / 5,715 kg)
• Lift Height: 10 ft (3.0 m)
• Overload Protection: Not included
• Hook Type: Forged swivel hooks with safety latches
• Load Chain: Heat-treated alloy steel
• Lever Handle Length: Approx. 18 inches
• Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Net Weight: Approx. 120 lbs (54.4 kg)

The Atlas ALH-063-10 offers heavy-duty lifting power with an extended lift range, making it a trusted solution for professionals in high-load, high-reach applications.
