Product Overview

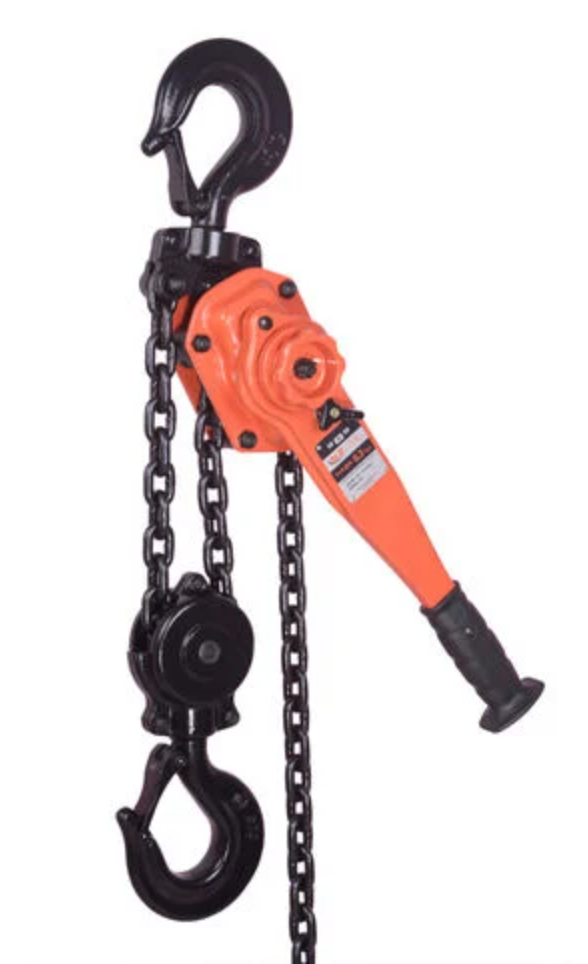

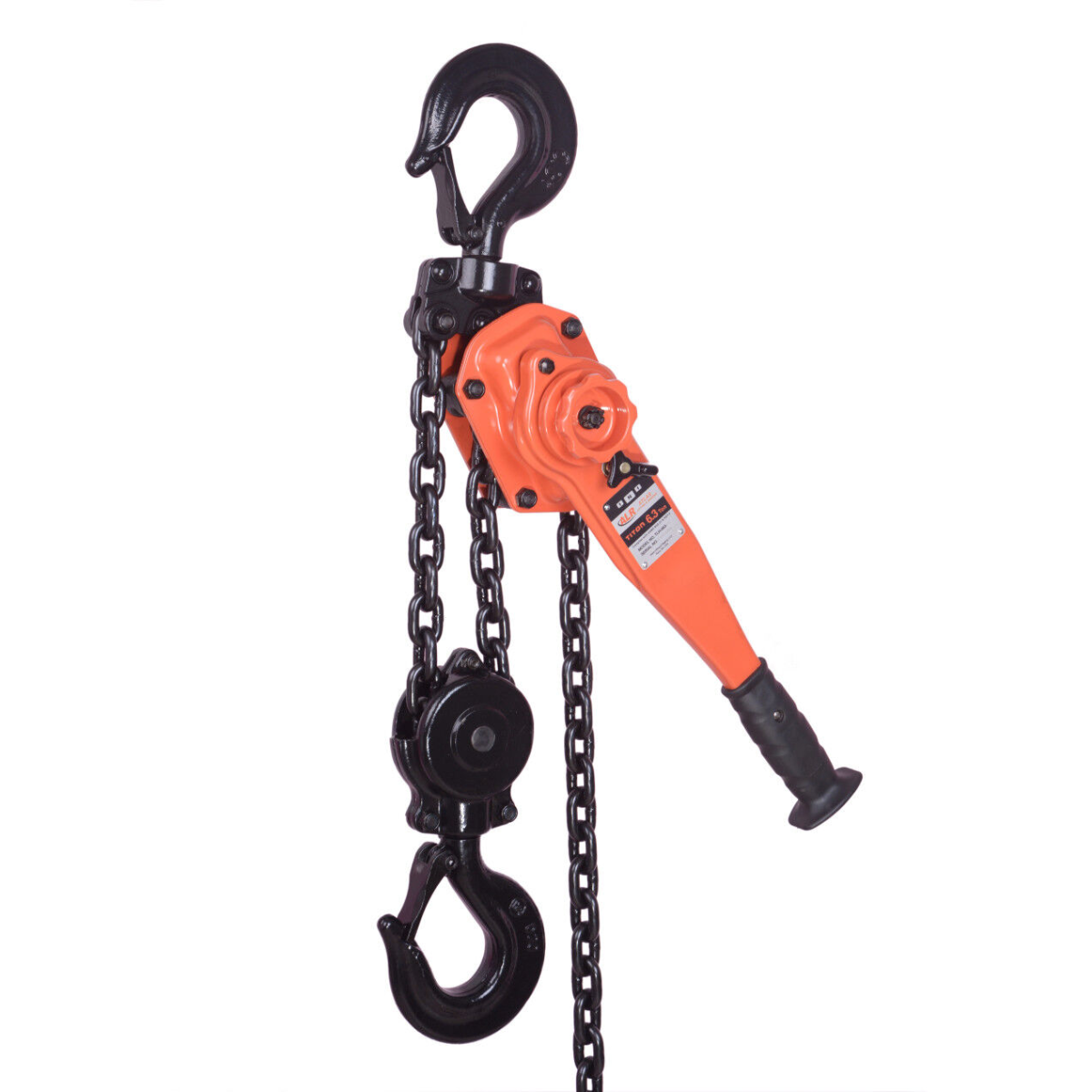

Atlas Titon Lever Hoist – TLH-063-20
6.3 Ton Capacity | 20-Foot Lift
The Atlas TLH-063-20 Titon Lever Hoist is engineered for high-capacity, extended-reach lifting tasks in demanding industrial environments. With a rated working load limit of 6.3 tons (13,900 lbs) and a 20-foot lift height, this heavy-duty hoist is built for large-scale operations such as structural steel assembly, heavy machinery positioning, and utility work. Its durable steel construction, advanced mechanical braking system, and industrial-grade load chain ensure safe and reliable performance under extreme loads.
Features
- High-Capacity Lifting: Designed to lift up to 6.3 tons (13,900 lbs), making it suitable for the most challenging industrial applications.
- Extended 20-Foot Lift: Fitted with a 20-foot length of Grade 100 black oxide alloy chain to accommodate elevated and remote lifting positions.

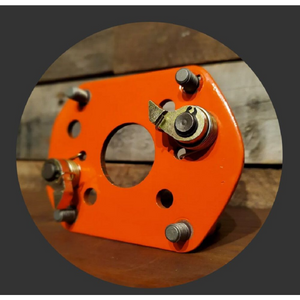

- Mechanical Load Control: Features a Weston-style brake system with dual ratchet pawls, offering positive load holding and smooth, controlled operation.

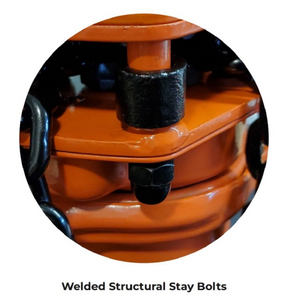

- All-Steel Housing: A complete steel body construction with a corrosion-resistant, powder-coated finish ensures long-term durability in harsh working environments.
- Safety Hooks: The steel upper and lower hooks include spring-loaded safety latches and deformation indicators to ensure safe rigging practices.

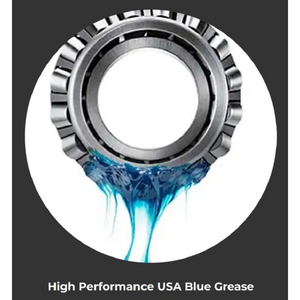

- Low-Friction Bearings: Caged roller bearings reduce resistance during lifting and lowering, allowing efficient and low-maintenance operation.
- Ergonomic Handle: The lever handle is designed for operator comfort and control, even during extended or repetitive use.
Specifications
- Model: TLH-063-20
- Brand: Atlas Lifting & Rigging
- Rated Capacity: 6.3 Ton (13,900 lbs)
- Lift Height: 20 ft
- Load Chain: Grade 100 alloy steel
- Chain Finish: Black oxide
- Brake Type: Weston-style mechanical brake with dual pawls
- Hooks: Forged steel, swivel-type with safety latches
- Housing Construction: All-steel, powder-coated finish
- Color: Industrial orange
- Overall Dimensions:
- Height: 19.88 in
- Width: 9.29 in
- Depth: 5.63 in
- Weight: Approximately 119.50 lbs
- Standards Compliance: Conforms to ASTM B30.21
- Warranty: 3-Year Limited
- Country of Origin: China
The TLH-063-20 is a proven solution for professionals requiring maximum strength and lift height. It delivers safe and consistent performance across a range of heavy-duty lifting operations, where precision and reliability are needed.
