Product Overview

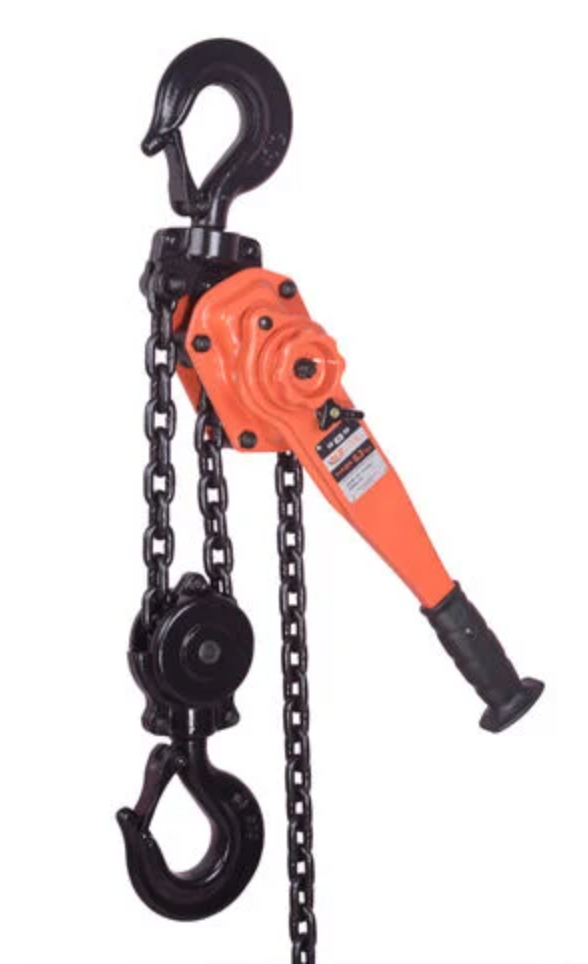

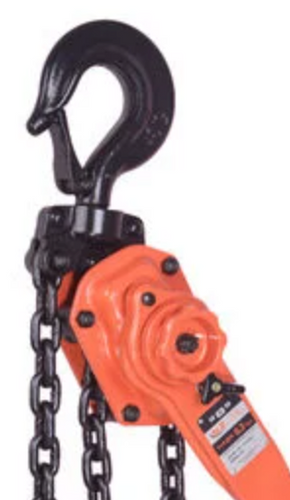

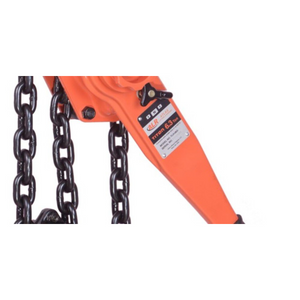

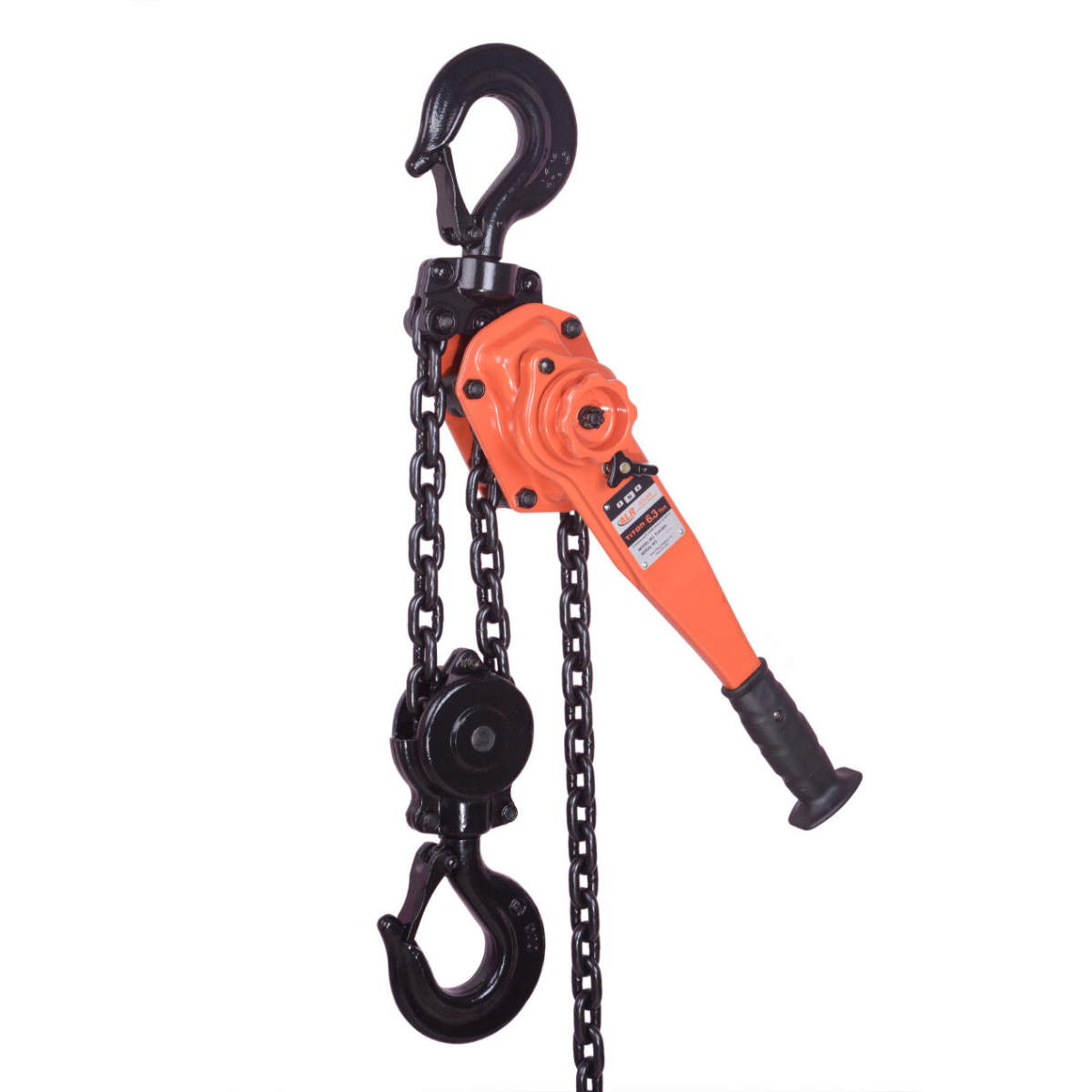

Atlas Titan Lever Hoist – TLH-063-05
6.3 Ton Capacity | 5-Foot Lift
The Atlas TLH-063-05 Titan Lever Hoist is a powerful and rugged lifting solution built for the most demanding industrial applications. With a rated capacity of 6.3 tons (13,900 lbs) and a standard lift height of 5 feet, this hoist is ideal for use in construction, heavy equipment maintenance, rigging, and utility work. Constructed from high-grade materials and engineered for precision control, it combines strength, safety, and durability in one compact design.
Features
- Heavy-Duty Capacity: Handles up to 6.3 tons (13,900 lbs), suitable for large-scale lifting requirements.
- Durable Load Chain: Features a black oxide, Grade 100 alloy steel load chain for maximum strength and corrosion resistance.
- Secure Braking System: Equipped with a Weston-style mechanical brake and dual ratchet pawls to ensure reliable load holding under tension.
- Forged Safety Hooks: The top and bottom hooks are made of forged steel, featuring safety latches and deformation indicators for secure load engagement.
- Sealed Bearings: Caged roller bearings provide smooth operation, reduced wear, and minimal maintenance.
- Rugged Steel Construction: Built with a fully enclosed, all-steel housing to withstand impact and harsh environments.
- Ergonomic Lever Handle: Designed for operator comfort and precise load control, even in confined spaces.
Specifications
- Model: TLH-063-05
- Brand: Atlas Lifting & Rigging
- Rated Capacity: 6.3 Ton (13,900 lbs)
- Standard Lift Height: 5 ft
- Load Chain Material: Grade 100 alloy steel
- Chain Finish: Black oxide
- Hook Material: Drop-forged steel with latches
- Brake Type: Weston-style mechanical system
- Housing: All-steel, powder-coated orange finish
- Dimensions:
- Height: 19.88 in
- Width: 9.29 in
- Depth: 5.63 in
- Weight: Approximately 65.92 lbs
- Standards Compliance: Meets ASTM B30.21
- Warranty: 3-Year Limited
- Country of Origin: China
The TLH-063-05 is designed for professionals who need maximum lifting power, mechanical reliability, and uncompromising safety in a compact lever hoist. Ideal for high-load applications where strength and performance are critical.
