Atlas Lifting and Rigging Titon 6.3 Ton Lever Hoist 13890 lbs 15 Ft. Chain

Write a Review
$1,126.79
SKU: TLH-063-15
Availability: In stock
Weight: 97.46 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

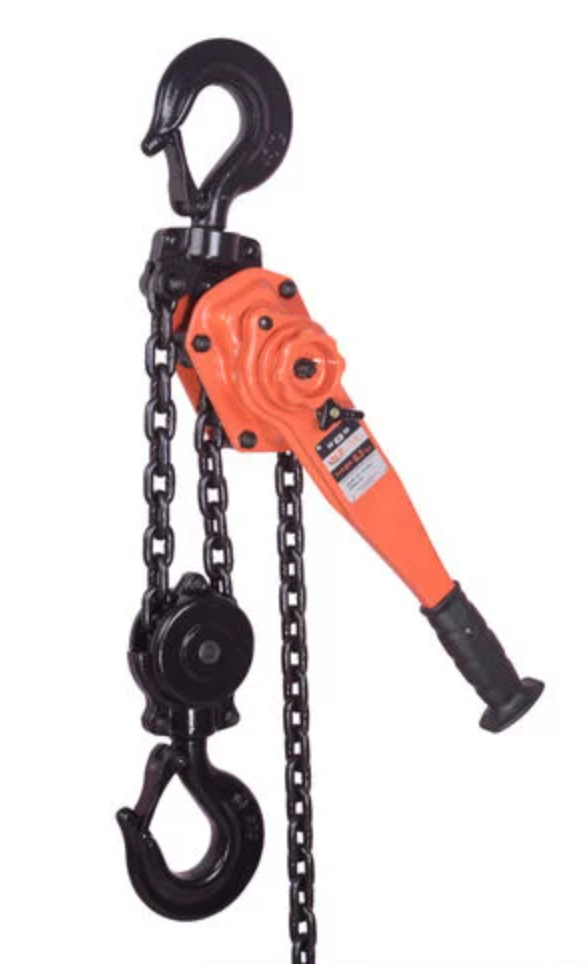

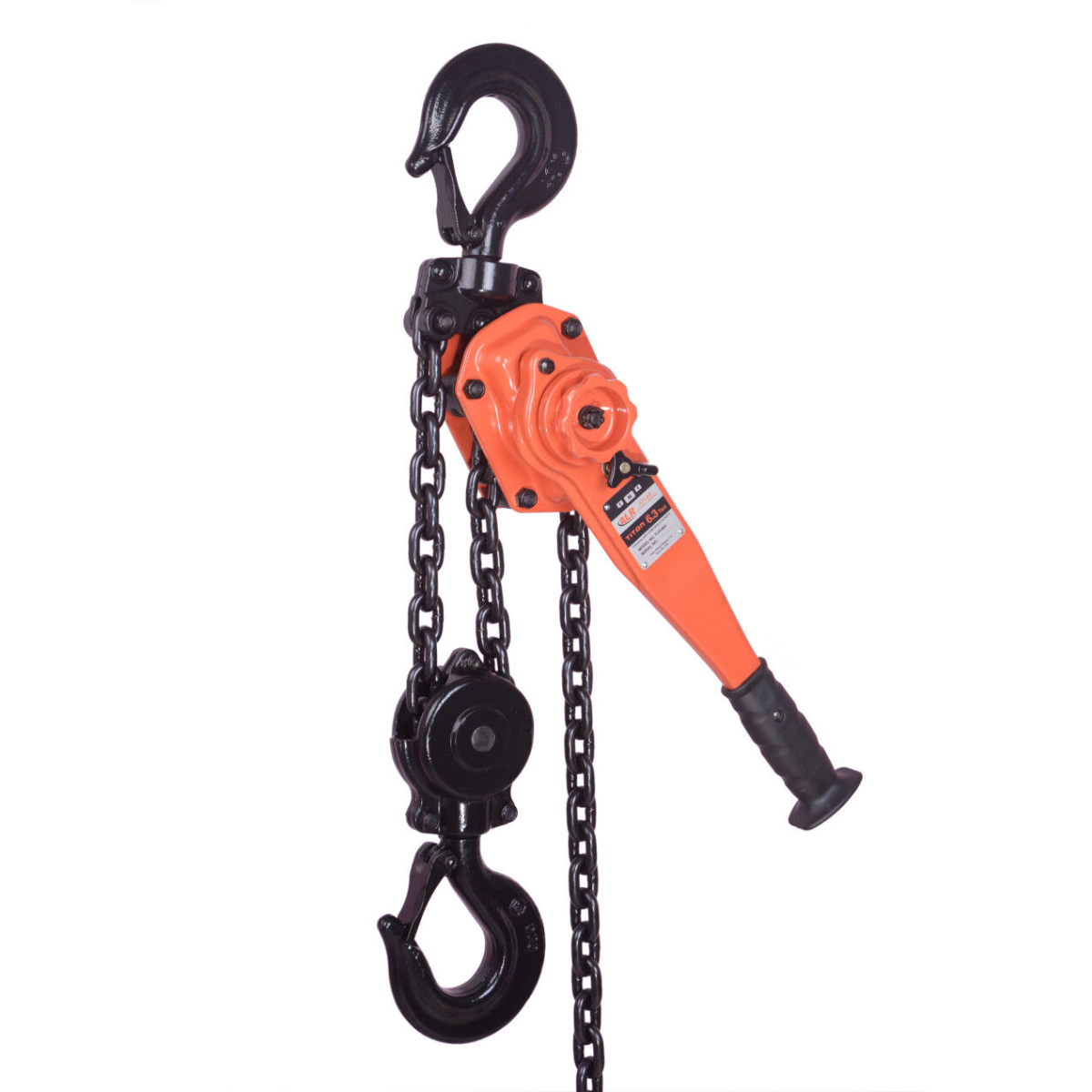

Atlas Titan Lever Hoist – TLH-063-15

6.3 Ton Capacity | 15-Foot Lift

The Atlas TLH-063-15 Titan Lever Hoist is purpose-built for demanding lifting operations that require both strength and extended reach. With a maximum working load limit of 6.3 tons (13,900 lbs) and a 15-foot lift height, this hoist is ideal for industrial environments where safety, durability, and precise load handling are critical. Engineered with premium components, including a high-tensile alloy steel chain, forged steel hooks, and a dual pawl Weston-style braking system, the TLH-063-15 ensures dependable performance under the most challenging conditions.

Features

  • Industrial-Grade Lifting Power: Rated for 6.3 tons (13,900 lbs), suitable for lifting heavy equipment, structural assemblies, and industrial components.
  • Extended Lifting Range: Supplied with a 15-foot black oxide Grade 100 alloy chain for applications requiring added height and flexibility.
  • Precision Braking System: Incorporates a Weston-style mechanical load brake with dual ratchet pawls for smooth, controlled lifting and secure load holding.
  • Rugged Construction: All-steel housing and zinc-coated internal components offer resistance to corrosion, impact, and wear.
  • High-Strength Forged Hooks: Top and bottom hooks are drop-forged with integrated safety latches and deformation indicators for added security.
  • Smooth Operation: Caged roller bearings support efficient chain movement, reducing operator effort and extending service life.
  • Ergonomic Lever Handle: Designed for operator comfort and reliable control, even in tight or elevated working conditions.

Specifications

  • Model: TLH-063-15
  • Brand: Atlas Lifting & Rigging
  • Rated Capacity: 6.3 Ton (13,900 lbs)
  • Lift Height: 15 ft
  • Load Chain: Grade 100 alloy steel, black oxide finish
  • Brake Type: Weston-style mechanical with dual ratchet pawls
  • Hook Type: Forged steel with safety latches and deformation indicators
  • Housing Material: All-steel, powder-coated orange
  • Dimensions:
    • Height: 19.88 in
    • Width: 9.29 in
    • Depth: 5.63 in
  • Weight: Approximately 101.65 lbs
  • Compliance: Conforms to ASTM B30.21
  • Warranty: 3-Year Limited
  • Country of Origin: China

The TLH-063-15 is a reliable solution for professionals who require high-capacity lifting capability, extended lift range, and uncompromising operational safety. Designed for optimal performance in the field, it meets the demanding requirements of today's industrial and construction environments.
