Product Overview

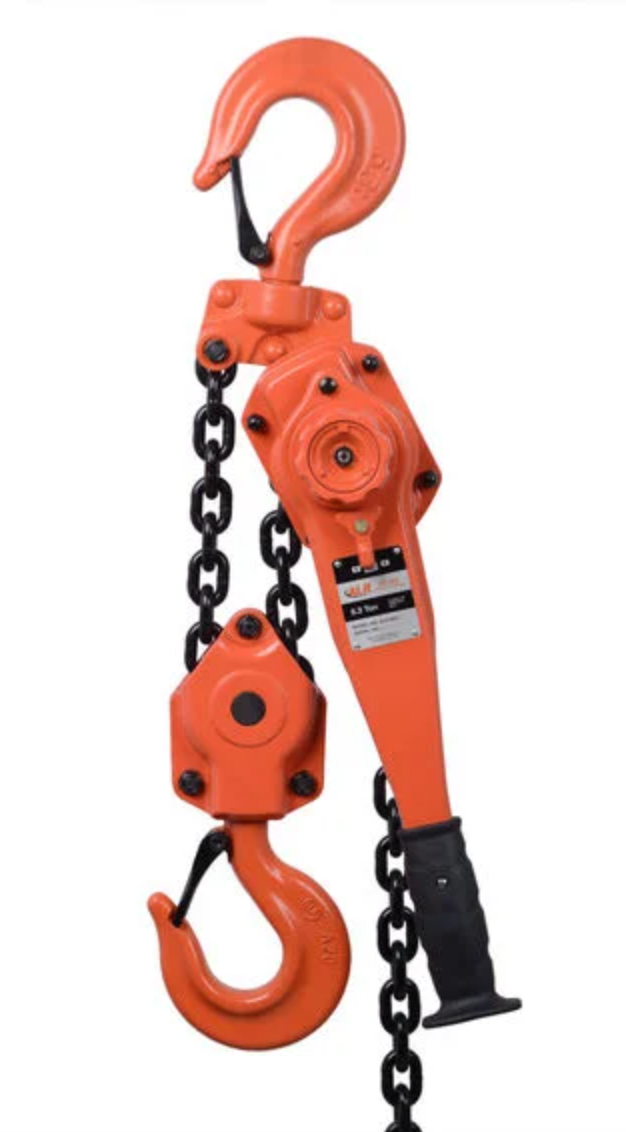

Atlas Lifting and Rigging ALH-063-10-OP Lever Hoist with Overload Protection
The ALH-063-10-OP lever hoist combines high-capacity lifting with advanced safety features for demanding rigging environments. With a 6.3-ton working load limit and a 10-foot lift height, this heavy-duty hoist is built for tough jobs in construction, plant maintenance, heavy manufacturing, and infrastructure work.
Outfitted with an integrated mechanical overload protection system, this model automatically limits force when lifting beyond its rated capacity—reducing the risk of damage to the hoist and surrounding equipment while keeping the operator safe. Durable construction, heat-treated alloy steel chain, and forged swivel hooks make this hoist a reliable tool for critical lifts.
Key Features:
- 6.3-Ton Load Capacity: Engineered for serious industrial lifting tasks.
- 10-Foot Lift Height: Extended reach for vertical or offset lifts.
- Mechanical Overload Protection: Slip clutch prevents lifting loads beyond the rated capacity.
- Free-Chaining Function: Allows fast slack chain adjustment during setup.
- Forged Swivel Hooks with Safety Latches: Provide secure, flexible load connections.
- Three-Position Selector Switch: For lifting, lowering, and neutral positioning.
- Heat-Treated Alloy Steel Chain: Offers excellent wear resistance and strength.
- Ergonomic Lever Handle: Designed for practical use with high-capacity loads.
Specifications:
- Model: ALH-063-10-OP
- Capacity: 6.3 Tons (12,600 lbs / 5,715 kg)
- Lift Height: 10 ft (3.0 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 18 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 122 lbs (55.3 kg)
The Atlas ALH-063-10-OP is the ideal lever hoist when your lifting job demands both power and protection—trusted by professionals for serious lifting applications with built-in safety assurance.
