Product Overview

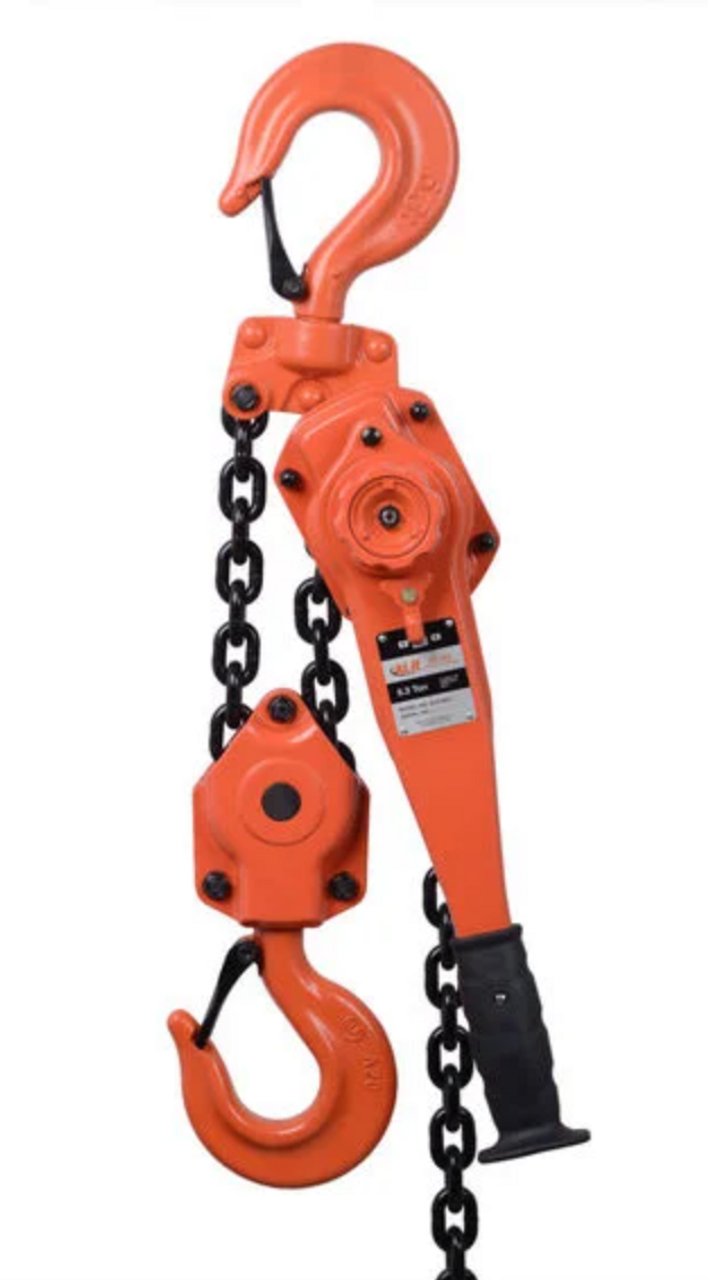

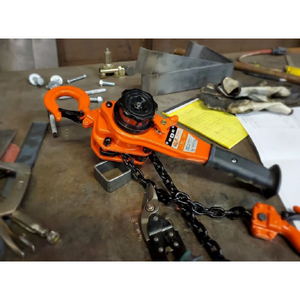

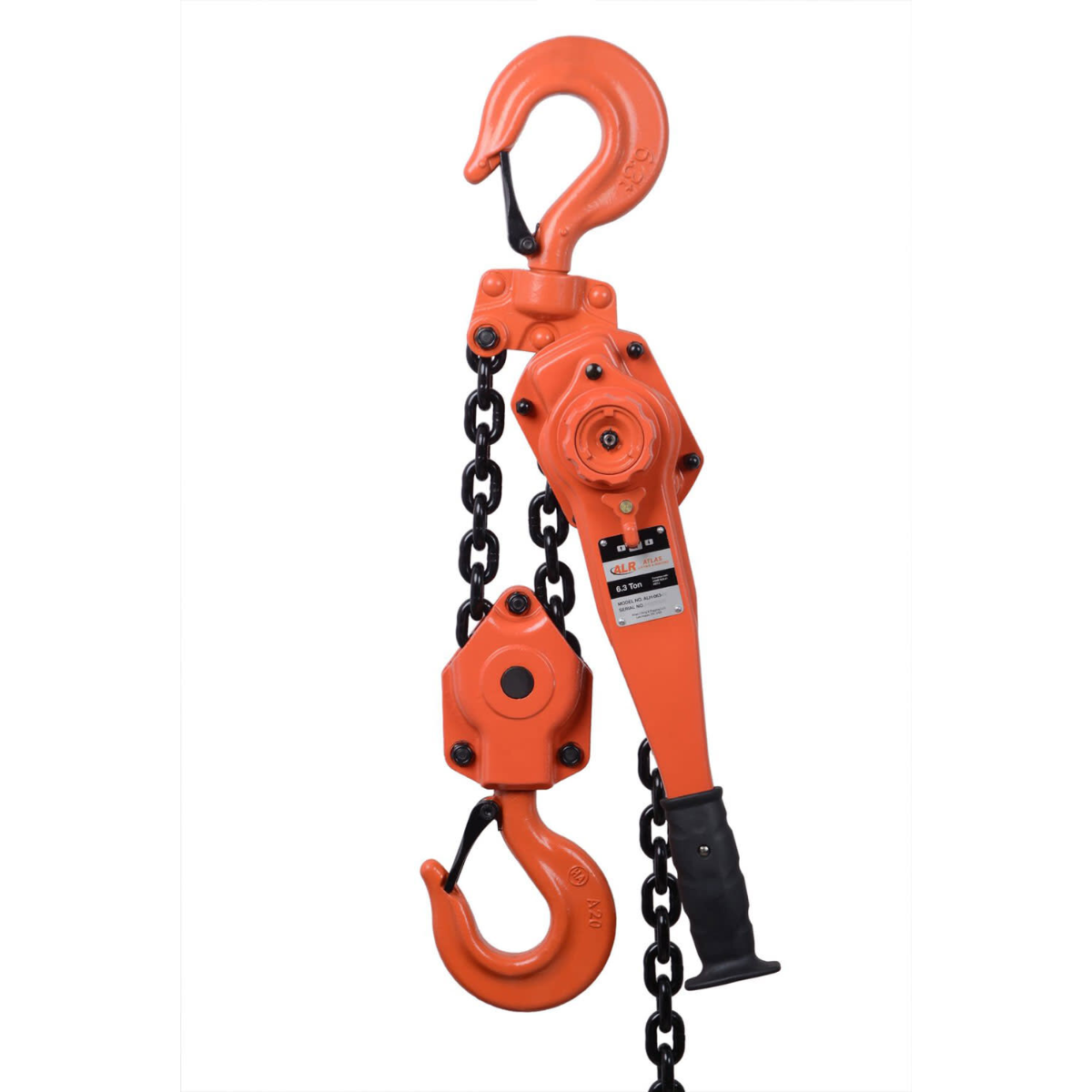

Atlas Lifting and Rigging ALH-063-30-OP Lever Hoist with Overload Protection
The ALH-063-30-OP lever hoist is built for high-stakes lifting scenarios requiring extended reach, exceptional load handling, and enhanced safety. With a 6.3-ton capacity and a 30-foot lift height, this model is engineered for industries such as construction, energy, shipbuilding, and industrial rigging—where long lifts and safety under stress are critical.
Equipped with integrated mechanical overload protection, the hoist automatically prevents operation when load limits are exceeded, reducing risk to both equipment and personnel. Its durable steel construction forged swivel hooks, and high-strength alloy chain make it a trusted tool in the field.
Key Features:
- 6.3-Ton Load Capacity: Handles heavy loads with consistency and control.
- 30-Foot Lift Height: Designed for tall or complex lift configurations.
- Mechanical Overload Protection: Built-in slip clutch guards against overloading.
- Free-Chaining Function: Allows quick slack adjustment for efficient setup.
- Forged Swivel Hooks with Safety Latches: Secure and reliable connections.

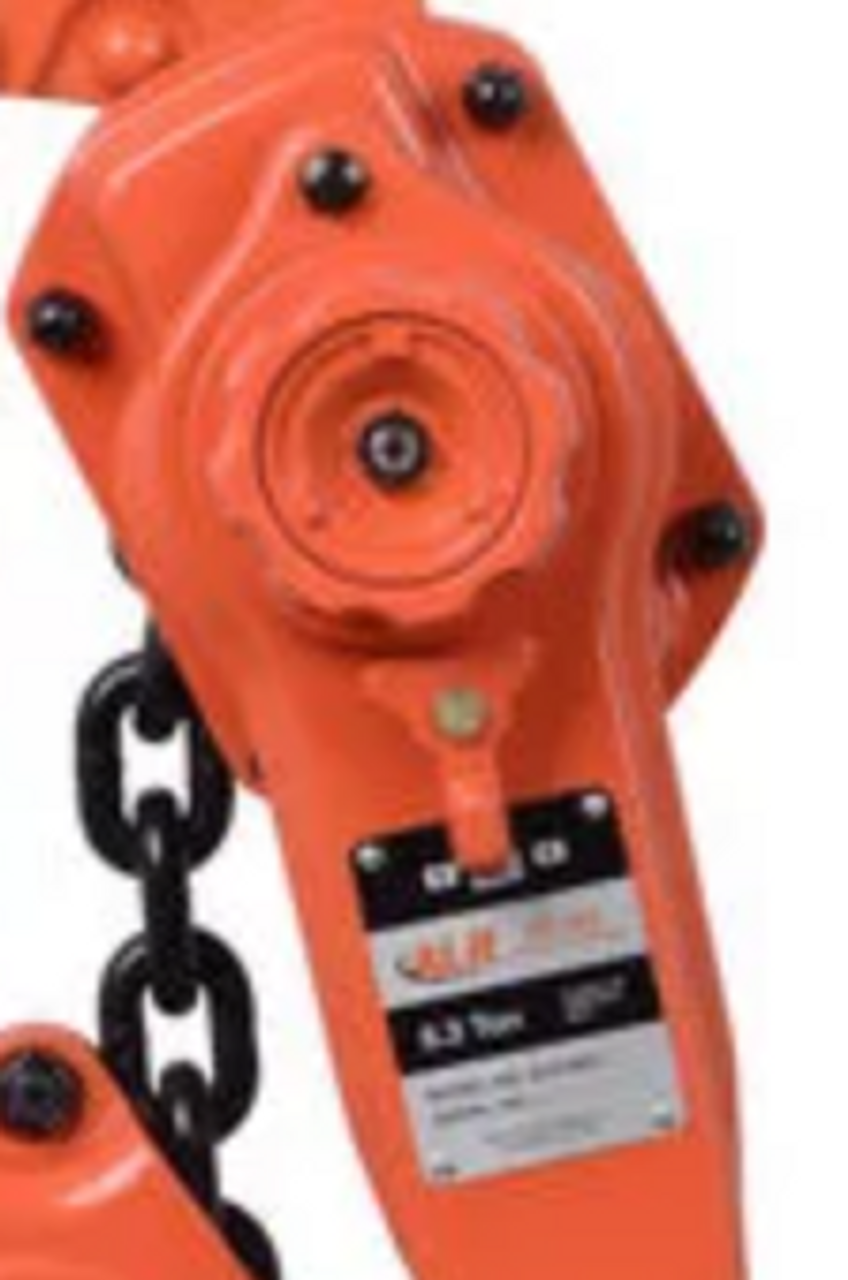

- Three-Position Selector Switch: Simplifies lifting, lowering, and neutral positioning.
- Heat-Treated Alloy Steel Chain: Engineered for strength and longevity.
- Heavy-Duty Lever Handle: Designed for operator comfort and dependable performance.
Specifications:
- Model: ALH-063-30-OP
- Capacity: 6.3 Tons (12,600 lbs / 5,715 kg)
- Lift Height: 30 ft (9.1 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 18 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 252 lbs (114.3 kg)
The Atlas ALH-063-30-OP combines robust lifting power with built-in protection and extended reach—making it the professional’s choice for high-capacity hoisting where safety and performance matter most.
