Product Overview

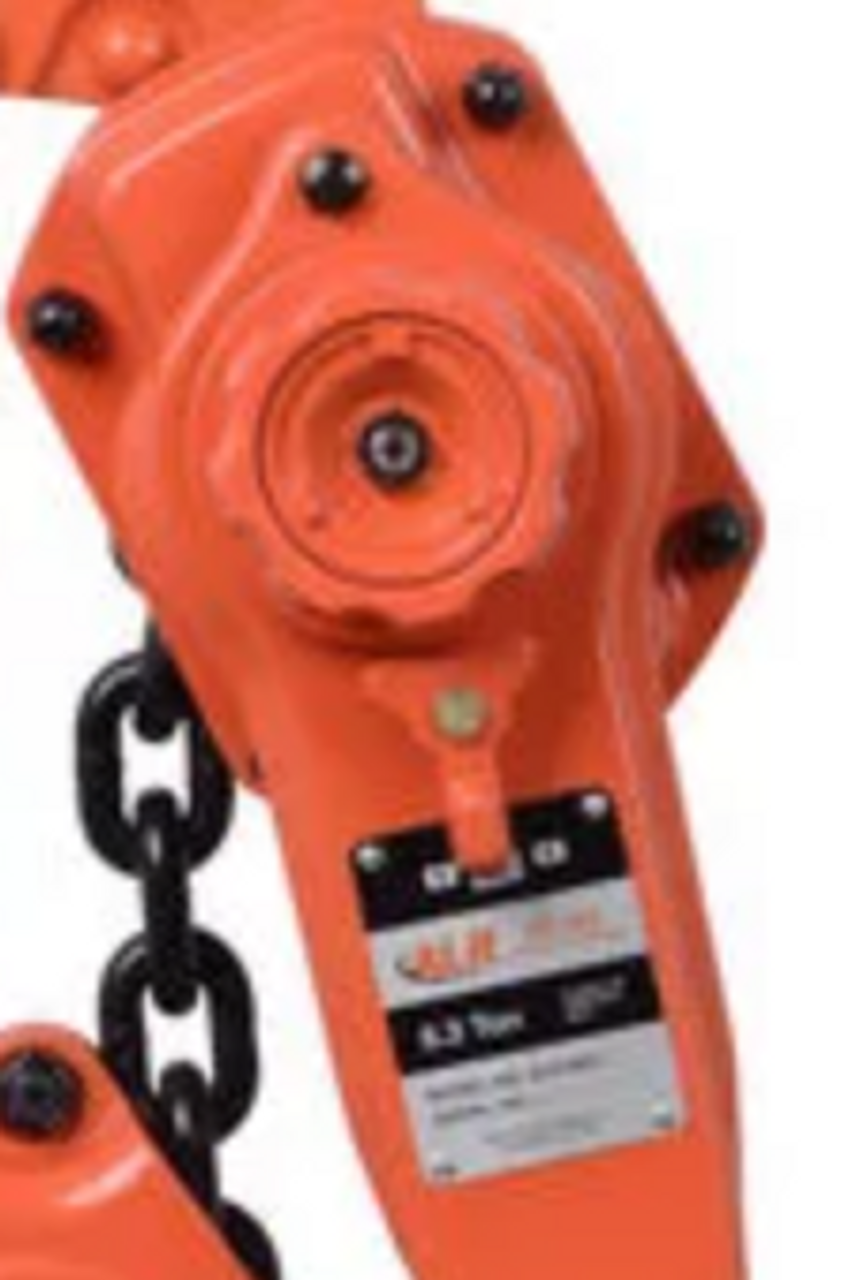

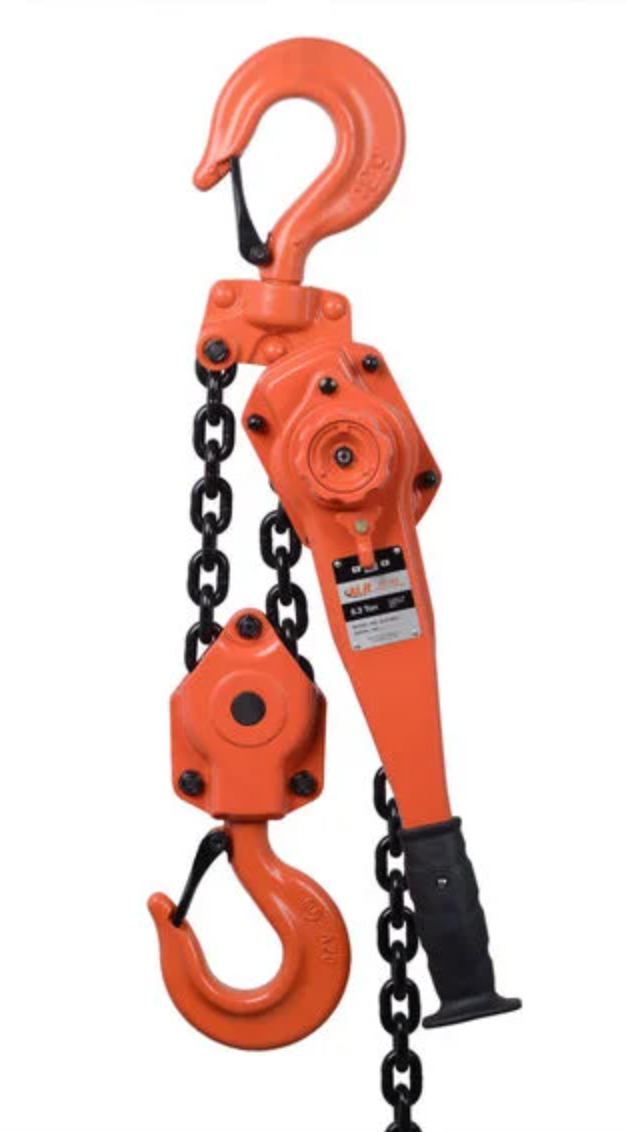

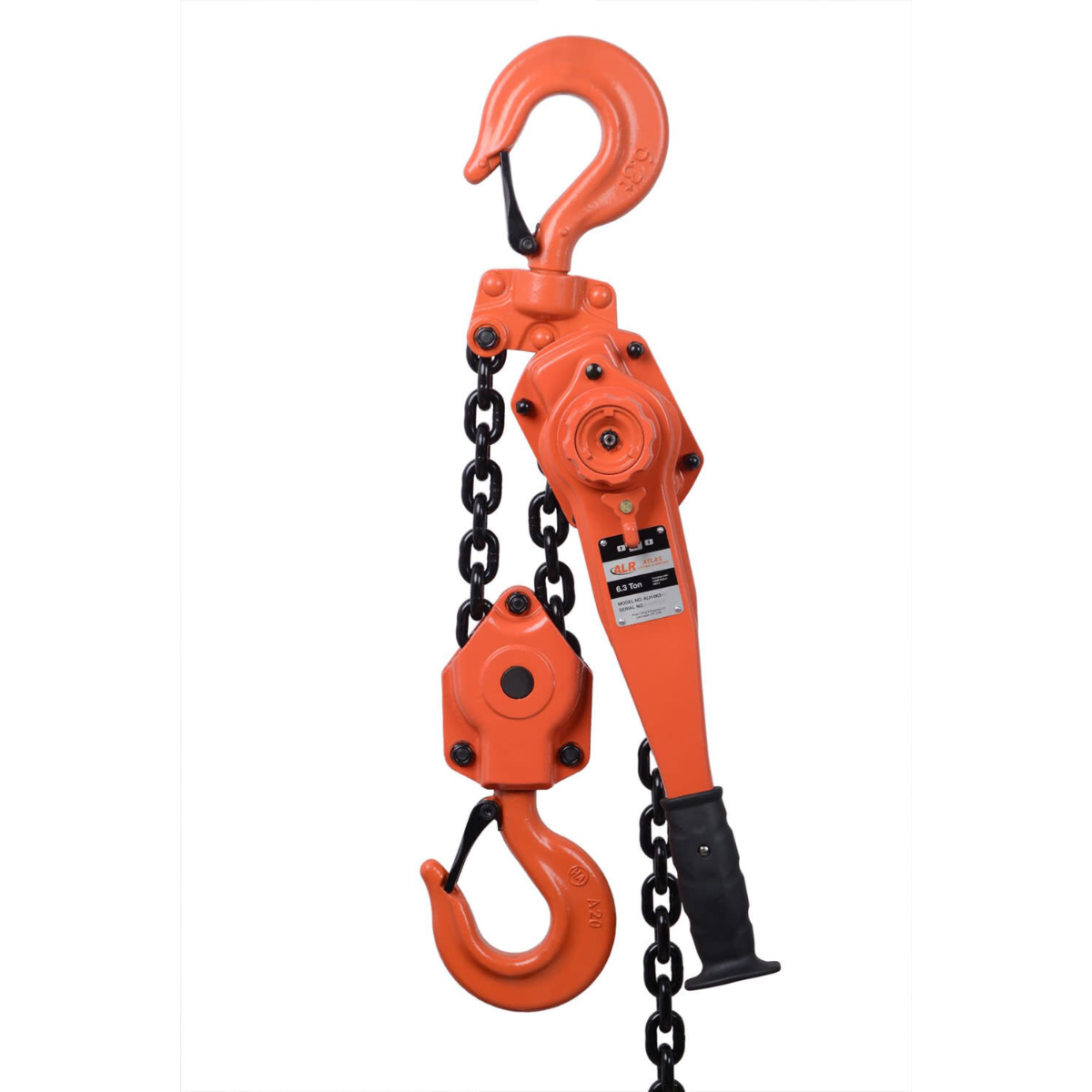

Atlas Lifting and Rigging ALH-063-30 Lever Hoist
The ALH-063-30 lever hoist is engineered for maximum reach and heavy-duty lifting in the most demanding industrial environments. With a 6.3-ton working load limit and an impressive 30-foot lift height, this hoist is ideal for large-scale applications, including infrastructure projects, utility work, and heavy equipment rigging where extended vertical or horizontal lifting is required.
Built to withstand harsh conditions, the ALH-063-30 features a heat-treated alloy steel chain, forged swivel hooks with safety latches, and a robust steel frame. The free-chaining function enables fast and efficient rigging, while the three-position selector ensures smooth lifting, lowering, and neutral operation.
Key Features:
- 6.3-Ton Load Capacity: Heavy lifting capability for industrial-grade tasks.
- 30-Foot Lift Height: Extra-long reach for large equipment and elevated work zones.
- Free-Chaining Mechanism: Enables quick and efficient slack chain adjustment.
- Forged Swivel Hooks with Safety Latches: Secure and adaptable load attachment.
- Three-Position Selector Switch: For precise control of lifting and lowering operations.
- Heat-Treated Alloy Steel Load Chain: Built for high strength and long service life.
- Durable Lever Handle: Offers substantial leverage and ergonomic operation.
Specifications:
- Model: ALH-063-30
- Capacity: 6.3 Tons (12,600 lbs / 5,715 kg)
- Lift Height: 30 ft (9.1 m)
- Overload Protection: Not included
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 18 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 250 lbs (113.4 kg)
The Atlas ALH-063-30 is the solution when your lifting application requires extended height, extreme durability, and uncompromising strength—making it a dependable choice for professionals who handle the toughest lifting jobs.
