Product Overview

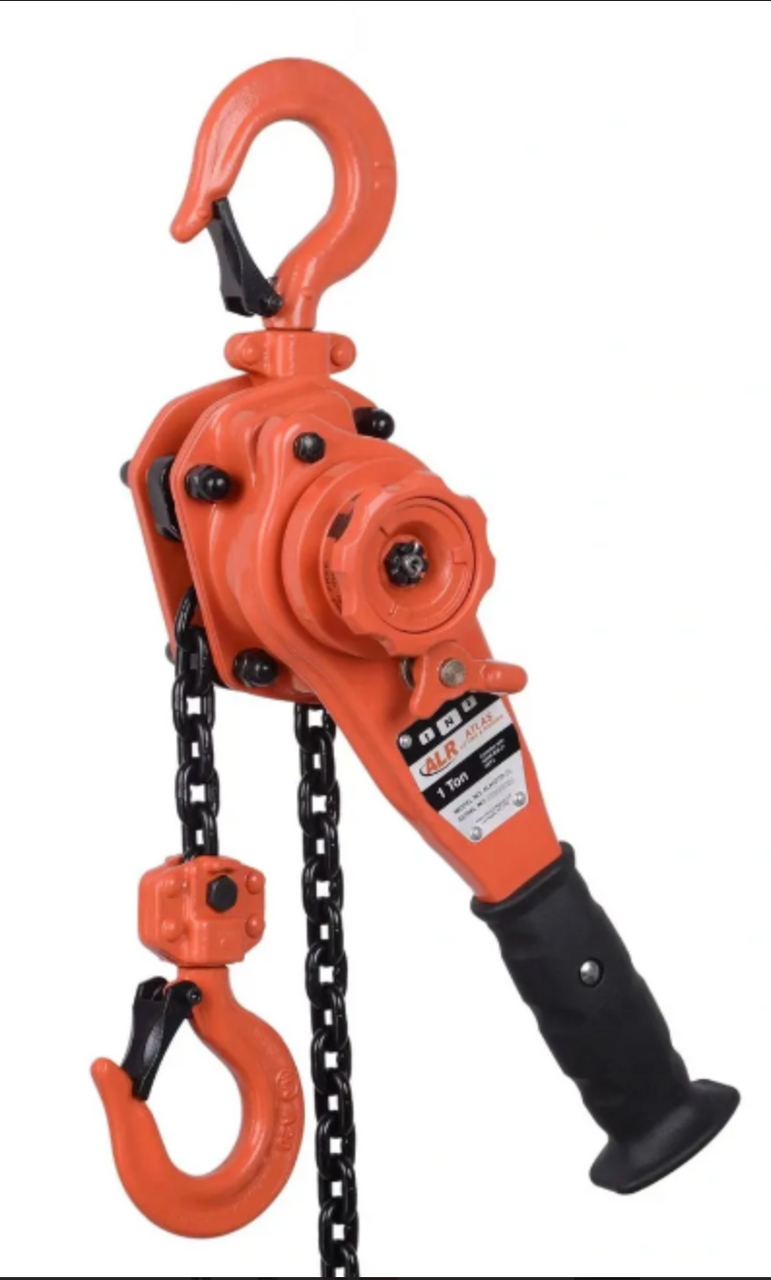

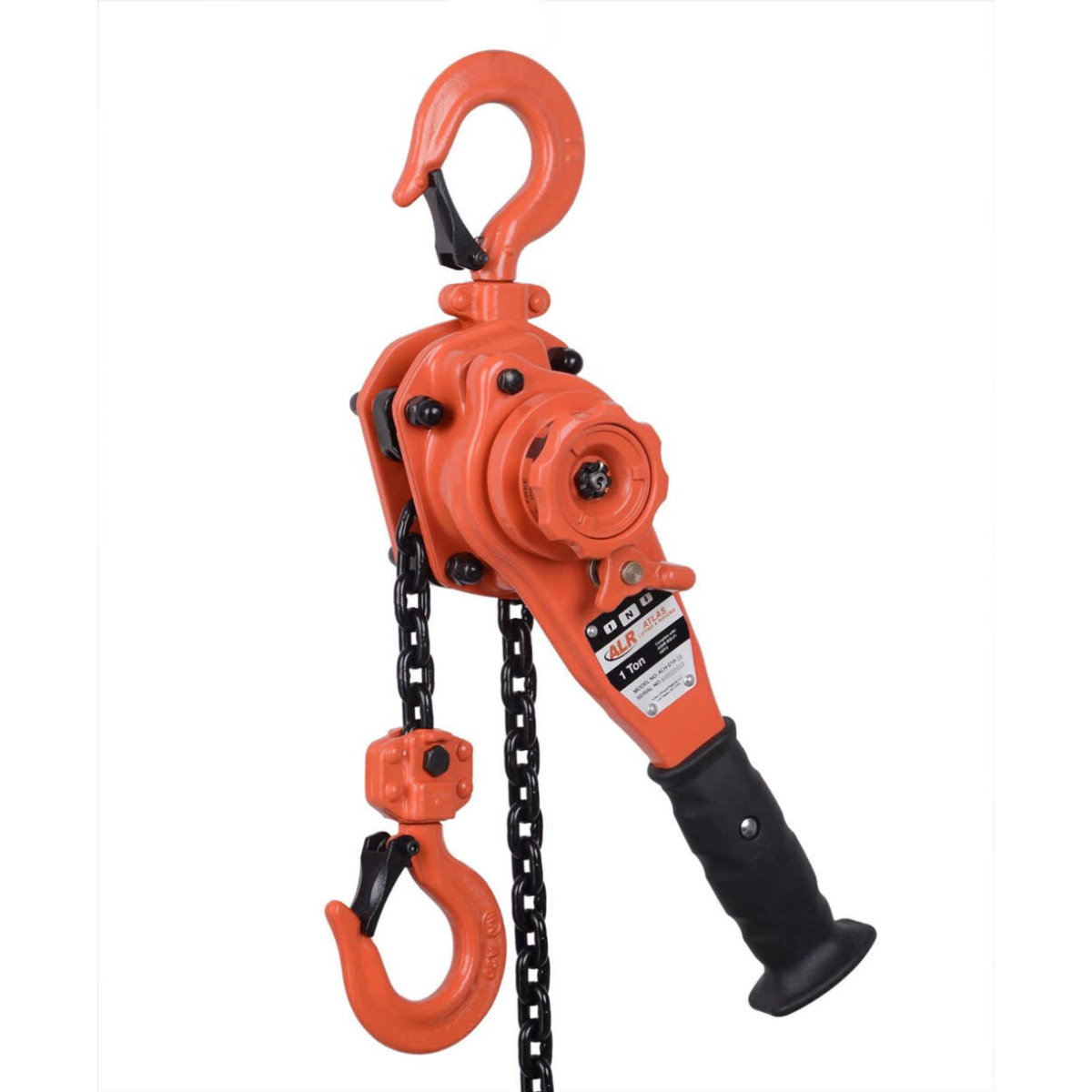

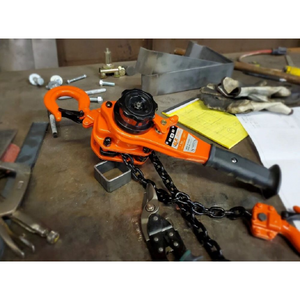

Atlas Lifting and Rigging ALH-010-05-OP Manual Lever Hoist with Overload Protection
The ALH-010-05-OP offers dependable lifting performance in a compact design, now with the added benefit of overload protection for enhanced safety. With a 1-ton (2,200 lbs) capacity and a 5-foot lift height, this hoist is ideal for lifting, pulling, and securing loads in construction, maintenance, and industrial environments where shorter lift ranges are needed.
This model includes a mechanical overload protection system that helps prevent overloading by engaging a slip clutch when the rated capacity is exceeded. This safety mechanism safeguards both the operator and the hoist. Built from high-strength steel and equipped with a heat-treated alloy steel load chain, the ALH-010-05-OP is designed for durability and performance in even the most demanding work conditions.
Key Features:
- 1-Ton Capacity with Overload Protection: A built-in slip clutch prevents lifting beyond the rated capacity, improving operator safety.
- 5-Foot Lift Height: Ideal for standard lifting and pulling tasks that require a compact setup.
- Heavy-Duty Steel Frame: Designed to withstand rugged environments and frequent use.
- Heat-Treated Alloy Steel Load Chain: Corrosion-resistant and built for long service life.
- Ergonomic Lever Handle: Ensures precise, low-effort operation with good grip.
- Three-Position Selector: Easily switch between lifting, lowering, and neutral modes.
- 360° Forged Swivel Hooks with Safety Latches: Provide secure and flexible rigging points.
Specifications:
- Model: ALH-010-05-OP
- Capacity: 1 Ton (2,200 lbs / 1,000 kg)
- Lift Height: 5 ft (1.5 m)
- Overload Protection: Mechanical slip clutch
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 16 lbs (7.3 kg)
The Atlas ALH-010-05-OP lever hoist combines safety, strength, and ease of use — making it an excellent choice for professionals who require dependable performance and built-in overload protection for short-range lifting operations.
