Product Overview

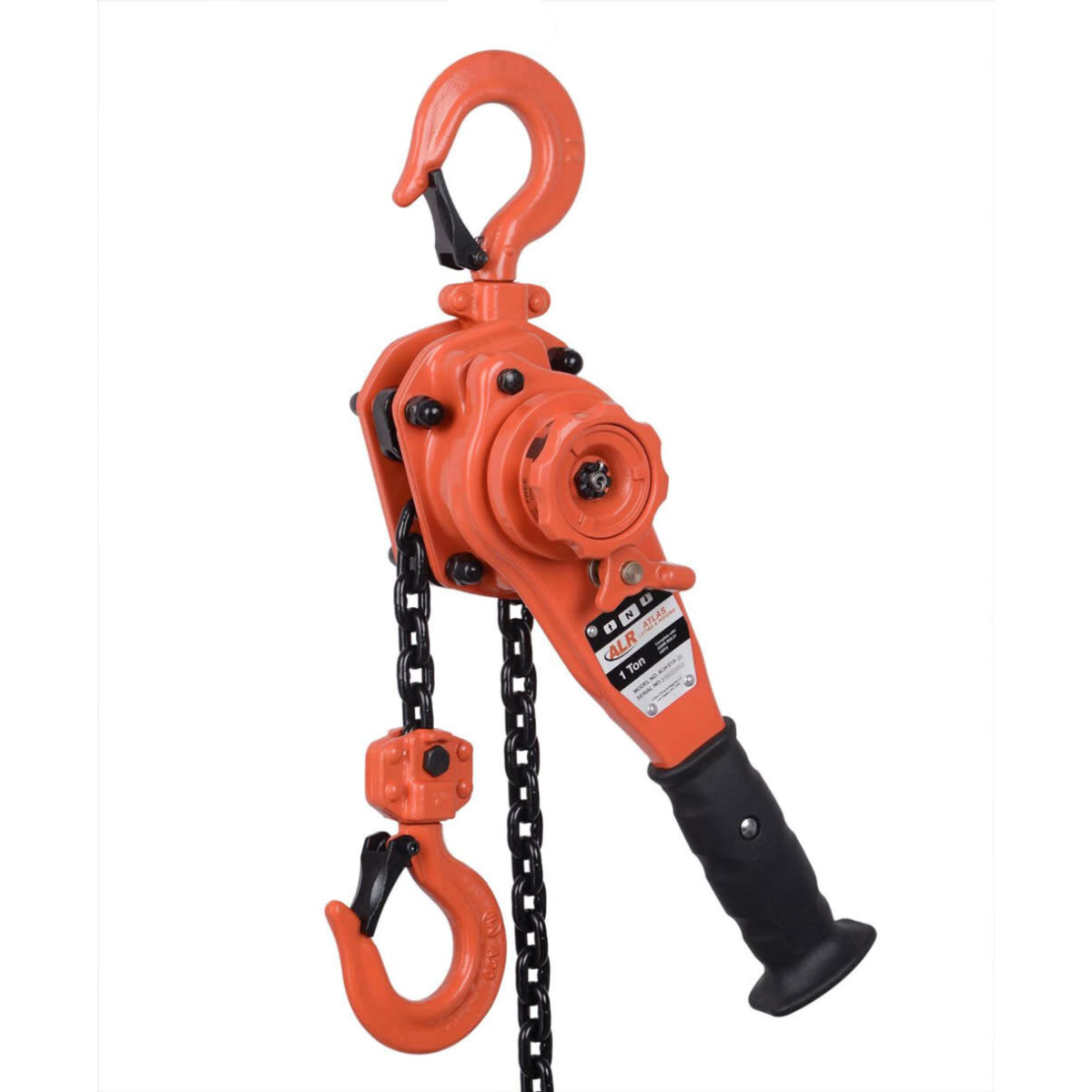

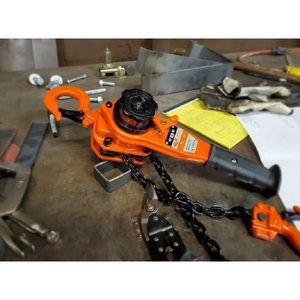

Atlas Lifting and Rigging ALH-010-20-OP Manual Lever Hoist with Overload Protection
The ALH-010-20-OP is engineered for safety, strength, and reach. Designed for professional lifting applications that demand extended height and built-in load control, this hoist combines a 1-ton capacity, 20-foot lift height, and mechanical overload protection to deliver the performance you can count on in the field.
The integrated overload protection system features a mechanical slip clutch that engages when the load exceeds the rated capacity, helping prevent over-lifting and reducing wear on the hoist components. The hoist is constructed with a durable steel body, a heat-treated alloy steel chain, and forged swivel hooks with safety latches for secure and reliable use in demanding environments.
Key Features:
- 1-Ton Capacity with Overload Protection: Mechanical slip clutch prevents overloading for safer operation.
- Extended 20-Foot Lift Height: Ideal for high-reach lifting and long pulling spans.
- Heavy-Duty Steel Construction: Withstands rough handling and industrial conditions.
- Heat-Treated Alloy Steel Chain: Built for strength, durability, and resistance to wear.
- Ergonomic Lever Handle: Allows for efficient, controlled lifting with minimal effort.

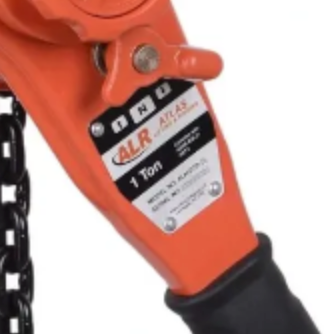

- Three-Mode Selector: Switch between lift, lower, and free-chain positions with ease.
- 360° Swivel Hooks with Safety Latches: Enable versatile and secure rigging.
Specifications:
- Model: ALH-010-20-OP
- Capacity: 1 Ton (2,200 lbs / 1,000 kg)
- Lift Height: 20 ft (6.1 m)
- Overload Protection: Mechanical slip clutch
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 26 lbs (11.8 kg)
The Atlas ALH-010-20-OP offers the extended reach and built-in safety required for demanding lifting tasks, combining rugged reliability with operator protection.
