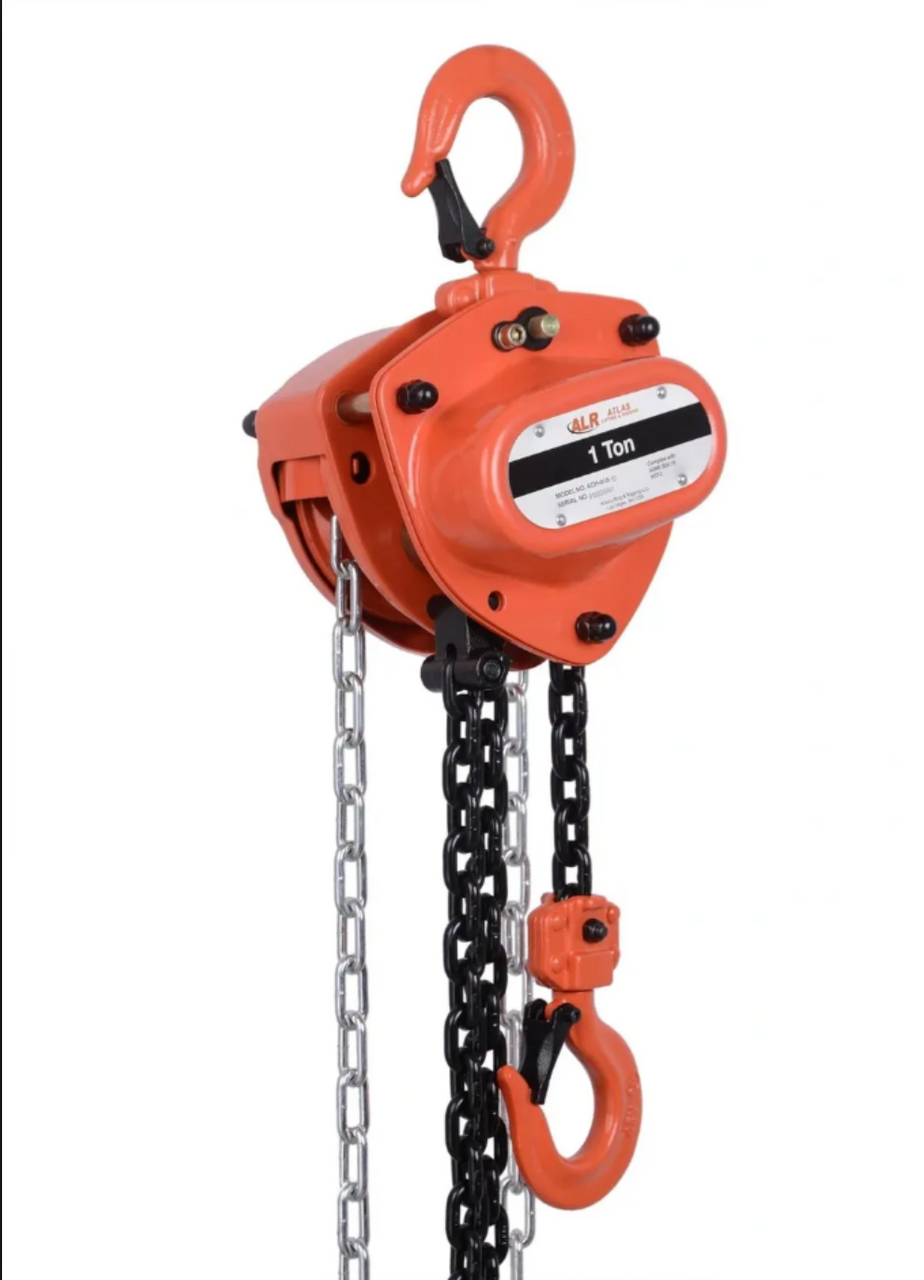

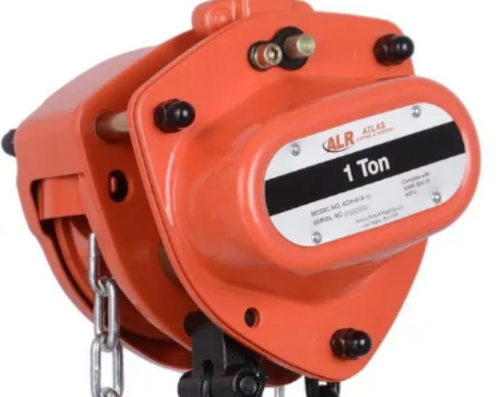

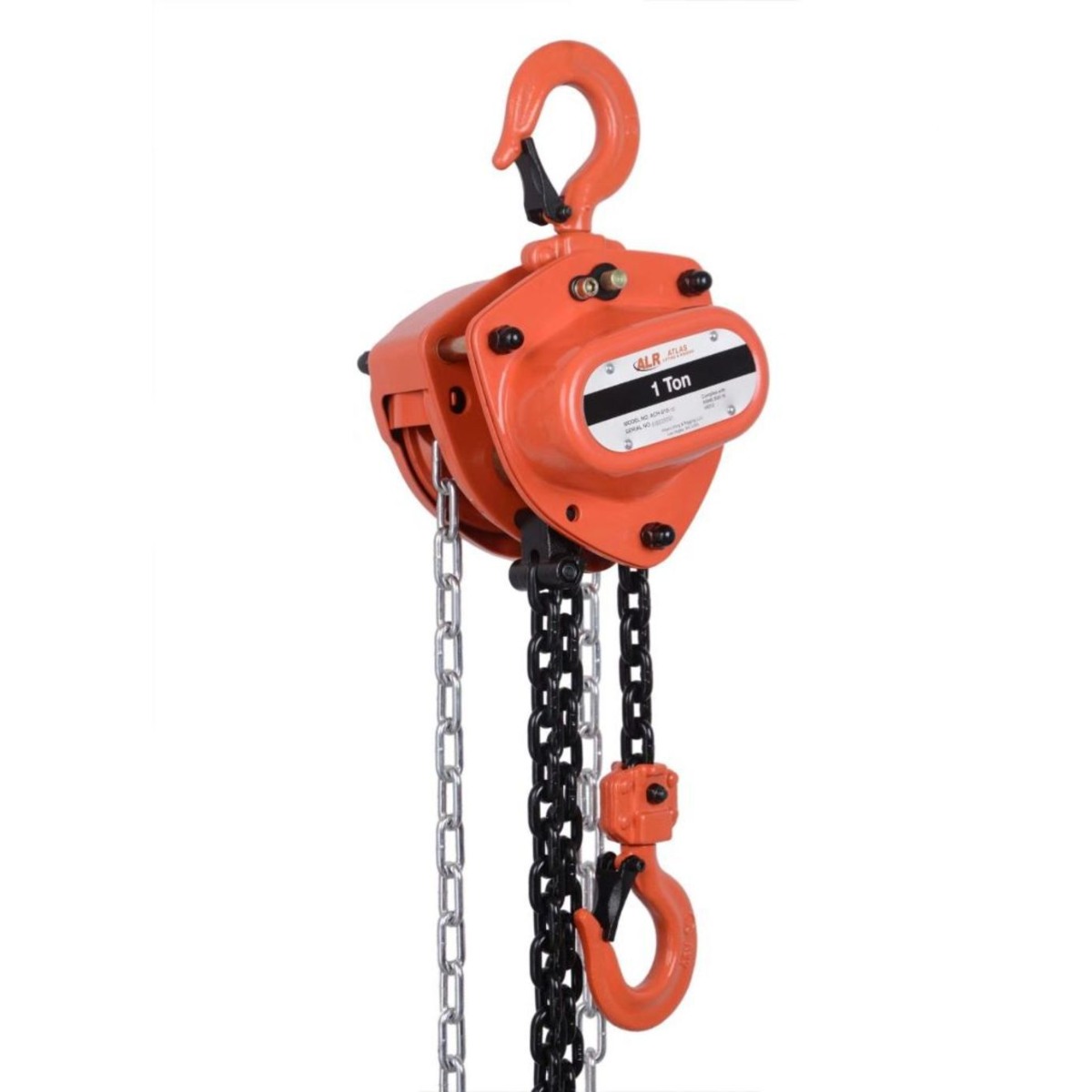

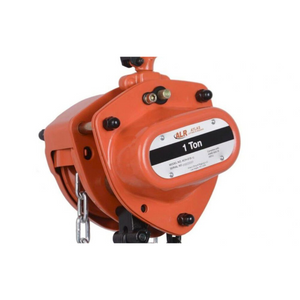

Atlas Lifting and Rigging ACH 1 Ton Chain Hoist 20 Ft. Lift with Overload Protection

Write a Review
$518.39
SKU: ACH-010-20-OP
Availability: In stock
Weight: 40.26 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

Atlas Lifting and Rigging ACH-010-20-OP Manual Chain Hoist with Overload Protection

The ACH-010-20-OP Manual Chain Hoist from Atlas Lifting and Rigging combines extended vertical reach with built-in safety features, making it the best choice for professionals working in elevated or deep-lift applications. With a 1-ton lifting capacity, a generous 20-foot lift height, and integrated overload protection, this hoist provides a high level of safety, control, and reliability in a wide range of job site conditions.

Its all-steel housing, precision-machined gearing, and sealed load brake system ensure durability and smooth operation. The built-in overload protection mechanism is designed to disengage lifting functions when the load exceeds rated capacity, helping to prevent damage to the hoist and potential injury to the operator.

Key Features:

  • Overload Protection: The integrated slip clutch prevents lifting loads beyond the rated capacity, enhancing job site safety.
  • Extended 20-foot Lift Height: Ideal for jobs requiring extra reach, such as high platforms, structural installs, or deep pits.
  • 1-Ton Load Capacity: Versatile enough for use across construction, utilities, rigging, and general industrial lifting tasks.
  • Heavy-Duty Steel Construction: Built for daily use in harsh environments.
  • Weston-Style Load Brake: Reliable mechanical brake securely holds the load at any height.
  • Smooth Hand Chain Operation: Easy to operate, even at full lift height.
  • 360° Swivel Hooks with Safety Latches: Provide secure and flexible attachment.

Specifications:

  • Model: ACH-010-20-OP
  • Capacity: 1 Ton (2,000 lbs / 907 kg)
  • Lift Height: 20 ft (6 m)
  • Overload Protection: Slip clutch mechanism (factory calibrated)
  • Load Chain: Grade 80 alloy steel, black oxide finish
  • Hand Chain: Zinc-plated steel
  • Brake Type: Weston-style mechanical load brake
  • Hook Type: Forged steel swivel hooks with safety latches
  • Headroom: Approx. 12–15 inches
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Net Weight: Approx. 38–42 lbs

The Atlas ACH-010-20-OP is designed for professionals who prioritize both extended reach and advanced safety. No matter if you're lifting materials in high-rise projects or deep-set environments, this hoist delivers unmatched control, protection, and performance.
