Product Overview

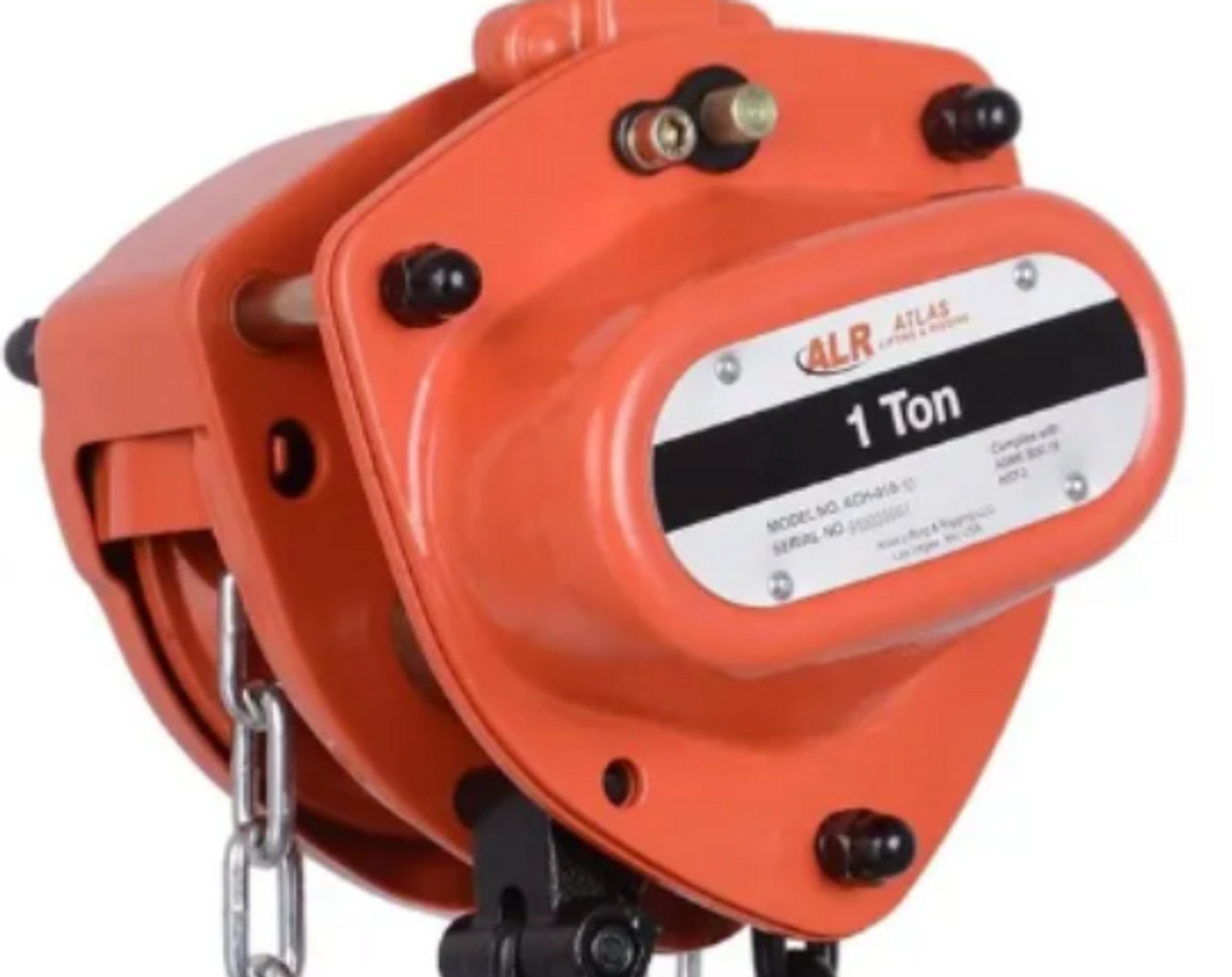

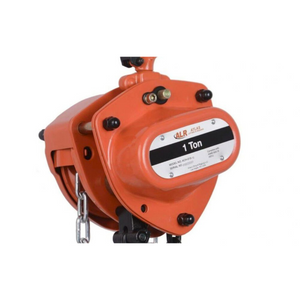

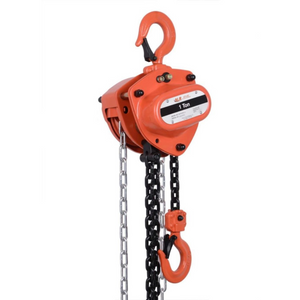

Atlas Lifting and Rigging ACH-010-15-OP Manual Chain Hoist with Overload Protection
The ACH-010-15-OP Manual Chain Hoist from Atlas Lifting and Rigging delivers enhanced lifting performance with the built-in safety of overload protection. Designed for industrial-grade lifting tasks, this hoist offers a 1-ton capacity and an extended 15-foot lift height, making it ideal for elevated lifts or deep rigging points where additional reach is required.
Equipped with a mechanical overload protection system, the ACH-010-15-OP helps prevent over-lifting by engaging a slip clutch when loads exceed rated capacity. Combined with a rugged steel construction, a precision gear system, and a trusted load brake, this hoist ensures safety, longevity, and ease of use in a wide range of job site environments.
Key Features:
- Overload Protection System: Prevents over-capacity lifting, reducing the risk of equipment failure and enhancing operator safety.
- 15-Foot Lift Height: Extended reach for higher lifts or applications requiring greater vertical clearance.
- 1-Ton Lifting Capacity: Handles a variety of lifting tasks in construction, utilities, maintenance, and industrial settings.
- Heavy-Duty Steel Housing: Built for long-lasting performance in tough environments.
- Ergonomic Hand Chain Operation: Enables smooth, low-effort lifting and precise control.

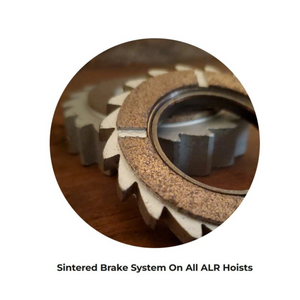

- Weston-Style Mechanical Load Brake: Provides positive load holding and safety.
- Swivel Top and Load Hooks with Safety Latches: Allow safe and flexible rigging.
Specifications:
- Model: ACH-010-15-OP
- Capacity: 1 Ton (2,000 lbs / 907 kg)
- Lift Height: 15 ft (4.5 m)
- Overload Protection: Integrated slip clutch system
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel

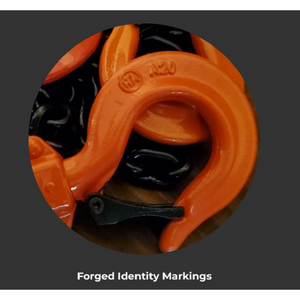

- Hook Type: Forged steel swivel hooks with safety latches
- Brake Type: Weston-style mechanical load brake
- Headroom: Approx. 12–15 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 30–34 lbs
The Atlas ACH-010-15-OP offers an innovative combination of safety, reach, and rugged construction—built to handle your most demanding lifts with confidence and control. Perfect for professionals who prioritize performance and protection on every job.
