Atlas Lifting and Rigging ACH 1 Ton Chain Hoist 30 Ft. Lift with Overload Protection

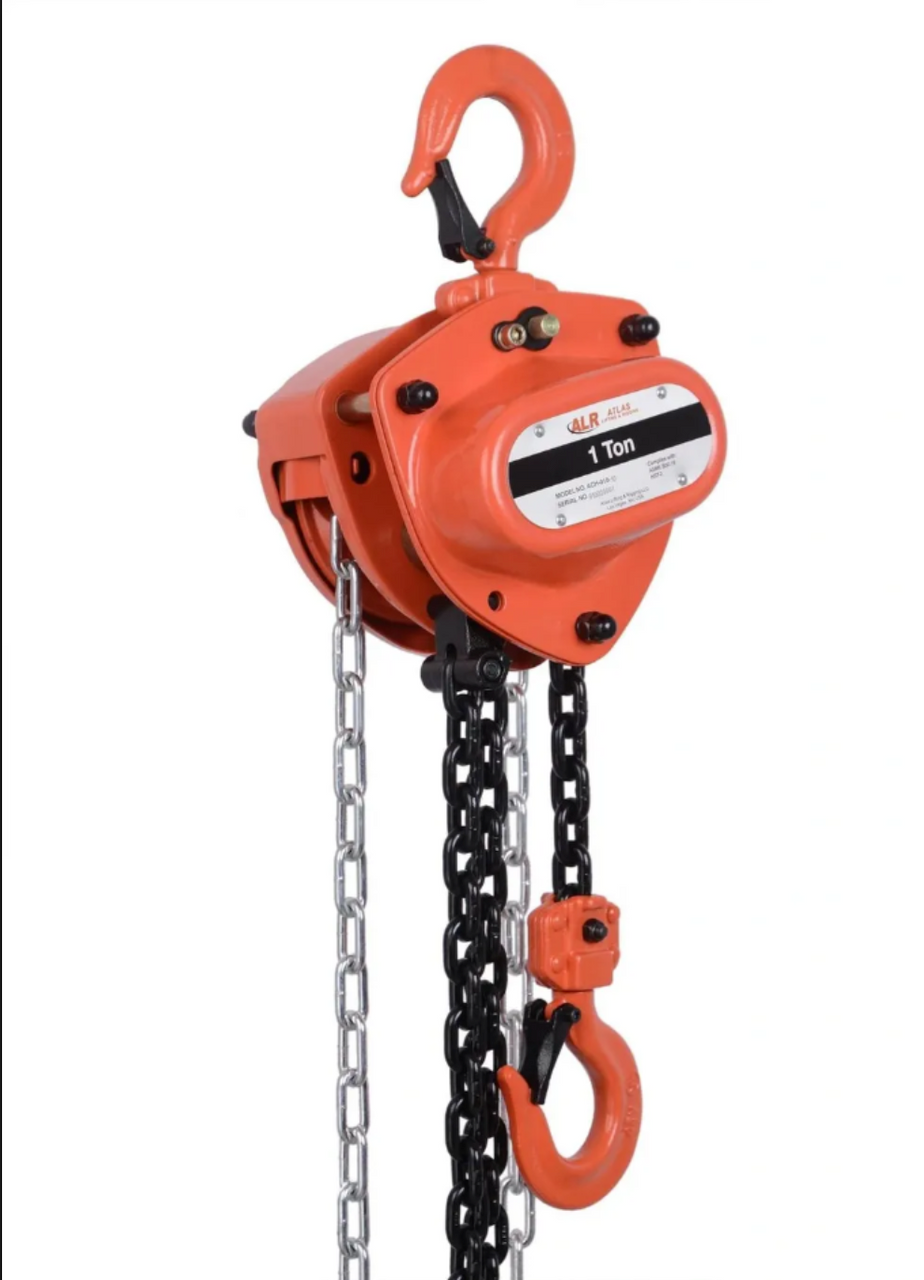

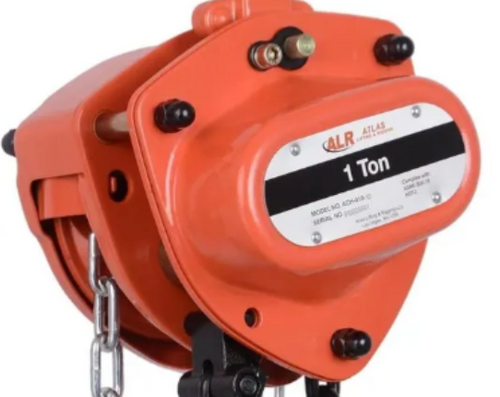

Atlas Lifting and Rigging ACH-010-30-OP Manual Chain Hoist with Overload Protection

The ACH-010-30-OP Manual Chain Hoist from Atlas Lifting and Rigging is purpose-built for extended-reach lifting with an added layer of safety. With a 1-ton capacity, 30-foot lift height, and integrated overload protection, this hoist is ideal for elevated rigging tasks, high-bay maintenance, and deep-lift operations where operator safety and hoist integrity are paramount.

The built-in overload protection system is engineered to prevent over-capacity lifting by disengaging the hoist mechanism when loads exceed the rated limit. Combined with a rugged steel body, durable grade 80 load chain, and a reliable Weston-style mechanical brake, the ACH-010-30-OP delivers both performance and peace of mind in harsh industrial environments.

Key Features:

• Overload Protection: The integrated slip clutch automatically prevents lifting beyond the rated capacity.
• 30-foot Lift Height: Maximum reach for elevated workspaces or deep rigging points.
• 1-Ton Load Capacity: Suitable for heavy-duty applications, including construction, mechanical lifts, and structural rigging.
• Heavy-Duty Steel Construction: Built to withstand demanding field conditions and regular use.
• Mechanical Load Brake: Weston-style brake securely holds the load in place during lifting or suspension.
• Smooth, Ergonomic Operation: Minimal hand effort required, even at full lift height.
• 360° Swivel Hooks with Safety Latches: Provide secure, flexible connection points and help prevent chain twisting.

Specifications:

• Model: ACH-010-30-OP
• Capacity: 1 Ton (2,000 lbs / 907 kg)
• Lift Height: 30 ft (9 m)
• Overload Protection: Integrated slip clutch system
• Load Chain: Grade 80 alloy steel, black oxide finish
• Hand Chain: Zinc-plated steel
• Brake Type: Weston-style mechanical load brake
• Hook Type: Forged steel swivel hooks with safety latches
• Headroom: Approx. 12–15 inches
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Net Weight: Approx. 55–60 lbs

The Atlas ACH-010-30-OP delivers extended vertical reach with added overload safety, making it the trusted choice for professionals handling high-stakes lifts in complex environments. When safety, reach, and reliability matter — this hoist is built to perform.
