Product Overview

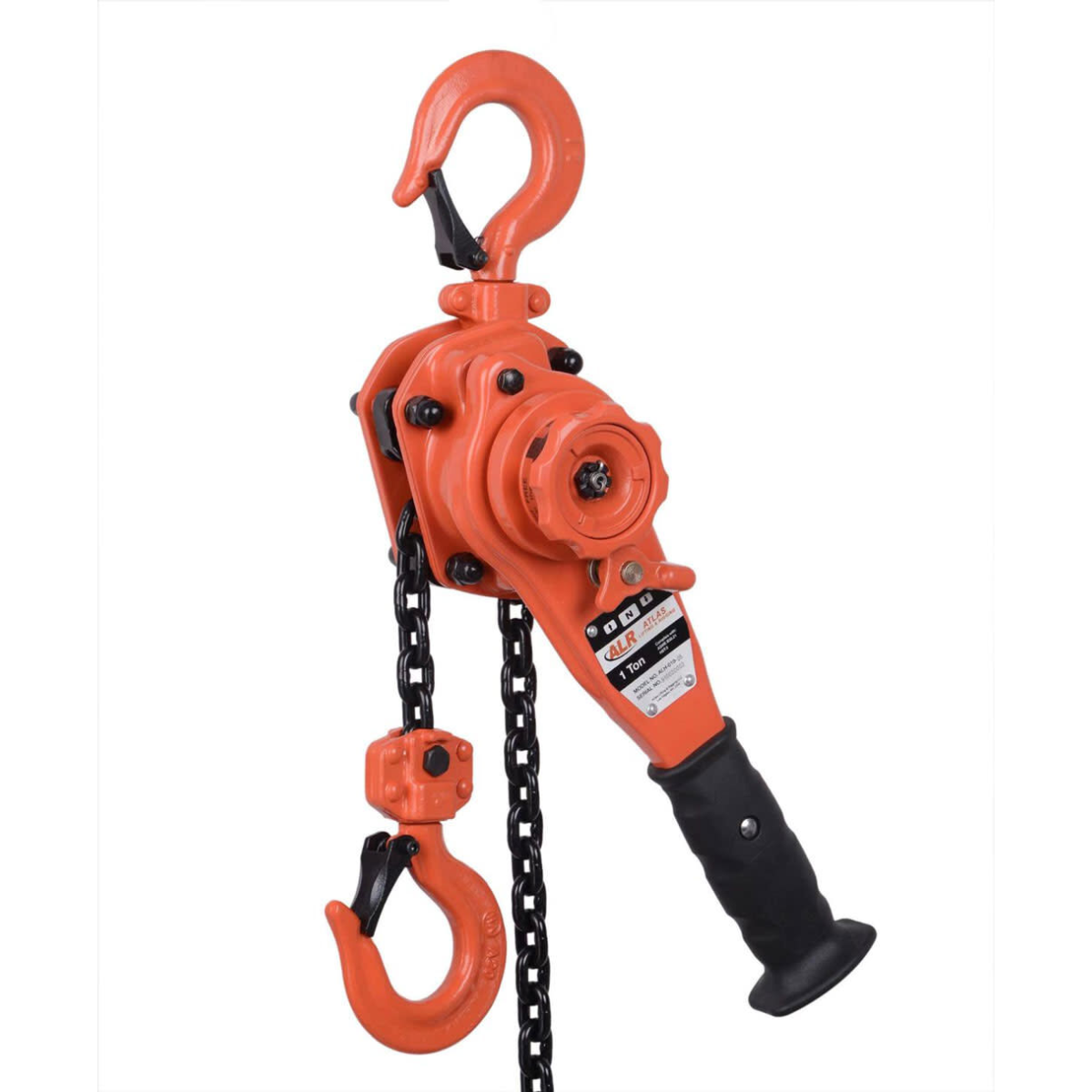

Atlas Lifting and Rigging ALH-010-30-OP Manual Lever Hoist with Overload Protection
Built for maximum reach and operational safety, the ALH-010-30-OP offers a 1-ton capacity, an extended 30-foot lift height, and the added benefit of integrated mechanical overload protection. This hoist is the professional’s choice for high-elevation or long-pull tasks where both safety and performance are non-negotiable.
The mechanical overload protection system engages automatically when the hoist is subjected to excessive load, preventing overexertion and protecting both the equipment and the operator. A rugged steel body and heat-treated alloy steel load chain ensure reliable performance in demanding industrial or construction environments, while the ergonomic features deliver ease of use even on repetitive tasks.
Key Features:
- 1-Ton Load Capacity with Overload Protection: Safeguards against overloading with a built-in slip clutch mechanism.
- 30-Foot Lift Height: Ideal for high vertical rigging or long-span pulling operations.
- Heavy-Duty Steel Construction: Designed for long-term durability in harsh conditions.
- Heat-Treated Alloy Steel Load Chain: Offers maximum strength and wear resistance.
- Ergonomic Lever Handle: Designed for controlled, low-effort operation.
- Three-Mode Selector Switch: Allows for lifting, lowering, and free-chain adjustment.

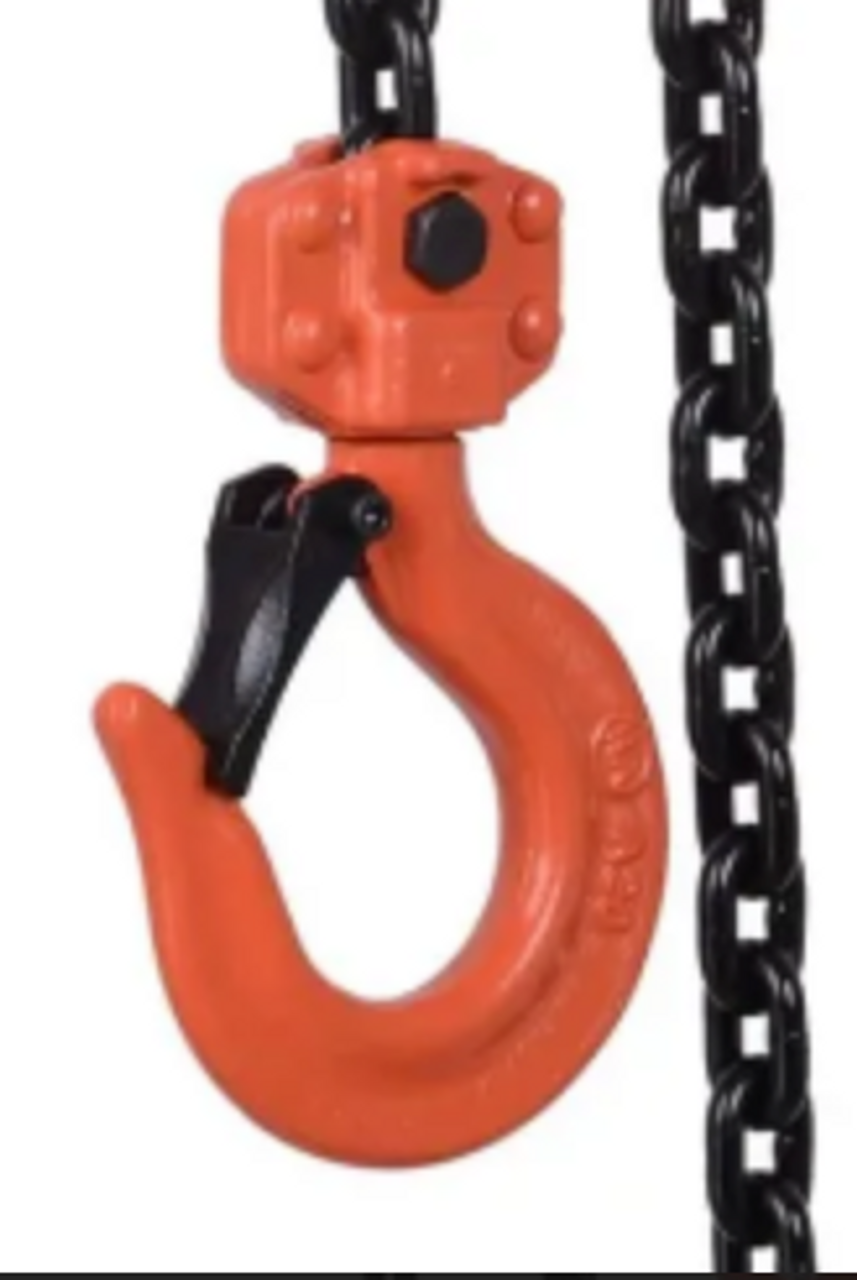

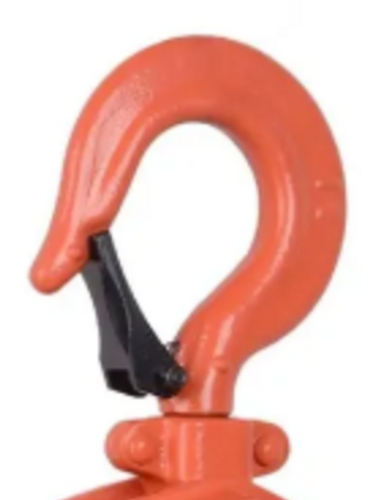

- Forged Swivel Hooks with Safety Latches: Provide secure attachment and flexible rigging.
Specifications:
- Model: ALH-010-30-OP
- Capacity: 1 Ton (2,200 lbs / 1,000 kg)
- Lift Height: 30 ft (9.1 m)
- Overload Protection: Mechanical slip clutch
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 33 lbs (15 kg)
The Atlas ALH-010-30-OP delivers long-lift capability and built-in load protection, making it the ideal solution for professionals who need safety and strength at extended heights.
