Product Overview

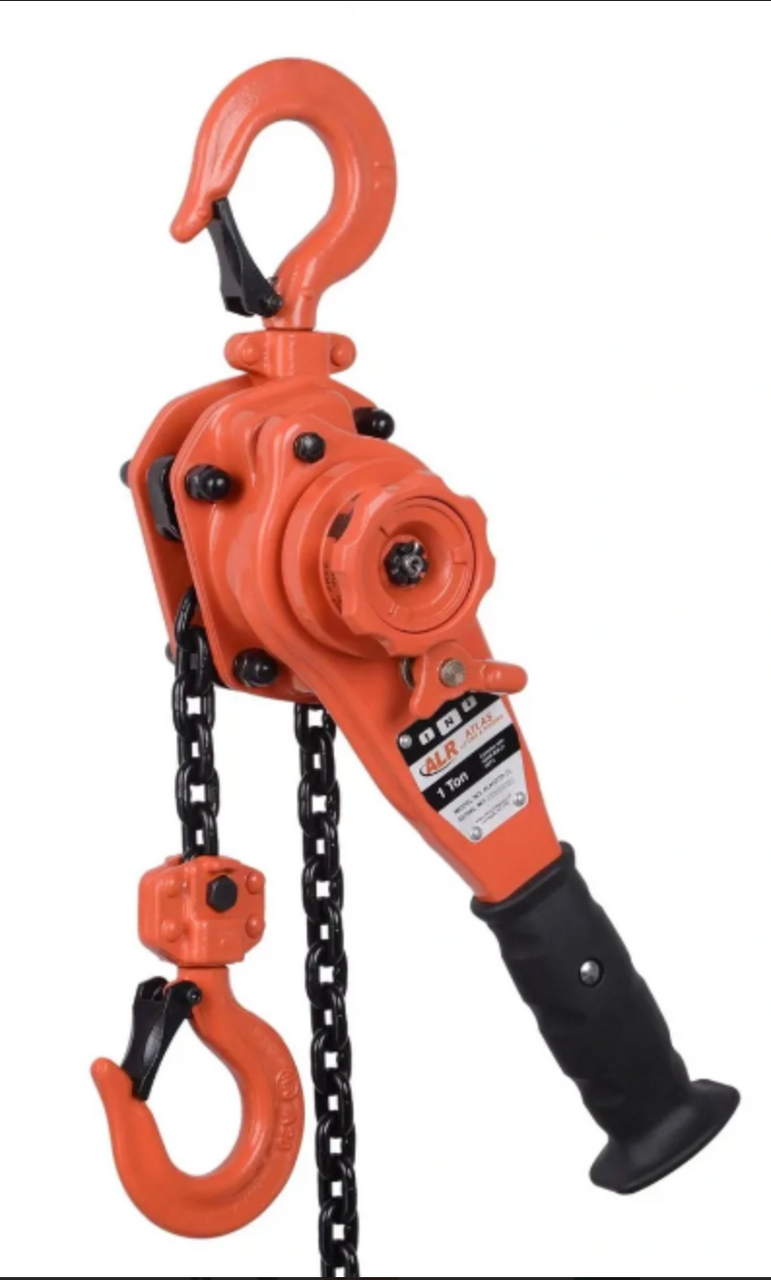

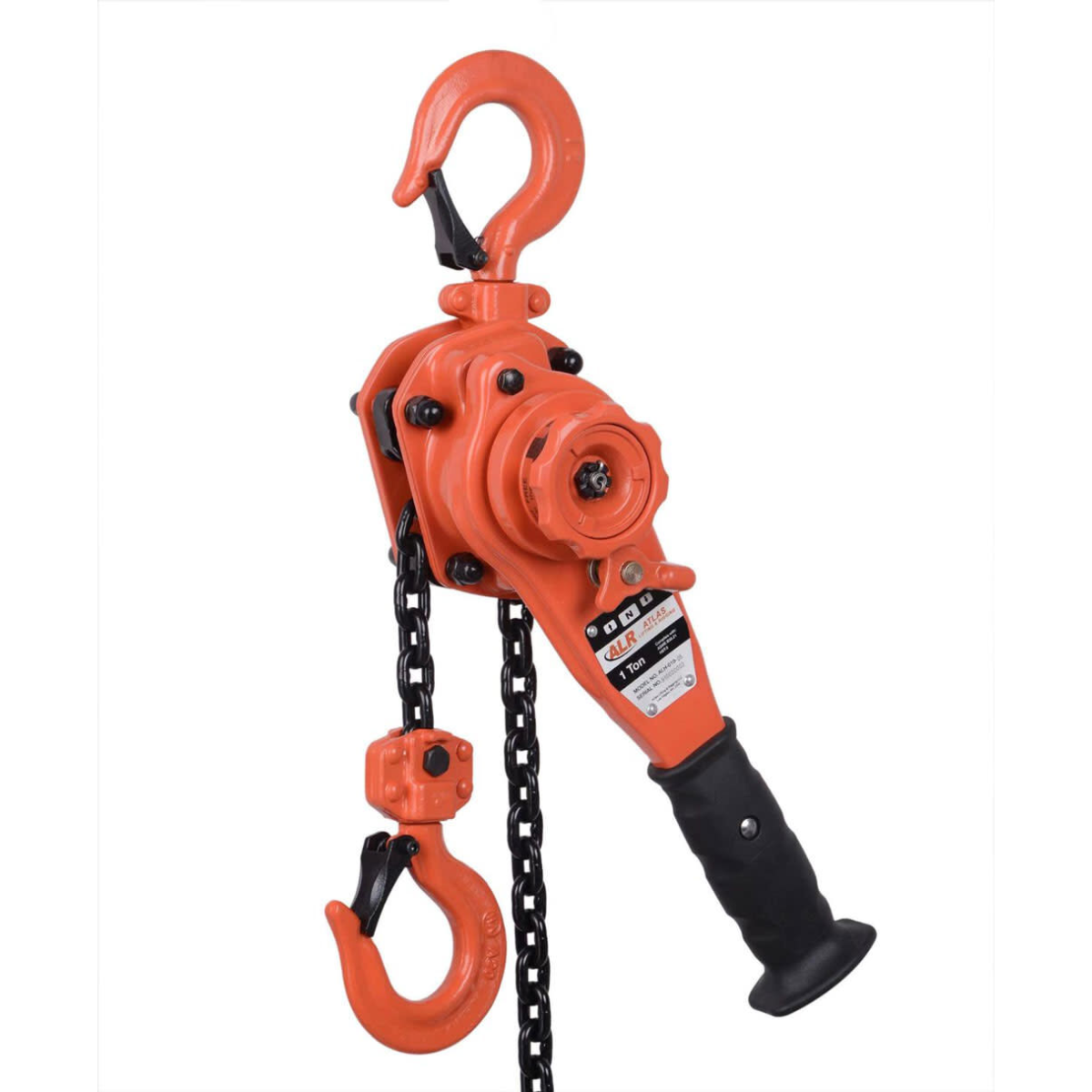

Atlas Lifting and Rigging ALH-010-10-OP Manual Lever Hoist with Overload Protection
The ALH-010-10-OP combines strength, safety, and control in a compact manual hoist built for professional use. With a 1-ton (2,200 lbs) load capacity and a 10-foot lift height, it’s an excellent solution for medium-lift applications in construction, mechanical, utilities, and industrial settings.
This model is equipped with a mechanical overload protection system that activates when loads exceed the hoist’s rated capacity. This slip clutch feature helps protect both the operator and the equipment, reducing risk and extending service life. The hoist features forged swivel hooks with safety latches for secure and flexible attachment, as well as a durable, heat-treated alloy steel chain for long-term reliability.
Key Features:
- 1-Ton Capacity with Overload Protection: Prevents lifting beyond safe working limits with a built-in slip clutch.
- 10-Foot Lift Height: Suitable for general-purpose and overhead lifting needs.
- Heavy-Duty Steel Housing: Built for longevity in harsh working environments.
- Heat-Treated Alloy Steel Load Chain: Engineered for strength, wear resistance, and smooth operation.
- Comfortable Lever Handle: Ergonomically designed for precise, low-effort control.
- Three-Position Selector: Allows lifting, lowering, and free-chain movement.
- Swivel Hooks with Safety Latches: 360° rotation and secure rigging in various configurations.
Specifications:
- Model: ALH-010-10-OP
- Capacity: 1 Ton (2,200 lbs / 1,000 kg)
- Lift Height: 10 ft (3 m)
- Overload Protection: Mechanical slip clutch
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches

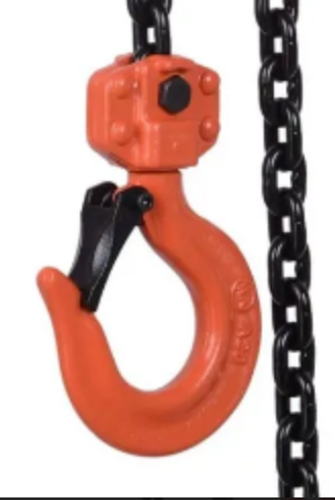

- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 20 lbs (9.1 kg)
The Atlas ALH-010-10-OP delivers dependable lifting power with added safety built in — perfect for professionals who demand both performance and protection in their rigging gear.
