Product Overview

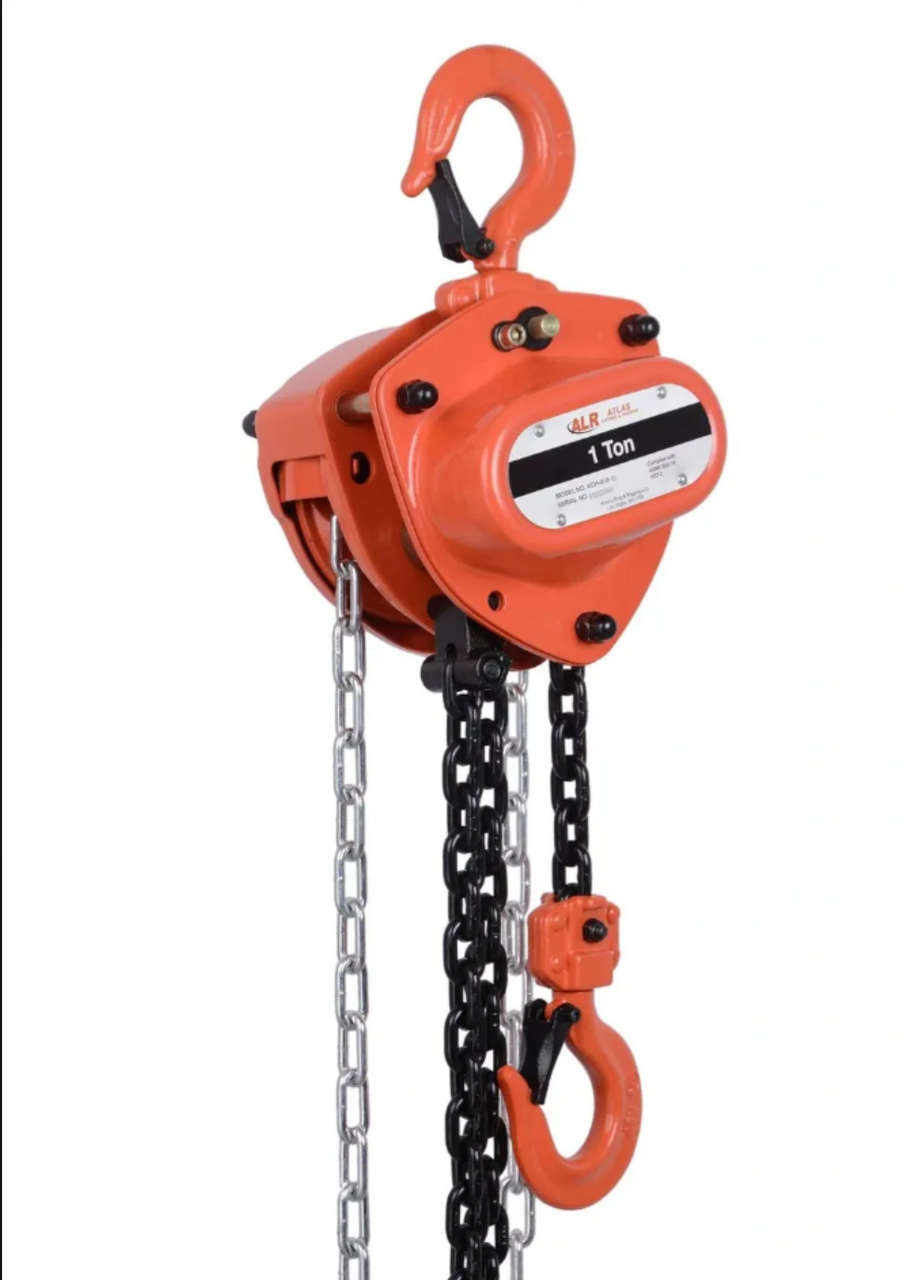

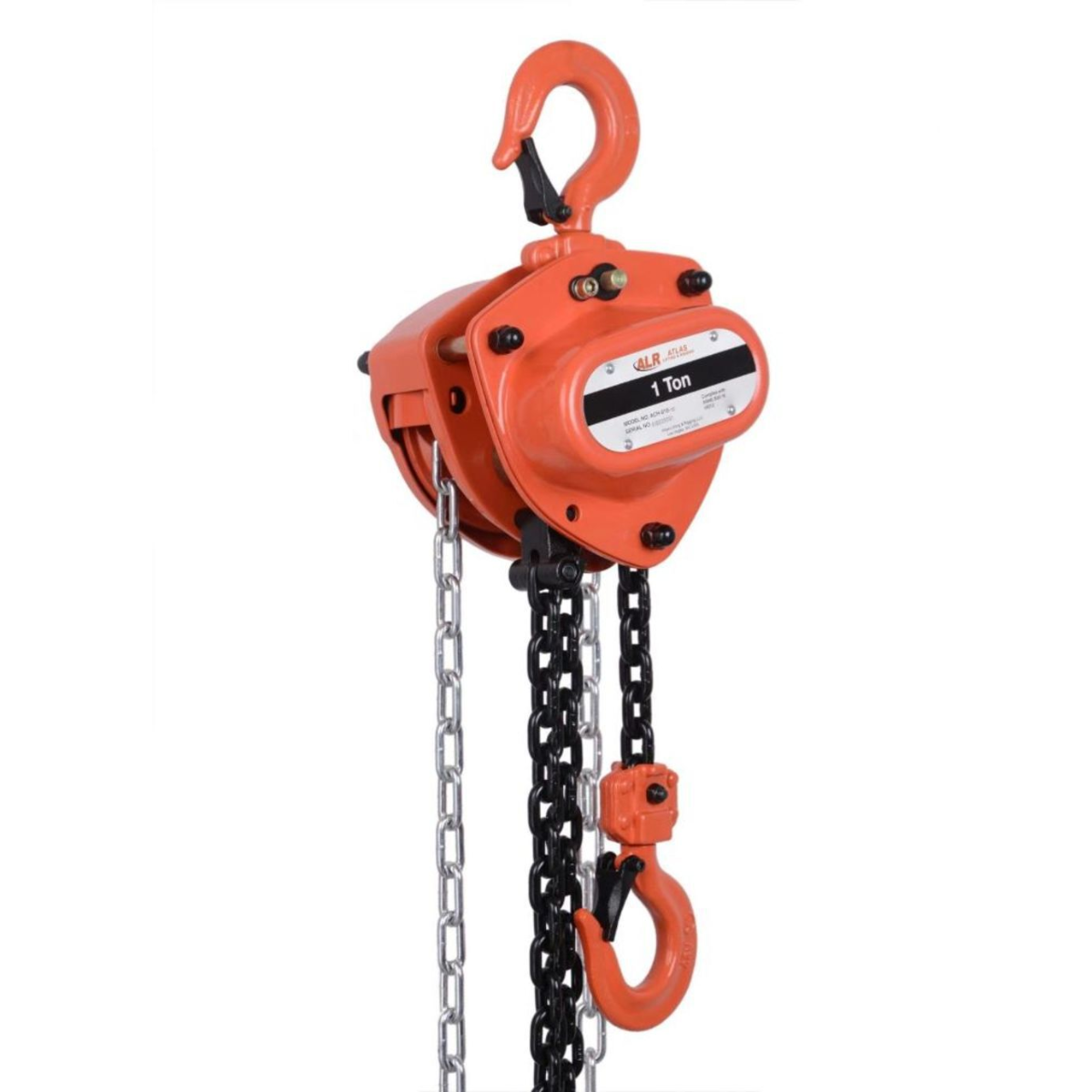

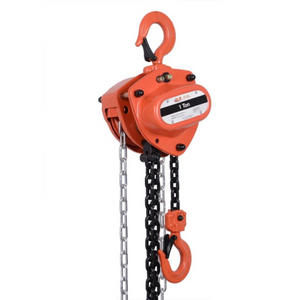

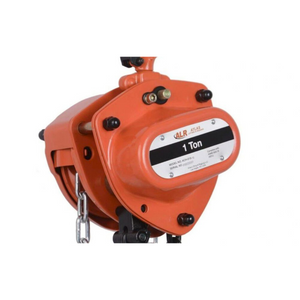

Atlas Lifting and Rigging ACH-010-10-OP Manual Chain Hoist with Overload Protection
The ACH-010-10-OP Manual Chain Hoist from Atlas Lifting and Rigging delivers dependable lifting performance with the added safety of integrated overload protection. Built with the same design and high-quality materials as the standard ACH series, this hoist features an overload protection mechanism that helps prevent lifting beyond the rated capacity, thereby reducing the risk to both the operator and the equipment.
With a 1-ton capacity and 10-foot lift height, the ACH-010-10-OP is ideal for demanding industrial environments where safety and reliability are critical. Its compact, portable design and smooth hand chain operation make it a go-to solution for lifting applications in construction, fabrication, maintenance, and field service.
Key Features:
- 1-Ton Capacity with Overload Protection: Prevents accidental overloading by engaging a slip clutch when the load exceeds rated capacity.
- 10-Foot Lift Height: Versatile enough for most common rigging and lifting tasks.
- Robust All-Steel Construction: Provides lasting strength and resistance to impact and wear.
- High-Efficiency Gear System: Allows smooth, controlled lifting with minimal hand effort.
- Mechanical Load Brake: Weston-style brake holds the load securely in any position.
- Ergonomic Hand Chain Operation: Enables low-force lifting, even in tight quarters.
- Swivel Hooks with Safety Latches: Securely retain the load and allow rotation to reduce twisting of the chain.
Specifications:
- Model: ACH-010-10-OP
- Capacity: 1 Ton (2,000 lbs / 907 kg)
- Lift Height: 10 ft (3 m)
- Overload Protection: Integrated slip clutch system
- Load Chain: Grade 80 alloy steel, black oxide coated
- Hand Chain: Zinc-plated steel
- Headroom: Approx. 12–15 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Brake Type: Mechanical Weston-style load brake
- Operating Environment: Indoor/outdoor use, -40°F to 140°F
- Net Weight: Approx. 25–28 lbs
The Atlas ACH-010-10-OP is the ideal manual chain hoist for safety-conscious operations where lifting precision and operator protection are non-negotiable. Dependable, compact, and compliant — it’s a tool built for the long haul.
