Atlas Lifting and Rigging TCH 1 Ton Chain Hoist 2200 lbs 15 Ft. Lift

Write a Review
$294.29
SKU: TCH-010-15
Availability: In stock
Weight: 31.24 LBS
Width: 8.27 (in)
Height: 9.84 (in)
Depth: 6.69 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Atlas Lifting and Rigging TCH 1 Ton Chain Hoist 2200 lbs 15 Ft. Lift

Atlas Lifting and Rigging TCH 1 Ton Chain Hoist 2200 lbs 15 Ft. Lift

$294.29

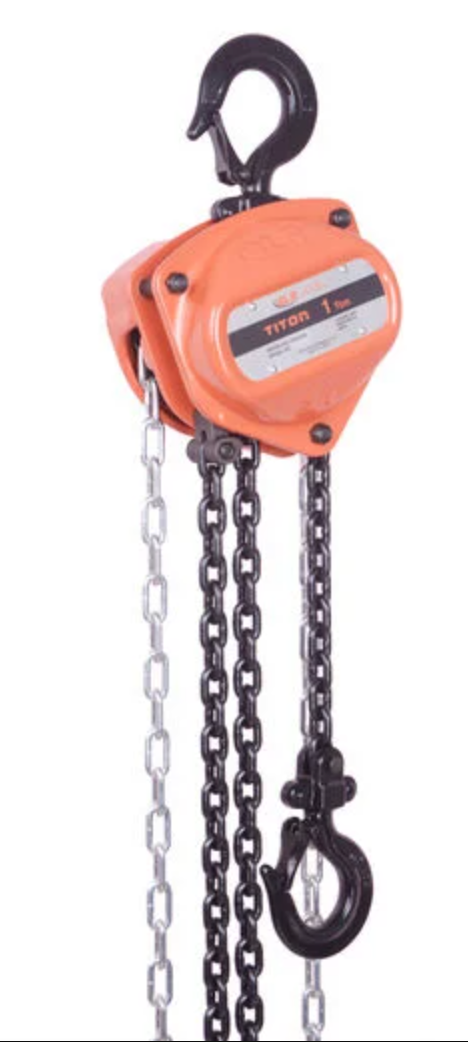

Atlas Titon TCH-010-15 Manual Chain Hoist — 1 Ton Capacity, 15 ft Lift



The Atlas Titon TCH-010-15 manual chain hoist is designed to deliver dependable, high-performance lifting in harsh industrial environments. With a full 1-ton (2,200 lbs) lifting capacity and an extended 15-foot lift height, this hoist is well-suited for operations requiring overhead reach or deeper vertical lifting. Rugged steel construction, precision machining, and an advanced load brake system ensure safe and efficient handling of heavy loads day after day.



Applications:

  • Industrial maintenance and repair
  • Steel erection and fabrication
  • Utility and plant operations
  • Rigging and warehouse lifting tasks



Key Features:

  • 1 Ton Lifting Capacity
  • Safely lifts up to 2,200 lbs for a wide range of medium to heavy-duty applications.
  • Extended 15 ft Lift Height
  • Ideal for higher lifting points in warehouses, facilities, and construction sites.
  • Heavy-Duty Steel Frame
  • Built with reinforced alloy steel side plates and stay bolts for structural integrity.
  • Reliable Load Brake System
  • Sealed mechanical brake delivers consistent performance and load control under varying conditions.
  • Grade 80 Load Chain
  • Made from hardened alloy steel for superior strength and resistance to wear and deformation.
  • Hook Safety Indicators
  • Forged steel swivel hooks include deformation markers to indicate overload situations.
  • Smooth, Low-Effort Operation
  • The roller bearing mechanism reduces hand chain resistance for smooth lifting and operator comfort.
  • Weather-Resistant Coating
  • Corrosion-resistant zinc and powder-coated finishes protect against harsh environmental exposure.
  • Standards Compliant
  • Fully meets or exceeds ASTM B30.21 safety and performance standards.



Technical Specifications:

Model Number: TCH-010-15

Load Capacity: 1 Ton (2,200 lbs)

Lift Height: 15 Feet

Hand Chain Pull Force: ≤ 76 lbf

Load Chain Type: Grade 80 Alloy Steel

Chain Diameter: 6 mm

Hook Type: Forged Swivel with Safety Latch

Brake System: Mechanical Load Brake (sealed)

Construction Material: High-Strength Steel

Finish: Powder-Coated (Orange)

Net Weight: Approx. 36 lbs (16.3 kg)

Operating Temperature: -40°F to 140°F (-40°C to 60°C)

Standards Compliance: ASTM B30.21

Warranty: 3-Year Limited Manufacturer
