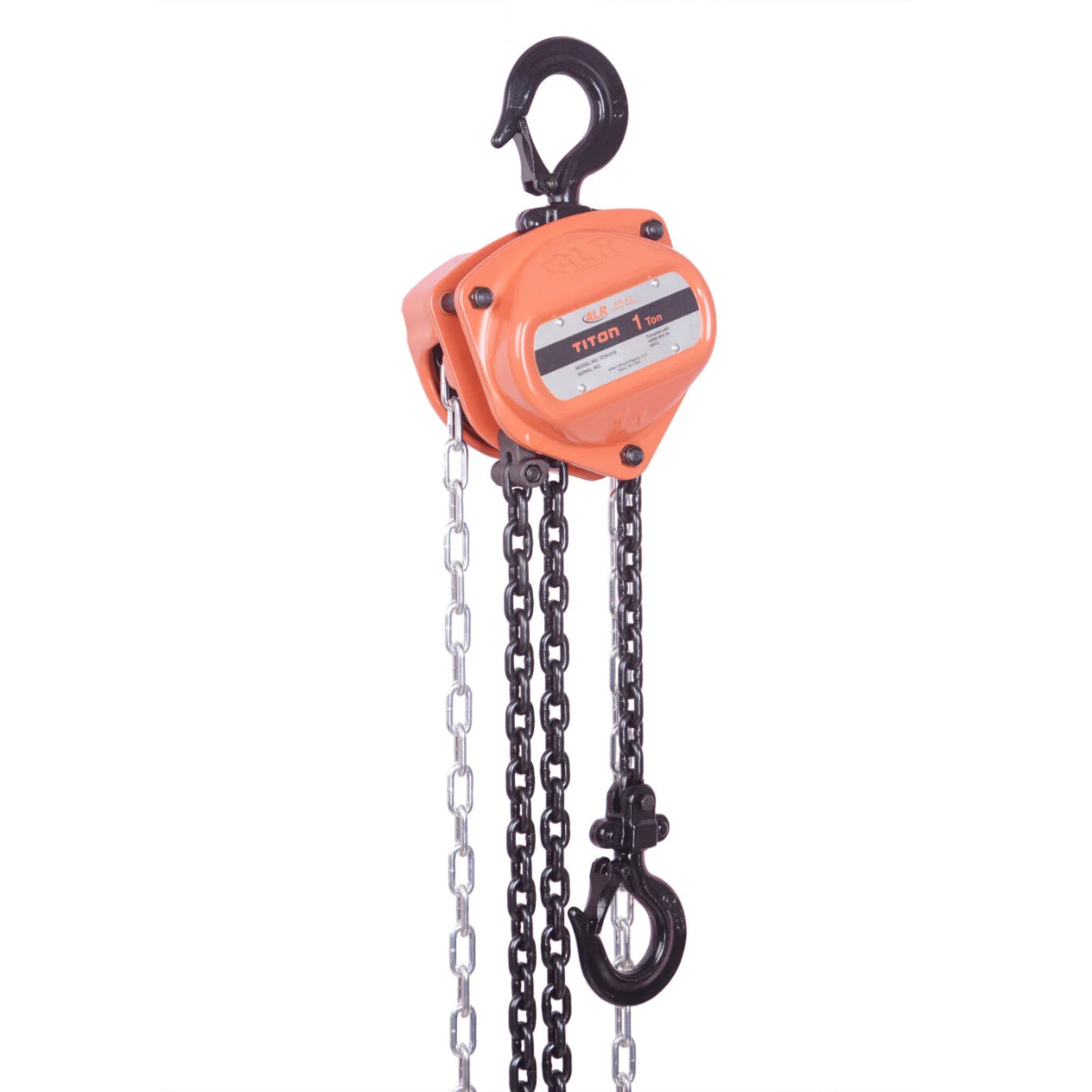

Atlas Lifting & Rigging Titon Manual Chain Hoist, 1 Ton, 5 ft Lift – Model TCH-010-05

Product Description:

The Atlas Titon Chain Hoist TCH-010-05 is a heavy-duty manual lifting solution engineered for reliable performance in industrial, construction, and maintenance environments. Built for industry with a focus on strength, safety, and longevity, this 1-ton chain hoist delivers efficient load handling in demanding work conditions. The hoist features a precision-machined gear system, a sealed braking mechanism for consistent performance, and a rugged steel construction built to withstand daily wear.

With its compact, low-headroom design, the TCH-010-05 is ideal for confined workspaces, offering a 5-foot lift height for versatile lifting applications. It is equipped with overload indicators on the hooks and sealed bearings to ensure smooth operation and reduced maintenance. This hoist meets applicable safety standards and is backed by a 3-year limited warranty.

Key Features:

• 1-ton (2,200 lb) load capacity
• 5-foot standard lift height
• High-strength alloy steel side plates for maximum durability
• Powder-coated finish and zinc-treated components for corrosion resistance
• Mechanical load brake system for dependable load control
• Roller bearings for smooth and efficient operation
• Forged alloy steel hooks with safety latches and overload deformation indicators
• Sealed construction minimizes exposure to dust and moisture
• Conforms to applicable safety and performance standards

Specifications:

Model Number:  TCH-010-05

Load Capacity: 1 Ton (2,200 lbs)

Standard Lift Height: 5 Feet

Hand Chain Pull Force: ≤ 76 lbf

Load Chain: Grade 80, alloy steel

Hook Type:  Swivel with safety latch

Brake Type: Mechanical, sealed load brake

Finish: Powder-coated, orange

Body Material: High-strength steel

Net Weight: Approx. 22 lbs (10 kg)

Operating Temperature -40°F to 140°F (-40°C to 60°C)

Compliance: Meets or exceeds ASTM B30.21

Warranty 3-Year Limited Manufacturer
