Product Overview

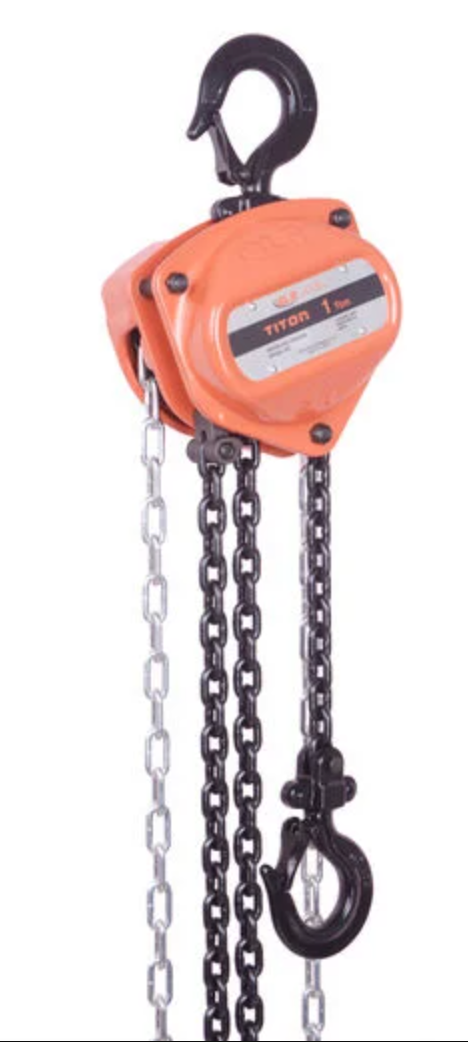

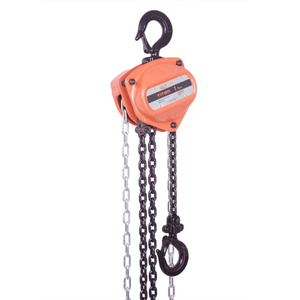

Atlas Titon TCH-010-20 Manual Chain Hoist — 1 Ton Capacity, 20 ft Lift
The Atlas Titon TCH-010-20 is a high-performance manual chain hoist built to handle elevated lifting applications with maximum reliability and control. Featuring a 1-ton (2,200 lbs) load capacity and a generous 20-foot lift height, this hoist is ideal for tall structures, elevated rigging, and industrial setups that demand extended reach. Designed for durability, safety, and smooth operation, the TCH-010-20 offers long-term value in demanding environments.
Typical Uses:
- Construction and structural steel erection
- Tall warehouse or facility installations
- Equipment maintenance and rigging operations
- Utility and energy sector applications
Key Features
- 1 Ton Lifting Capacity
- Rated to lift loads up to 2,200 lbs with confidence and safety.
- 20 ft Standard Lift Height
- Provides extended vertical access for high-lift operations.
- Heavy-Duty Steel Frame
- Constructed with forged and welded alloy steel components for long-term durability.
- Sealed Mechanical Load Brake
- Offers reliable load control with minimal maintenance requirements.
- Grade 80 Alloy Load Chain
- Engineered for strength, wear resistance, and long service life.

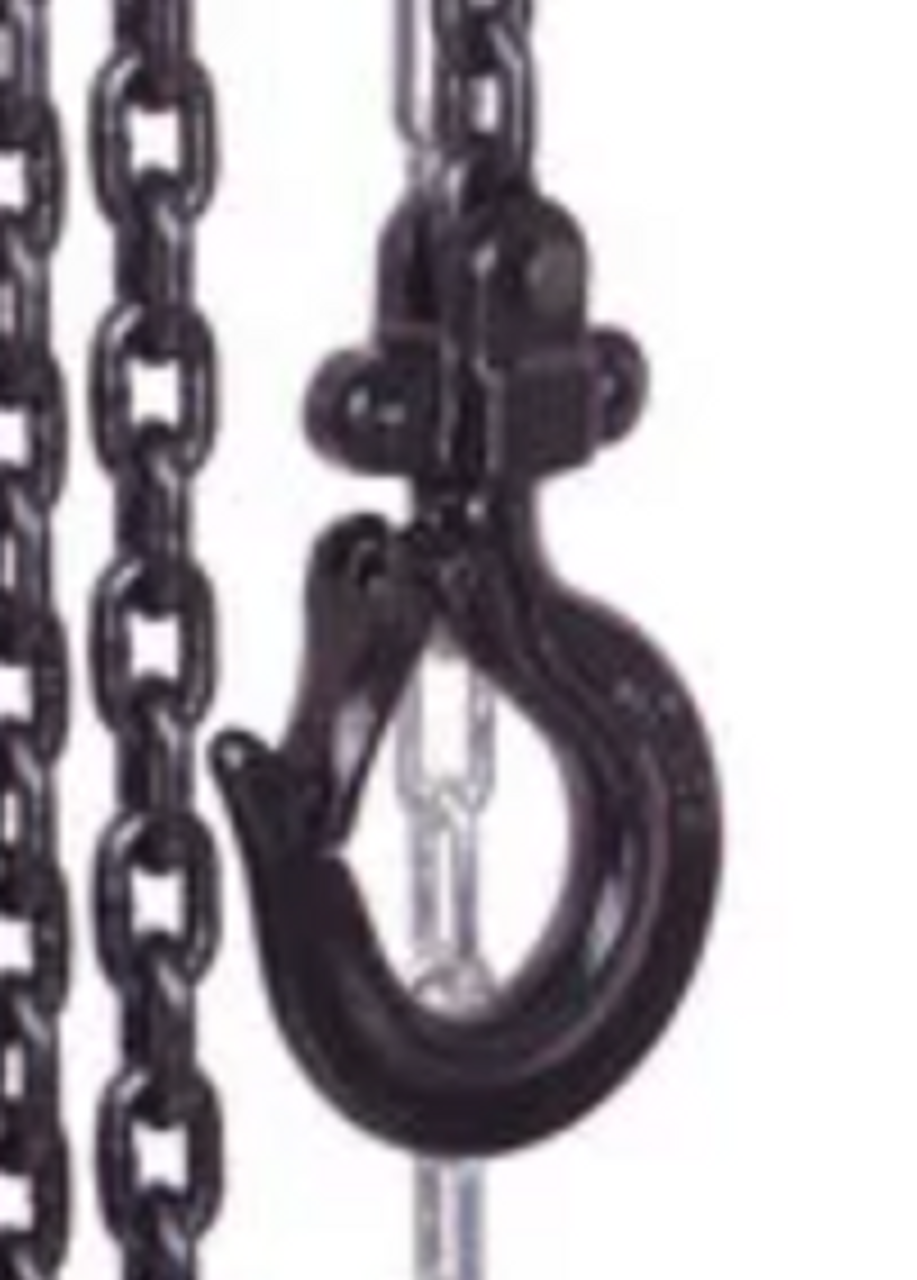

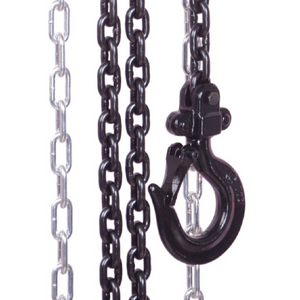

- Swivel Hooks with Safety Latches
- Forged steel hooks rotate 360° and include overload deformation indicators for enhanced safety.
- Corrosion-Resistant Finish
- Powder-coated housing and zinc-plated components provide weather resistance.
- Smooth Operation
- Integrated roller bearings reduce hand chain resistance for more efficient operation.
- Standards Compliant
- Complies with ASTM B30.21 for hoist safety and performance assurance.
Technical Specifications:
Model Number: TCH-010-20
Load Capacity: 1 Ton (2,200 lbs)
Lift Height: 20 Feet
Hand Chain Pull Force: ≤ 76 lbf
Load Chain Type: Grade 80 Alloy Steel
Chain Diameter: 6 mm
Hook Type: Forged Swivel with Safety Latch
Brake System: Sealed Mechanical Load Brake
Frame Construction: High-Strength Steel
Finish: Powder-Coated (Orange)
Net Weight: Approx. 43 lbs (19.5 kg)
Operating Temperature: -40°F to 140°F (-40°C to 60°C)
Standards Compliance: ASTM B30.21
Warranty: 3-Year Limited Manufacturer
