Product Overview

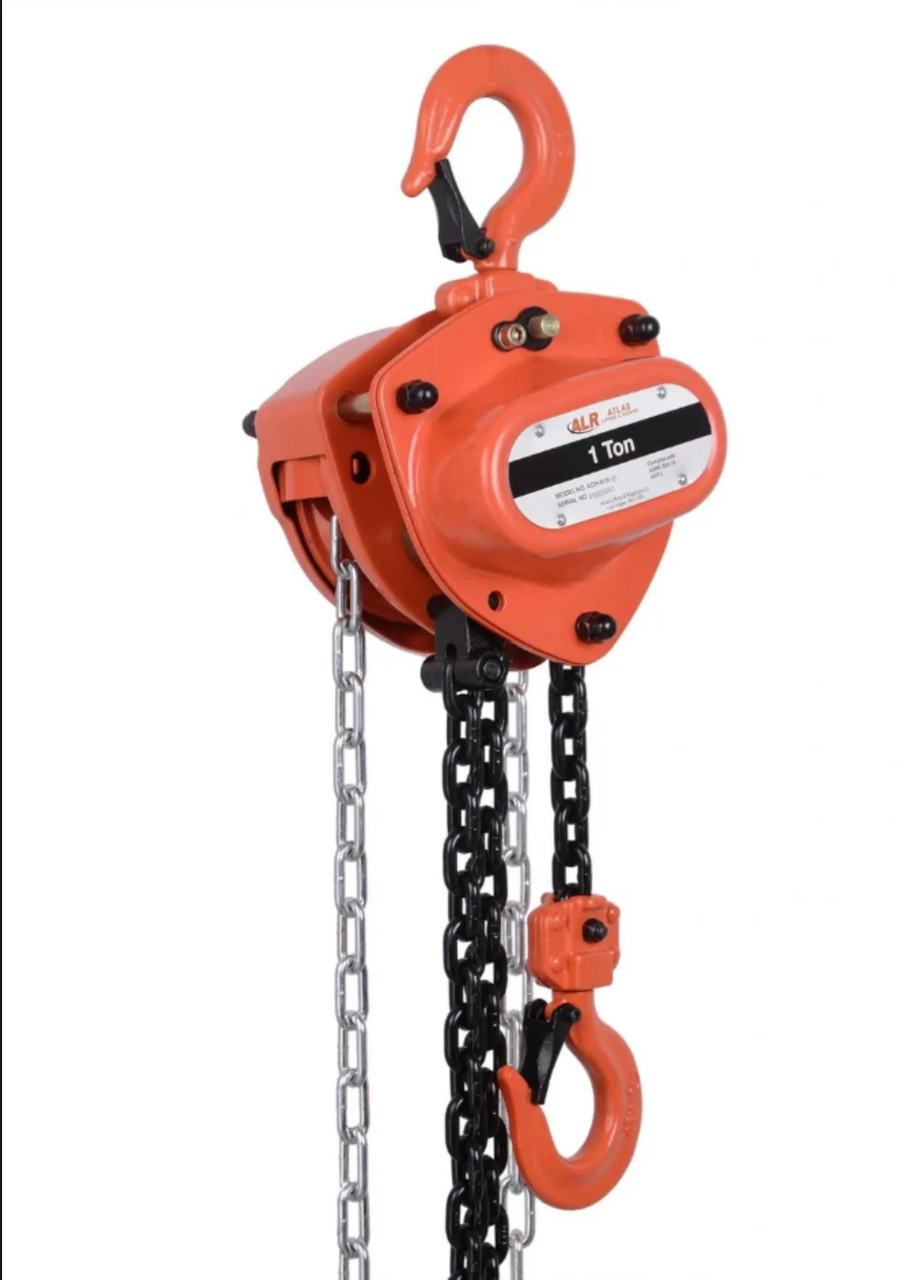

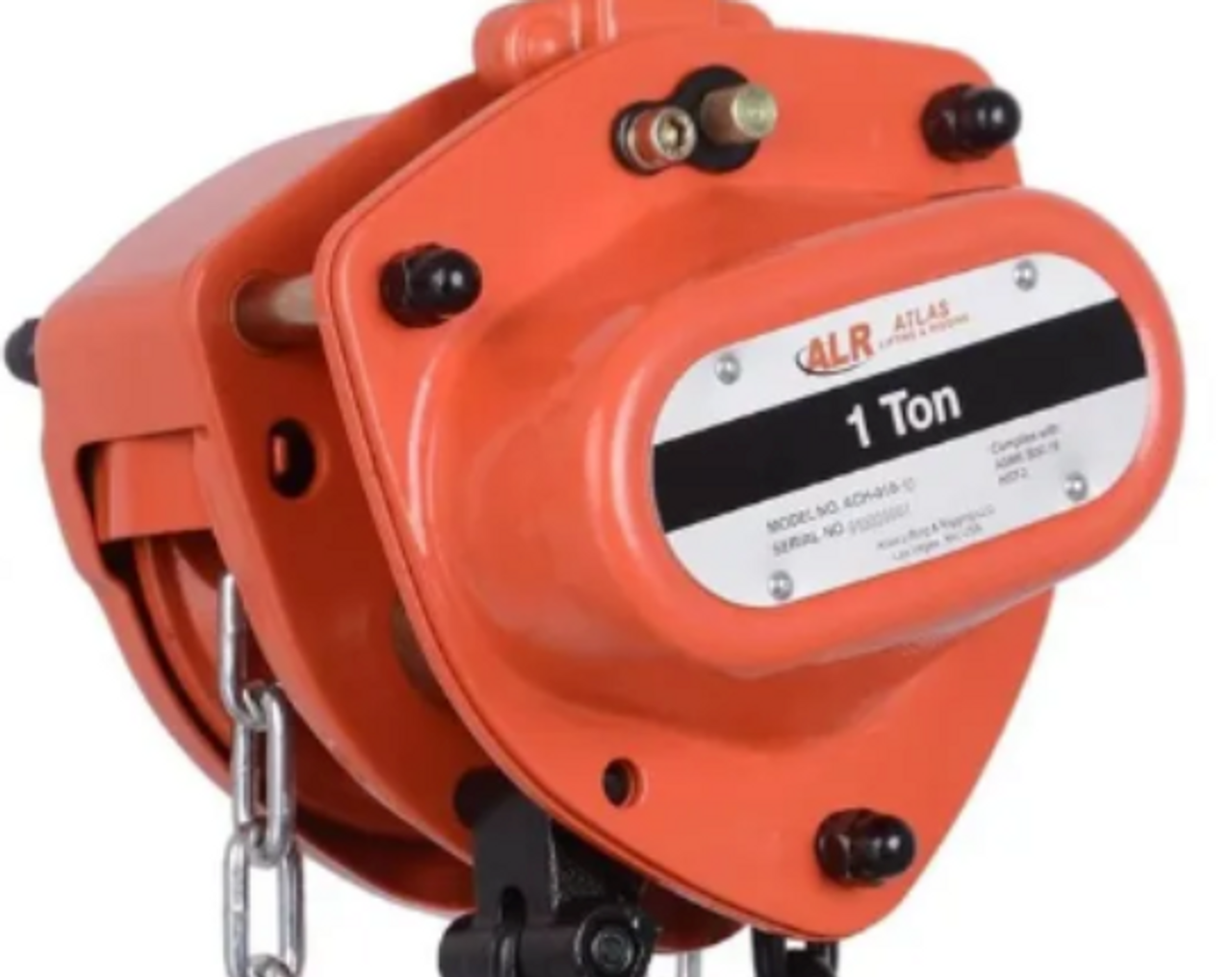

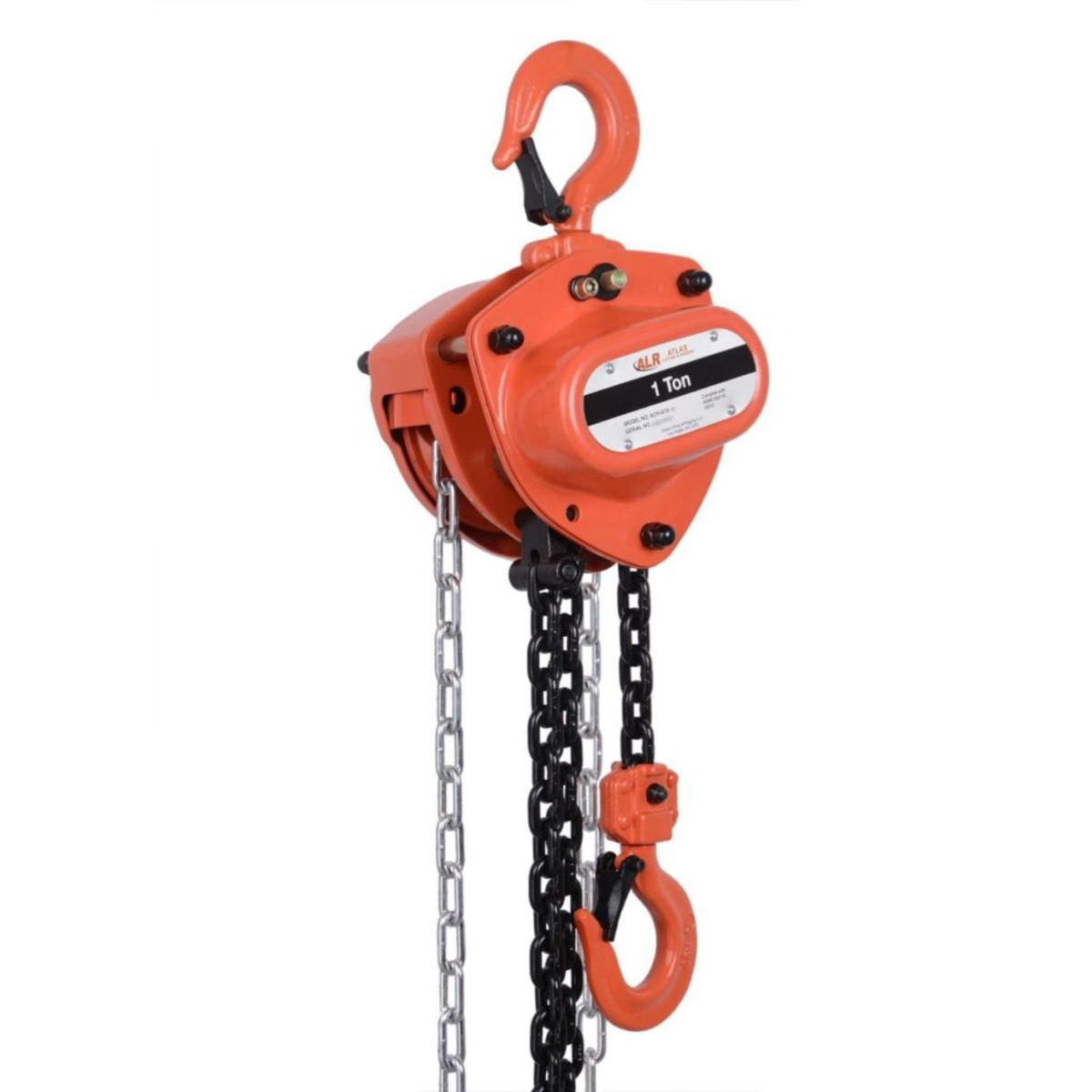

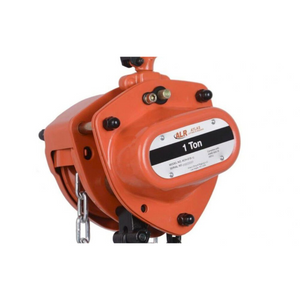

Atlas Lifting and Rigging ACH-010-10 Manual Chain Hoist
The ACH-010-10 Manual Chain Hoist from Atlas Lifting and Rigging is a rugged and reliable lifting solution designed for heavy-duty industrial use. With a 1-ton lifting capacity and a 10-foot lift height, this hoist combines strength, precision, and durability in a compact, easy-to-operate package. Whether being used in construction, manufacturing, maintenance, or rigging operations, this hoist delivers consistent performance and operator safety.
Built with high-quality components and a sealed gear system, the ACH-010-10 ensures smooth load handling and minimal maintenance. The ergonomic hand chain allows for effortless lifting, even in tight or elevated spaces.
Key Features:
- 1-Ton Lifting Capacity: Suitable for a wide range of heavy lifting tasks.
- 10-Foot Standard Lift: Ideal for most general-purpose lifting applications.
- Durable Steel Construction: Built to withstand harsh job site conditions.
- Precision Gear Mechanism: Provides smooth and efficient load control.
- Mechanical Load Brake: Ensures positive load holding for enhanced safety.
- Compact, Lightweight Design: Easy to transport, store, and operate.
- 360° Rotating Hook with Safety Latch: Increases flexibility and ensures secure load attachment.
Specifications:
- Model: ACH-010-10
- Capacity: 1 Ton (2,000 lbs / 907 kg)
- Lift Height: 10 ft (3 m)
- Hand Chain Drop: Approx. 2 ft less than lift height
- Headroom: Approx. 12–15 inches (varies slightly)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hook Type: Forged steel swivel hook with safety latch
- Brake System: Mechanical Weston-style load brake
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 22–26 lbs
The Atlas ACH-010-10 is designed for professionals who require reliability and safety in their lifting equipment. It’s a dependable workhorse for any operation that requires lifting heavy loads with confidence and control.
