Product Overview

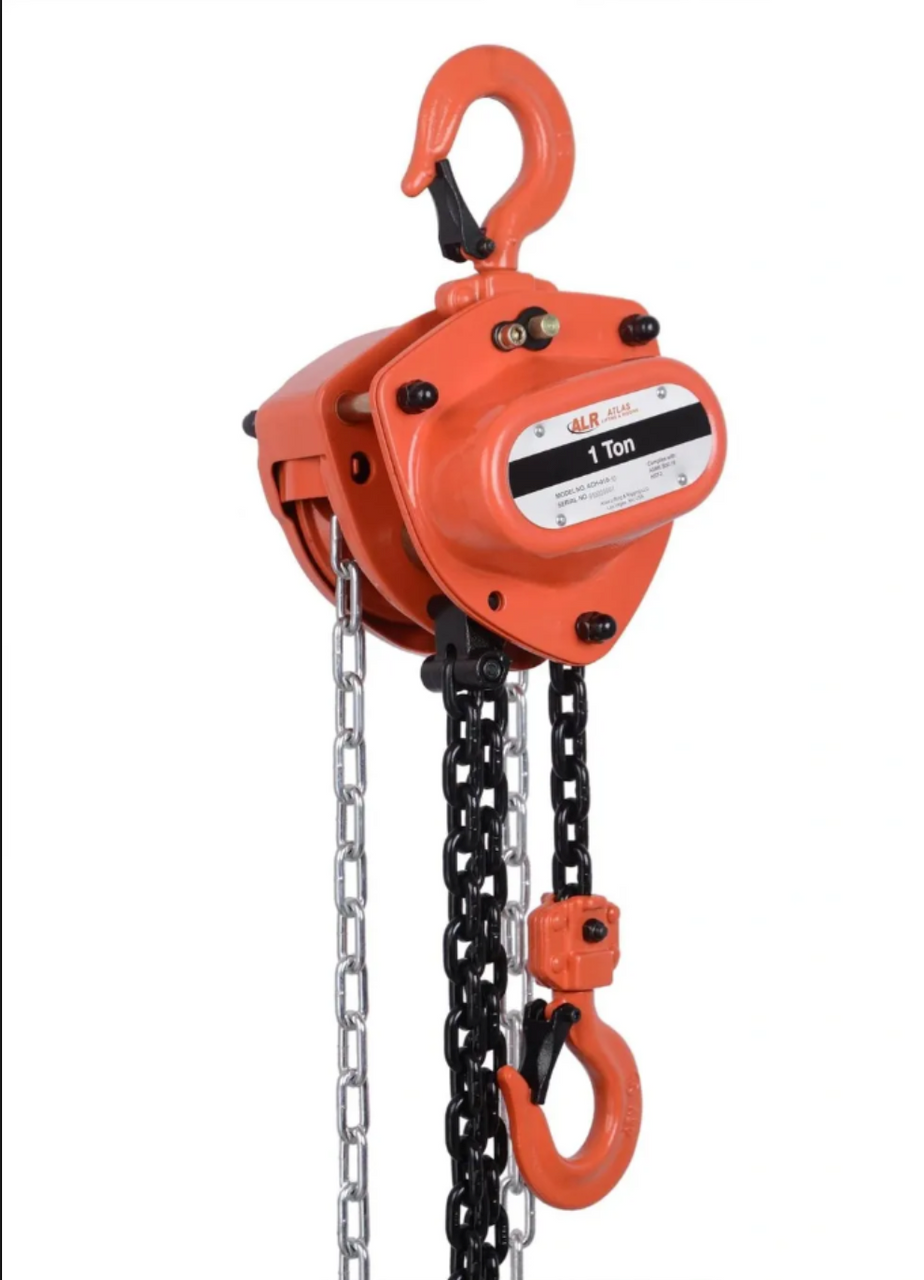

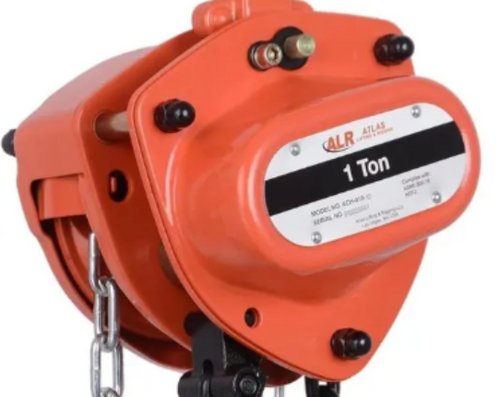

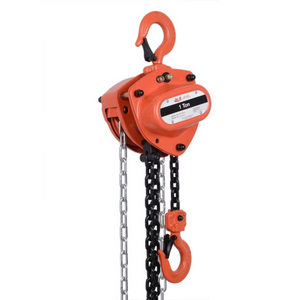

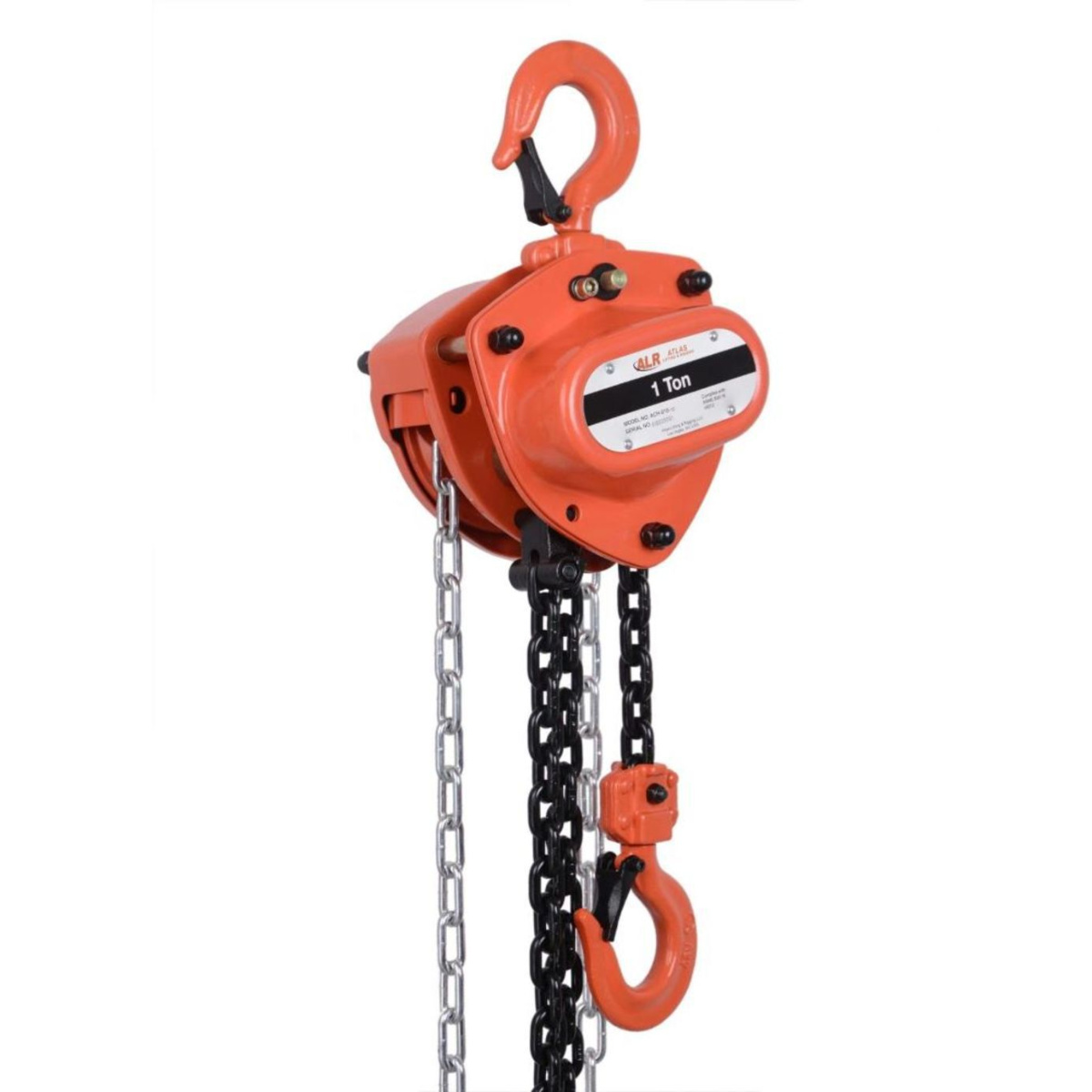

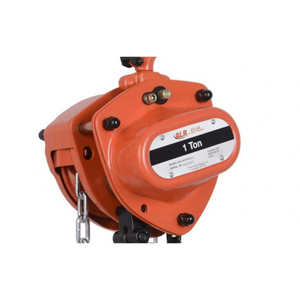

Atlas Lifting and Rigging ACH-010-20 Manual Chain Hoist
The ACH-010-20 Manual Chain Hoist from Atlas Lifting and Rigging is engineered for high-reach lifting tasks that demand both performance and durability. With a 1-ton capacity and an extended 20-foot lift height, this hoist is ideal for applications involving elevated rigging points, tall structures, or deep well-type lifts.
Constructed with robust, all-steel components and a sealed gear system, the ACH-010-20 delivers reliable load control, minimal maintenance, and long-term use in challenging environments. Its smooth hand chain operation and compact frame make it user-friendly, even when working in tight or elevated spaces.
Key Features:
- Extended 20-foot Lift Height: Designed for vertical applications requiring longer reach.
- 1-Ton Capacity: Suitable for lifting equipment, beams, pipe, and structural components.
- Durable Steel Construction: Tough, impact-resistant body for long service life.
- Mechanical Load Brake: Weston-style brake securely holds the load during lifts and pauses.
- Smooth Hand Chain Operation: Reduces operator fatigue and provides precise control.
- Swivel Hooks with Safety Latches: Allow full rotation for safer rigging and reduced chain twist.
- Low Maintenance Design: Enclosed gearing protects against dirt and debris.
Specifications:
- Model: ACH-010-20
- Capacity: 1 Ton (2,000 lbs / 907 kg)
- Lift Height: 20 ft (6 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 12–15 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 35–38 lbs
The Atlas ACH-010-20 is the go-to solution for professionals who need extended reach without sacrificing lifting power or safety. Whether you're lifting from a platform, mezzanine, or pit, this hoist delivers confidence and control with every pull.
