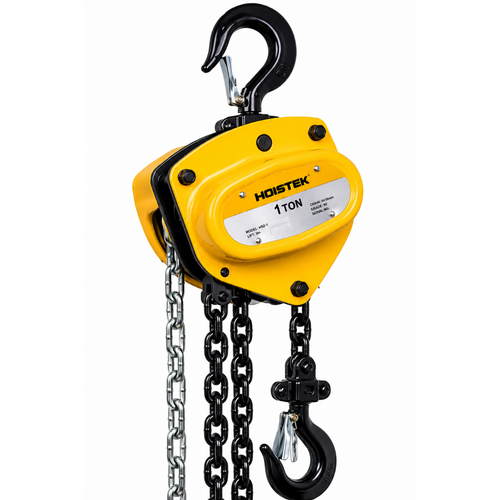

Atlas Lifting & Rigging HOISTEK HCH-010-20 Chain Hoist

1 Ton Manual Chain Hoist – 20 Ft. Lift

The Atlas HOISTEK HCH-010-20 is a high-performance manual chain hoist engineered for extended-lift applications in demanding industrial and jobsite environments. With a 1-ton lifting capacity and 20 feet of lift, this hoist is built to handle elevated rigging tasks while maintaining safety, reliability, and ease of use.

Featuring a rugged steel frame, precision-machined gearing, and a hardened Grade 80 alloy chain, the HCH-010-20 provides dependable lifting power and smooth chain operation. It's great for construction, equipment maintenance, material handling, and general-purpose industrial lifting where extended reach is required.

Key Features:

• Rated Capacity: 1 Ton (2,000 lbs)
• Lift Height: 20 Feet
• Heavy-Duty Steel Construction: Designed for durability in harsh work environments
• Grade 80 Load Chain: High-strength alloy steel chain for maximum wear resistance
• Mechanical Load Brake: Automatic Weston-style brake securely holds loads in position
• Swivel Hooks: Top and bottom forged steel hooks with 360° rotation and locking safety latches
• Smooth Operation: Precision gearing reduces pull force and ensures controlled lifting
• Extended Reach Capability: Ideal for taller applications requiring vertical access

Specifications:

SpecificationDetails

Model Number HCH-010-20

Rated Capacity 1 Ton (2,000 lbs)

Lift Height 20 Feet

Load Chain Material Grade 80 Alloy Steel

Load Chain Diameter 6 mm (approx.)

Effort to Lift Full Load ~33 lbs

Headroom (hook to hook) Approx. 13 inches

Hook Type Forged Steel with Safety Latch

Brake Type Mechanical Weston-Style Load Brake

Net Weight Approx. 32–35 lbs

Compliance Meets ASME B30.16, CE Certified
