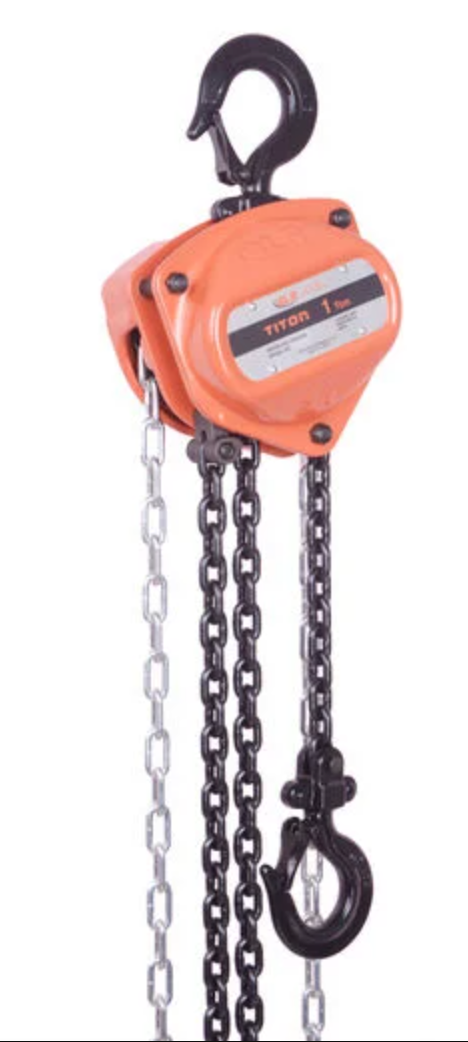

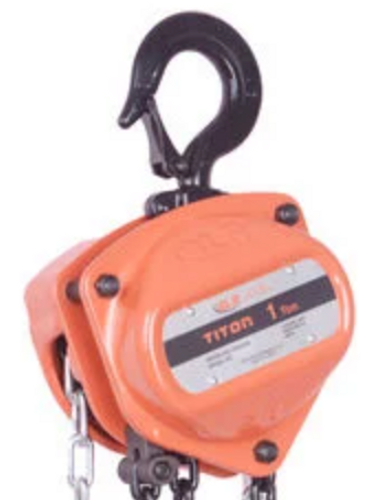

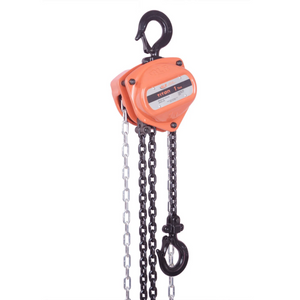

Atlas Titon TCH-010-10 Manual Chain Hoist — 1 Ton Capacity, 10 ft Lift

Product Overview:

The Atlas Titon TCH-010-10 is a manual chain hoist designed to deliver safe, reliable lifting performance in industrial, construction, and maintenance environments. Having a 1-ton load capacity and 10-foot lift height, this hoist provides you with extended reach for elevated lifting tasks while maintaining simplicity and mechanical efficiency. Built for industry with high-strength components and a precision braking system, the TCH-010-10 ensures durability, safety, and consistent operation under demanding conditions.

Ideal For:

• Industrial lifting
• Construction sites
• Rigging and maintenance operations
• Workshops and fabrication facilities

Key Features

• Extended 10 ft Lift Height
• Increased vertical reach for applications requiring greater lifting clearance.
• 1 Ton (2,200 lbs) Load Capacity
• Suitable for a wide range of moderate-to-heavy lifting tasks.
• Durable Steel Construction
• Fabricated with high-strength alloy steel side plates and forged hooks for long-term durability.
• Sealed Mechanical Load Brake
• Provides secure load control and consistent braking performance, even in the most demanding environments.

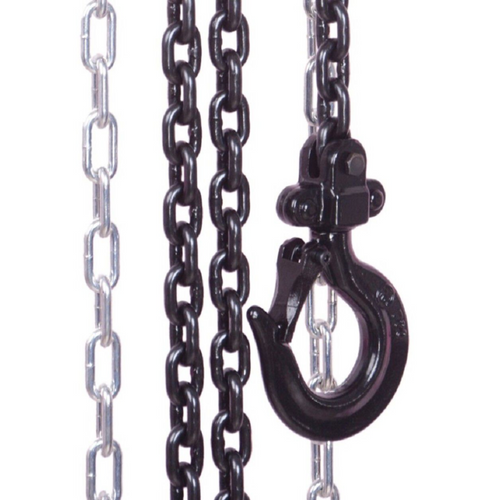

• Grade 80 Load Chain
• High-quality, heat-treated alloy steel chain for optimal strength and resistance to wear.
• Corrosion-Resistant Finish
• Powder-coated housing and zinc-coated components enhance longevity in exposed conditions.
• Smooth Operation
• Integrated roller bearings ensure efficient hand chain movement, reducing operator fatigue.
• Built-In Overload Indicators
• Hooks include permanent deformation indicators to warn of overloading.
• Compact, Low-Headroom Design
• Ideal for tight or restricted workspaces.
• Complies with Safety Standards
• Meets or exceeds ASTM B30.21 requirements for chain hoist safety and performance.

Technical Specifications

SpecificationDetails

Model Number TCH-010-10

Load Capacity 1 Ton (2,200 lbs)

Lift Height 10 Feet

Hand Chain Pull Force ≤ 76 lbs

Load Chain Type Grade 80 Alloy Steel

Chain Diameter 6 mm

Hook Type Forged Swivel with Safety Latch

Brake System Sealed Mechanical Load Brake

Finish Powder-Coated (Orange)

Construction Material High-Strength Steel

Net Weight Approx. 28 lbs (12.7 kg)

Temperature Range -40°F to 140°F (-40°C to 60°C)

Standards Compliance ASTM B30.21

Warranty 3-Year Limited Manufacturer
