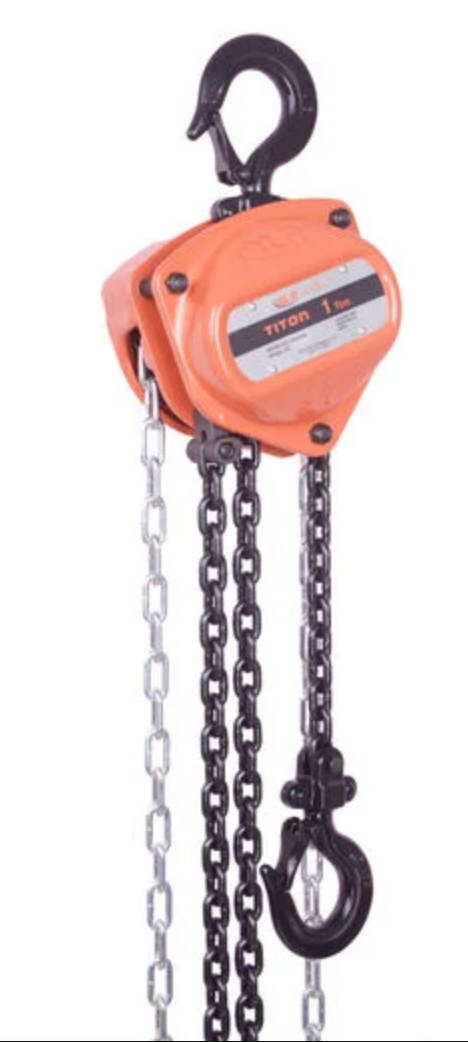

Atlas Titon TCH-010-30 Manual Chain Hoist — 1 Ton Capacity, 30 ft Lift

The Atlas Titon TCH-010-30 manual chain hoist is designed for heavy-duty lifting tasks that require an extended vertical reach. With a 1-ton (2,200 lbs) rated capacity and an impressive 30-foot lift height, this hoist delivers reliable performance in high-clearance industrial environments. Precision-built for durability, safety, and ease of operation, the TCH-010-30 is a trusted solution for construction professionals, rigging crews, and facility maintenance teams who require dependable lifting over longer distances.

Recommended Applications:

• Overhead lifting in tall structures or high-bay facilities
• Long-span rigging and assembly operations
• Power plants, shipyards, and tower construction
• Elevated maintenance and mechanical installation work

Key Features

• Extended 30 ft Lift Height
• Designed for applications requiring high vertical reach or deep pit access.
• 1 Ton (2,200 lbs) Load Rating
• Provides safe, efficient lifting for standard industrial and construction tasks.
• Heavy-Duty Steel Construction
• Fabricated with alloy steel side plates, welded stay bolts, and forged hooks for rugged durability.
• Grade 80 Alloy Load Chain
• Heat-treated steel chain resists wear and provides high tensile strength.
• Sealed Mechanical Brake System
• Maintains reliable load control while protecting internal components from dust and moisture.

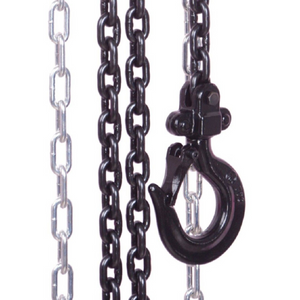

• 360° Swivel Hooks with Safety Latches
• Forged hooks include overload deformation indicators and smooth rotation for optimal rigging flexibility.
• Powder-Coated Exterior & Zinc Hardware
• Corrosion-resistant finishes enhance longevity in outdoor and high-humidity environments.
• Effortless Chain Operation
• Smooth-running roller bearings minimize hand chain resistance, providing a more comfortable operation.
• Standards Compliant
• Fully conforms to ASTM B30.21 safety and performance requirements.
• Technical Specifications

Model Number: TCH-010-30

Load Capacity: 1 Ton (2,200 lbs)

Lift Height: 30 Feet

Hand Chain Pull Force: ≤ 76 lbf

Load Chain Type: Grade 80 Alloy Steel

Chain Diameter: 6 mm

Hook Type: Forged Swivel with Safety Latch

Brake System: Mechanical Load Brake (Sealed)

Construction Material:  High-Strength Steel

Finish: Powder-Coated (Orange)

Net Weight: Approx. 58 lbs (26.3 kg)

Operating Temperature: -40°F to 140°F (-40°C to 60°C)

Standards Compliance: ASTM B30.21

Warranty: 3-Year Limited Manufacturer
