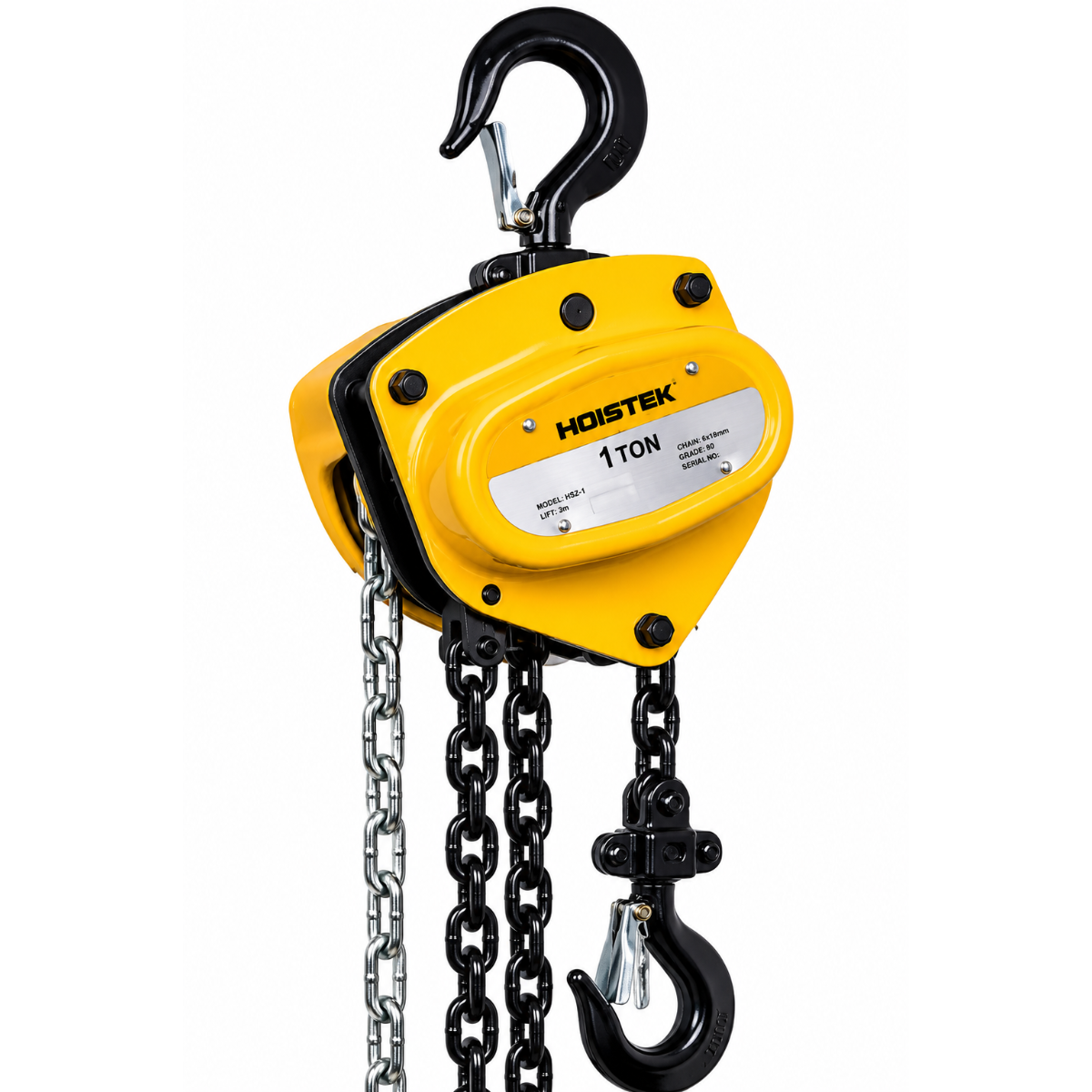

Atlas Lifting & Rigging HOISTEK HCH-010-10 Chain Hoist

1 Ton Manual Chain Hoist – 10 Ft. Chain

The Atlas HOISTEK HCH-010-10 is a premium-grade manual chain hoist engineered for precision lifting and dependable performance in industrial environments. Designed with durable components and a compact profile, this 1-ton hoist delivers reliable operation for construction, maintenance, fabrication, and warehouse applications.

With a 10-foot standard lift and a hardened alloy steel chain, the HCH-010-10 offers smooth operation, high load security, and long-lasting performance. The hoists design and safety features make it an ideal solution for both stationary and portable lifting tasks.

Key Features:

• Rated Capacity: 1 Ton (2,000 lbs)
• Standard Lift Height: 10 Feet
• Durable Steel Housing: Provides rugged protection for internal components
• Grade 80 Load Chain: Precision-machined alloy steel for high tensile strength and wear resistance
• Mechanical Load Brake: Automatic braking system ensures secure load holding and controlled descent
• Forged Swivel Hooks: Top and bottom hooks with 360° rotation and safety latches for secure attachment
• Low Headroom Design: Ideal for confined lifting spaces
• Smooth Chain Operation: Efficient gearing reduces effort and increases control during lifting and lowering

Specifications:

SpecificationDetails

Model Number HCH-010-10

Rated Capacity 1 Ton (2,000 lbs)

Standard Lift 10 Feet

Load Chain Material Grade 80 Alloy Steel

Load Chain Diameter 6 mm (approx.)

Effort to Lift Full Load ~33 lbs (varies slightly)

Headroom (hook to hook) Approx. 13 inches

Hook Type Forged Steel with Safety Latch

Brake Type Mechanical Weston-Style Load Brake

Net Weight Approx. 22–25 lbs

Compliance Meets ASME B30.16, CE Certified
