Atlas Lifting and Rigging Lever Hoist, 9 Ton, 19,841 lb, 5 ft Lift, With Overload Protection

Write a Review
$3,245.30
$1,825.88
(You save $1,419.42 )
SKU: ALH-090-05-OP
Availability: Subject to Availability
Weight: 102.51 LBS
Width: 22.05 (in)
Height: 9.06 (in)
Depth: 14.96 (in)
Shipping: Calculated at Checkout
Capacity: 10,000 - 19,999 lbs
Lift: 5 ft
Overload Protection: Yes
Adding to cart… The item has been added
Atlas Lifting and Rigging Lever Hoist, 9 Ton, 19,841 lb, 5 ft Lift, With Overload Protection

Atlas Lifting and Rigging Lever Hoist, 9 Ton, 19,841 lb, 5 ft Lift, With Overload Protection

$3,245.30
$1,825.88
(You save $1,419.42 )
Description

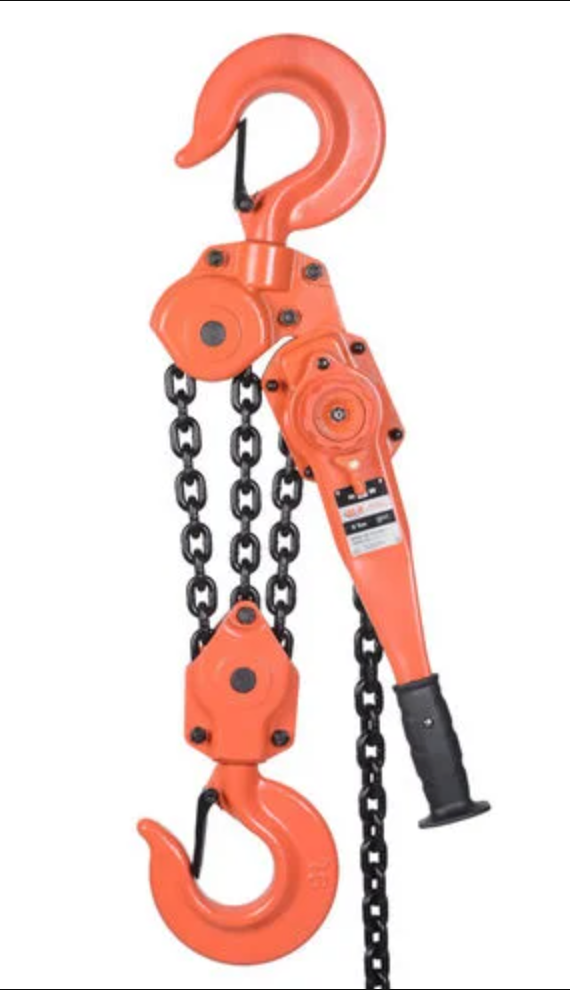

Atlas Lifting and Rigging ALH-090-05-OP Lever Hoist with Overload Protection

Built for superior performance under extreme load conditions, the ALH-090-05-OP delivers unmatched strength and built-in safety in a compact, rugged hoist. With a 9-ton capacity and 5-foot lift height, this lever hoist is ideal for high-capacity lifting in tight spaces, such as shipyards, steel fabrication yards, rail maintenance, and structural rigging operations.

The addition of integrated mechanical overload protection ensures that the hoist disengages lifting motion when load limits are exceeded, safeguarding both the user and the equipment. Its heavy-duty build, precision gearing, and free-chaining capability enable efficient and controlled operation even in the most demanding environments.

Key Features:

  • 9-Ton Capacity: Designed for heavy industrial and construction applications.
  • 5-Foot Lift Height: Compact and ideal for short-span, high-weight lifts.
  • Mechanical Overload Protection: Prevents operation beyond rated capacity for increased safety.
  • Free-Chaining Function: Enables quick slack chain take-up without load.

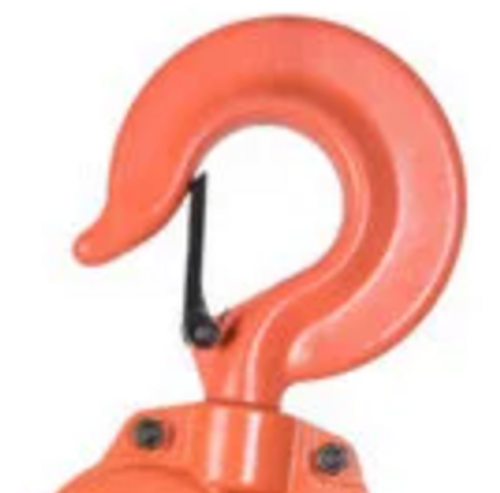

  • Forged Swivel Hooks with Safety Latches: Allow secure and flexible attachment points.
  • Three-Position Selector Switch: Simple control for lifting, lowering, or neutral modes.
  • Heat-Treated Alloy Steel Chain: Durable and resistant to wear, corrosion, and fatigue.
  • Ergonomic Lever Handle: Ensures high-leverage, low-effort operation.

Specifications:

  • Model: ALH-090-05-OP
  • Capacity: 9 Tons (18,000 lbs / 8,165 kg)
  • Lift Height: 5 ft (1.5 m)
  • Overload Protection: Integrated mechanical slip clutch
  • Hook Type: Forged swivel hooks with safety latches
  • Load Chain: Heat-treated alloy steel
  • Lever Handle Length: Approx. 20 inches
  • Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
  • Net Weight: Approx. 140 lbs (63.5 kg)

The Atlas ALH-090-05-OP combines industrial-grade lifting power with essential built-in safety, making it the trusted solution for professionals working in high-stakes, heavy-lift environments.

Warranty Information
All products sold by Atlas Lifting & Rigging are warranted to be free of defects in material and workmanship from the date of shipment, with a standard limited warranty of 2 years that ALR extends by an additional 1 year (for a total of 3 years) if the product is registered through www.alrlift.com, while accessories carry a limited warranty of one year from the date of receipt; this warranty covers only the initial purchaser from the date of delivery and applies to defects in workmanship or materials subject to stated limitations, but does not cover failures due to misuse, abuse, negligence, accidents, normal wear-and-tear, improper repair, alterations, or lack of maintenance, and customers needing repair or service should contact ALR Technical Service at 1-833-ALR-LIFT, available 8AM to 5PM Monday through Friday.
