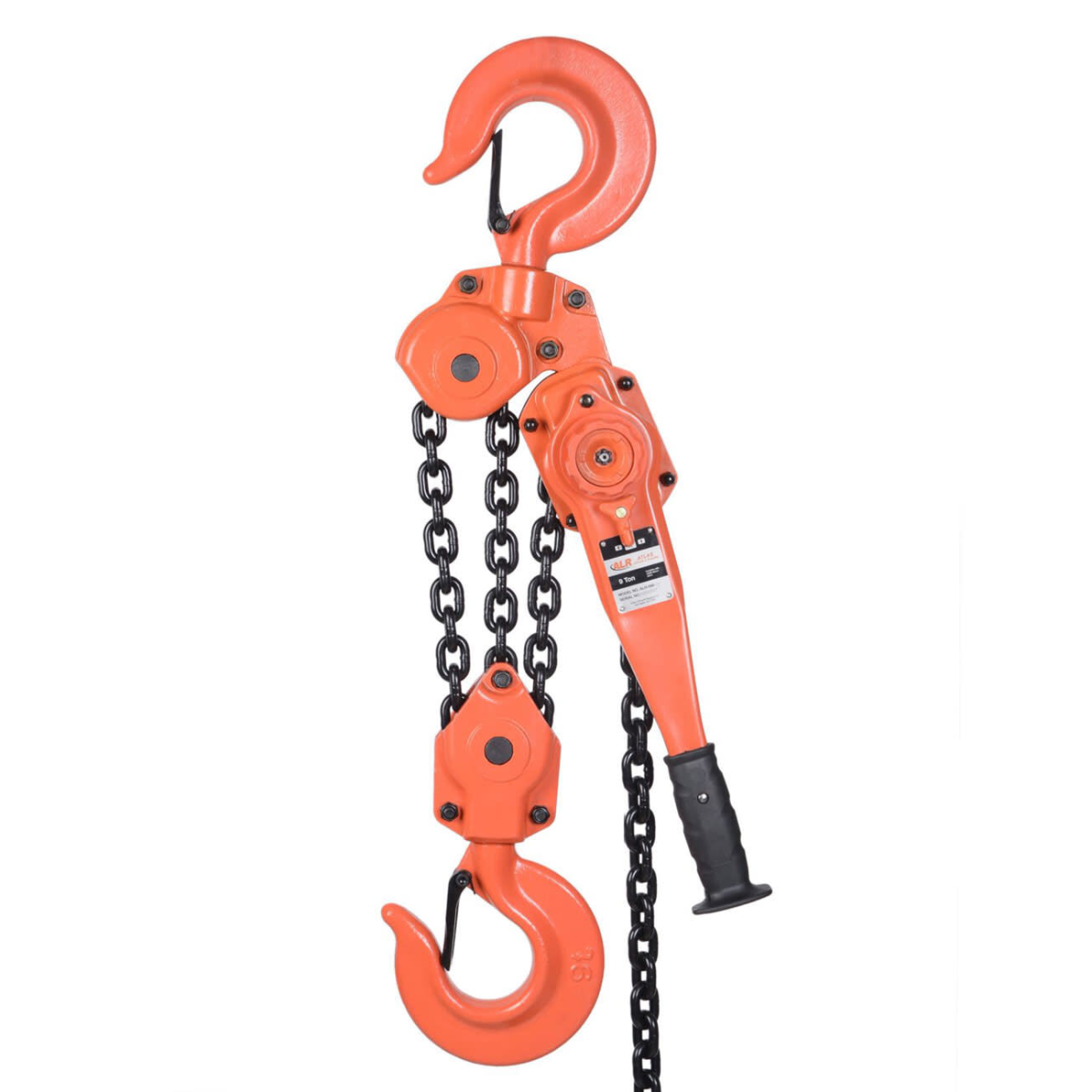

Atlas Lifting and Rigging ALH 9 Ton Lever Chain Hoist 20 Ft. Chain with Overload Protection

Atlas Lifting and Rigging ALH-090-20-OP Lever Hoist with Overload Protection

Engineered for the most demanding lifting scenarios, the ALH-090-20-OP lever hoist delivers powerful performance with a focus on safety and control. With a 9-ton working load limit, a 20-foot lift height, and built-in mechanical overload protection, this hoist is ideal for critical lifting applications in shipyards, industrial fabrication, energy infrastructure, and heavy construction.

Its all-steel construction, precision-machined gearing, and forged swivel hooks provide long-lasting reliability. The overload protection helps safeguard operators and equipment by disengaging the lifting mechanism if the rated capacity is exceeded, preventing overloading and potential system failure.

Key Features:

• 9-Ton Capacity: Handles large, heavy loads with stability and strength.
• 20-Foot Lift Height: Extended reach for vertical lifting applications.
• Mechanical Overload Protection: Automatically limits lifting under excessive load.
• Free-Chaining Mechanism: Allows rapid setup and adjustment without gear engagement.

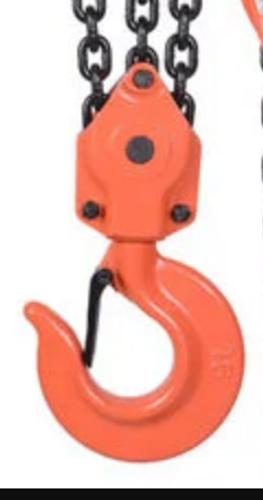

• Forged Swivel Hooks with Safety Latches: Secure connections with 360° rotation.
• Three-Position Selector Switch: Simplifies lift, lower, and neutral functions.
• Heat-Treated Alloy Load Chain: Durable, high-strength chain for industrial use.
• Heavy-Duty Lever Handle: Offers efficient operation with comfortable grip and control.

Specifications:

• Model: ALH-090-20-OP
• Capacity: 9 Tons (18,000 lbs / 8,165 kg)
• Lift Height: 20 ft (6.1 m)
• Overload Protection: Mechanical slip clutch integrated
• Hook Type: Forged swivel hooks with safety latches
• Load Chain: Heat-treated alloy steel
• Lever Handle Length: Approx. 20 inches
• Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Net Weight: Approx. 211 lbs (95.7 kg)

The Atlas ALH-090-20-OP is built for professionals who demand extended lifting capability and advanced safety features—all backed by the trusted strength of Atlas Lifting and Rigging.
