Product Overview

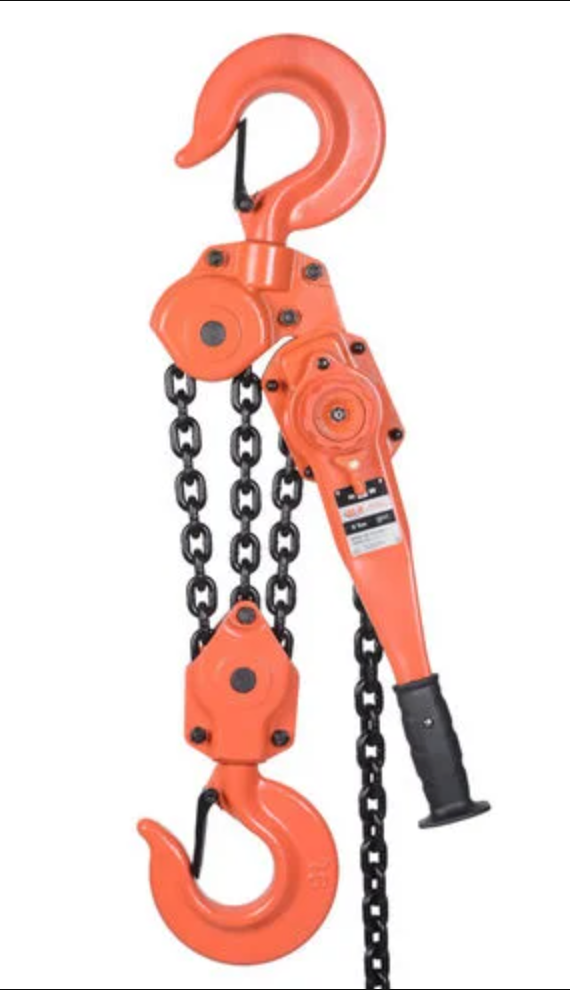

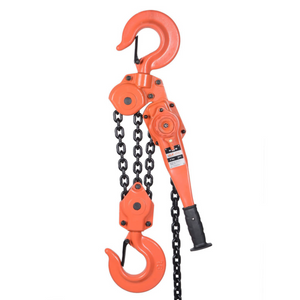

Atlas Lifting and Rigging ALH-090-10-OP Lever Hoist with Overload Protection
The ALH-090-10-OP is engineered for the toughest lifting environments, where high-capacity performance and safety are non-negotiable. With a 9-ton capacity and 10-foot lift height, this lever hoist combines heavy-duty lifting power with mechanical overload protection for increased safety and peace of mind during critical lifts.
Ideal for steel erection, infrastructure work, industrial maintenance, and handling heavy equipment, the ALH-090-10-OP features rugged construction, forged swivel hooks, and a free-chaining mechanism for quick setup. The built-in overload protection disengages the lifting function if the rated capacity is exceeded, helping prevent accidents and damage.
Key Features:
- 9-Ton Lifting Capacity: Built to handle substantial loads in demanding environments.
- 10-Foot Lift Height: Provides extended reach for high-clearance lifts.
- Mechanical Overload Protection: Automatically prevents operation under excessive load.
- Free-Chaining Mechanism: Enables quick adjustment and rigging without load.

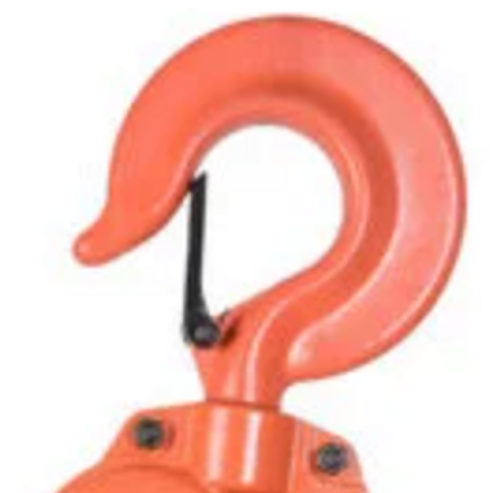

- Forged Swivel Hooks with Safety Latches: Strong, secure connections with flexibility.
- Three-Position Selector Switch: Simple and efficient control of lift, lower, and neutral modes.
- Heat-Treated Alloy Steel Load Chain: Delivers long-lasting performance and strength.
- Heavy-Duty Lever Handle: Optimized for leverage and comfort under high-torque operation.
Specifications:
- Model: ALH-090-10-OP
- Capacity: 9 Tons (18,000 lbs / 8,165 kg)
- Lift Height: 10 ft (3.0 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 20 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 158 lbs (71.7 kg)
The Atlas ALH-090-10-OP is the ideal solution when your lifting needs demand serious strength, extended reach, and the added assurance of built-in overload safety.
