Product Overview

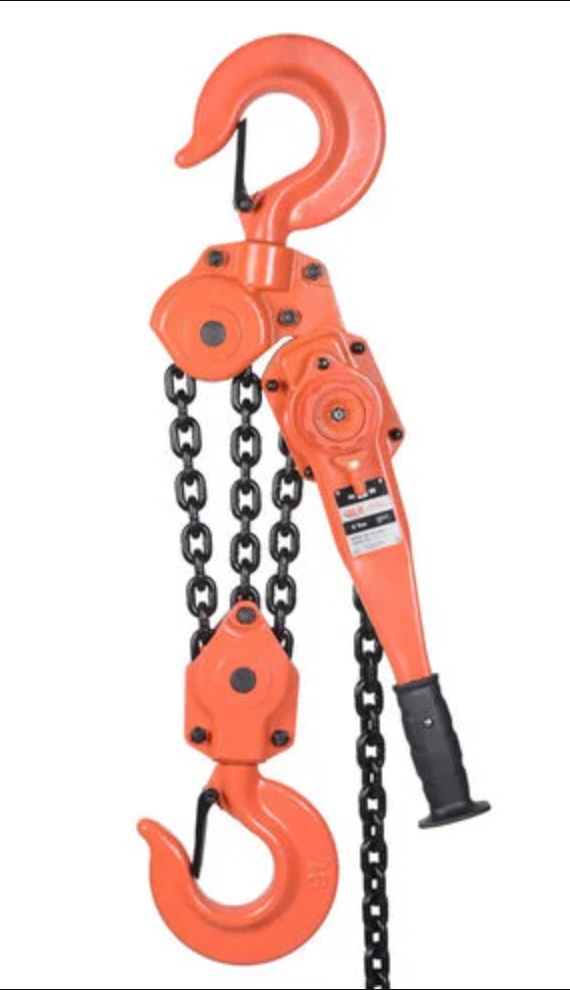

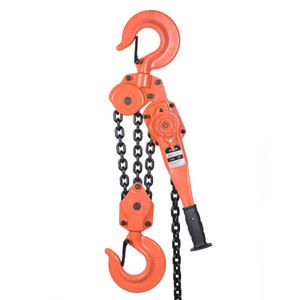

Atlas Lifting and Rigging ALH-090-15-OP Lever Hoist with Overload Protection
The ALH-090-15-OP is designed to handle high-capacity lifting with extended reach while providing a critical layer of safety through its integrated mechanical overload protection. Designed with a 9-ton working load limit and a 15-foot lift height, this lever hoist is ideal for large-scale construction, heavy machinery handling, utility work, and shipyard applications.
The rugged all-steel construction, durable load chain, and forged swivel hooks make it a dependable solution under punishing jobsite conditions. With overload protection, this hoist prevents lifting operations beyond rated capacity, helping to reduce the risk of equipment damage and enhance operator safety.
Key Features:
- 9-Ton Capacity: Supports large, heavy loads across a wide range of industrial uses.
- 15-Foot Lift Height: Extended chain length for greater vertical flexibility.
- Integrated Overload Protection: Limits lifting motion when the rated load is exceeded.
- Free-Chaining System: Enables rapid chain adjustment and setup without engaging the gear system.
- Forged Swivel Hooks with Safety Latches: Allow secure, adaptable rigging connections.
- Three-Position Selector: Smooth control over lifting, lowering, and neutral operations.
- Heat-Treated Alloy Steel Chain: Built to resist fatigue, wear, and environmental stress.
- Heavy-Duty Lever Handle: Provides high torque efficiency with ergonomic handling.
Specifications:
- Model: ALH-090-15-OP
- Capacity: 9 Tons (18,000 lbs / 8,165 kg)
- Lift Height: 15 ft (4.6 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 20 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 183 lbs (83 kg)
The Atlas ALH-090-15-OP is a high-strength, safety-enhanced lever hoist designed to meet the demands of heavy lifting, offering a longer reach and total operational control.
