Product Overview

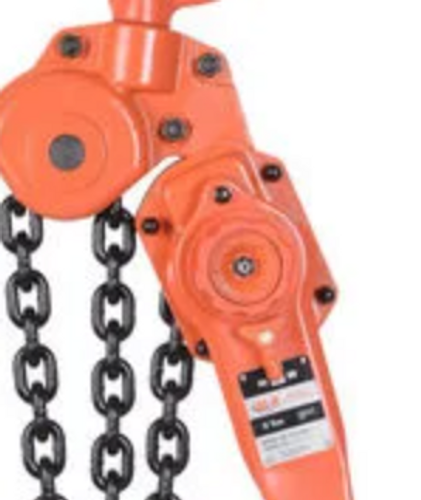

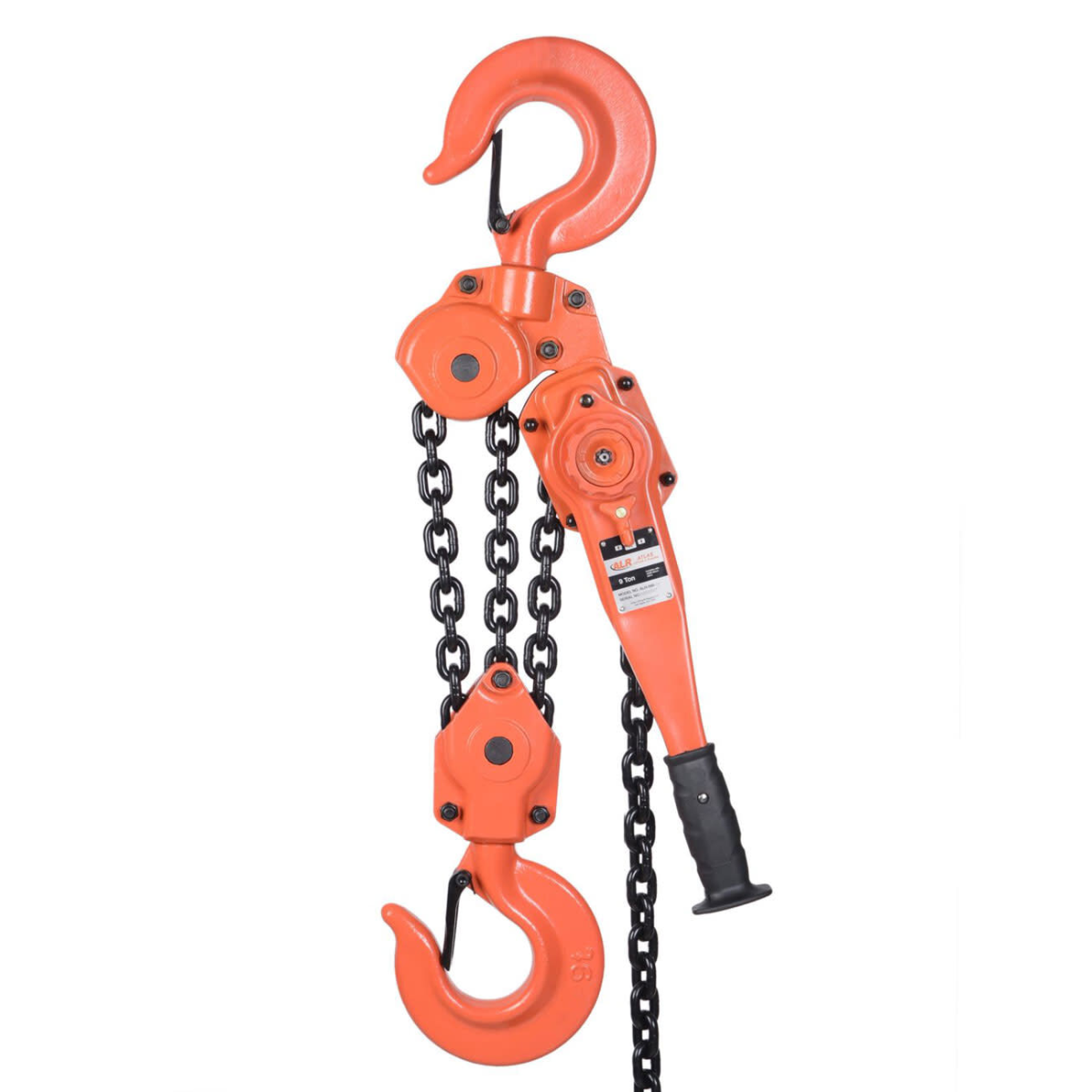

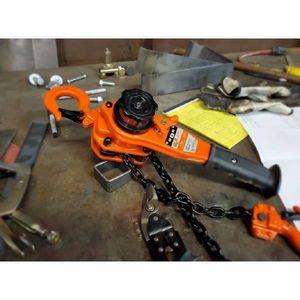

Atlas Lifting and Rigging ALH-090-15 Lever Hoist
Designed for maximum strength and extended vertical reach, the ALH-090-15 is a rugged, high-capacity lever hoist engineered for tough industrial and construction environments. With a 9-ton working load limit and 15-foot lift height, this hoist is ideal for heavy rigging applications that require both power and range.
Its steel housing, forged swivel hooks, and precision gearing ensures reliable, consistent performance under heavy stress. The free-chaining feature allows for quick setup, while the three-position selector provides smooth control over lifting, lowering, and neutral positions.
Key Features:
- 9-Ton Load Capacity: Built for lifting extremely heavy loads with confidence.
- 15-Foot Lift Height: Extra-long chain for tall lifts or deeper lowering reach.
- Free-Chaining Function: Speeds up slack chain adjustments for efficient rigging.

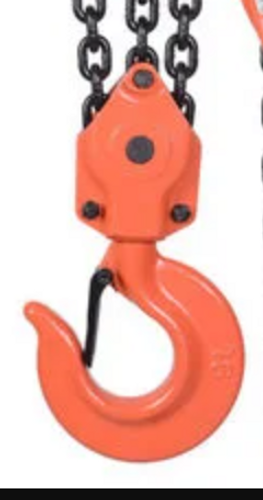

- Forged Swivel Hooks with Safety Latches: Secure and versatile attachment options.
- Three-Position Selector Switch: Streamlined operation in lifting, lowering, and neutral modes.
- Heat-Treated Alloy Steel Chain: Withstands high-stress applications with long-term durability.
- Ergonomic Lever Handle: Offers optimal mechanical advantage with minimal operator effort.
Specifications:
- Model: ALH-090-15
- Capacity: 9 Tons (18,000 lbs / 8,165 kg)
- Lift Height: 15 ft (4.6 m)
- Overload Protection: Not included
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 20 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 180 lbs (81.6 kg)
The Atlas ALH-090-15 is the right choice when the job calls for high-capacity lifting with additional vertical range — built tough for uncompromising reliability.
