Product Overview

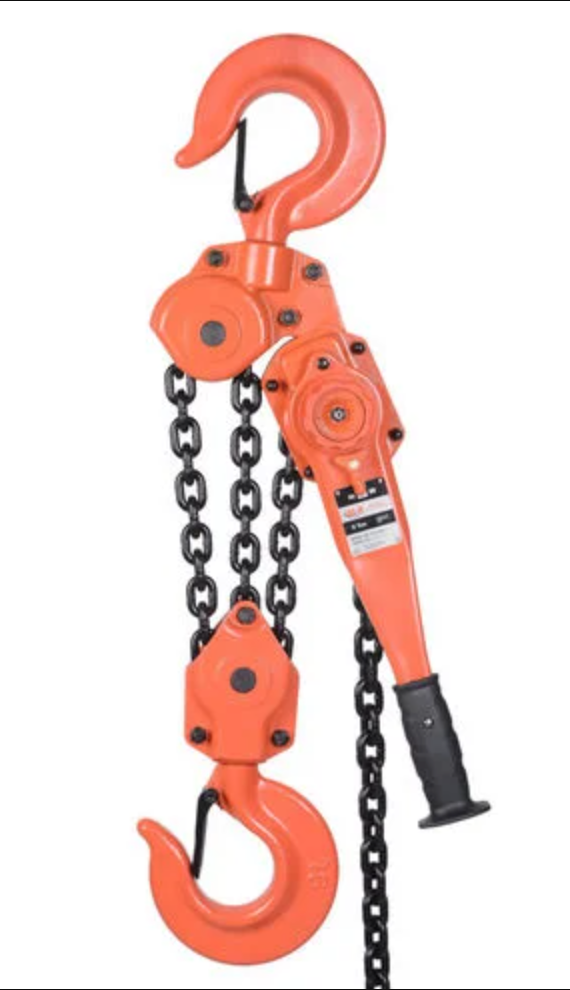

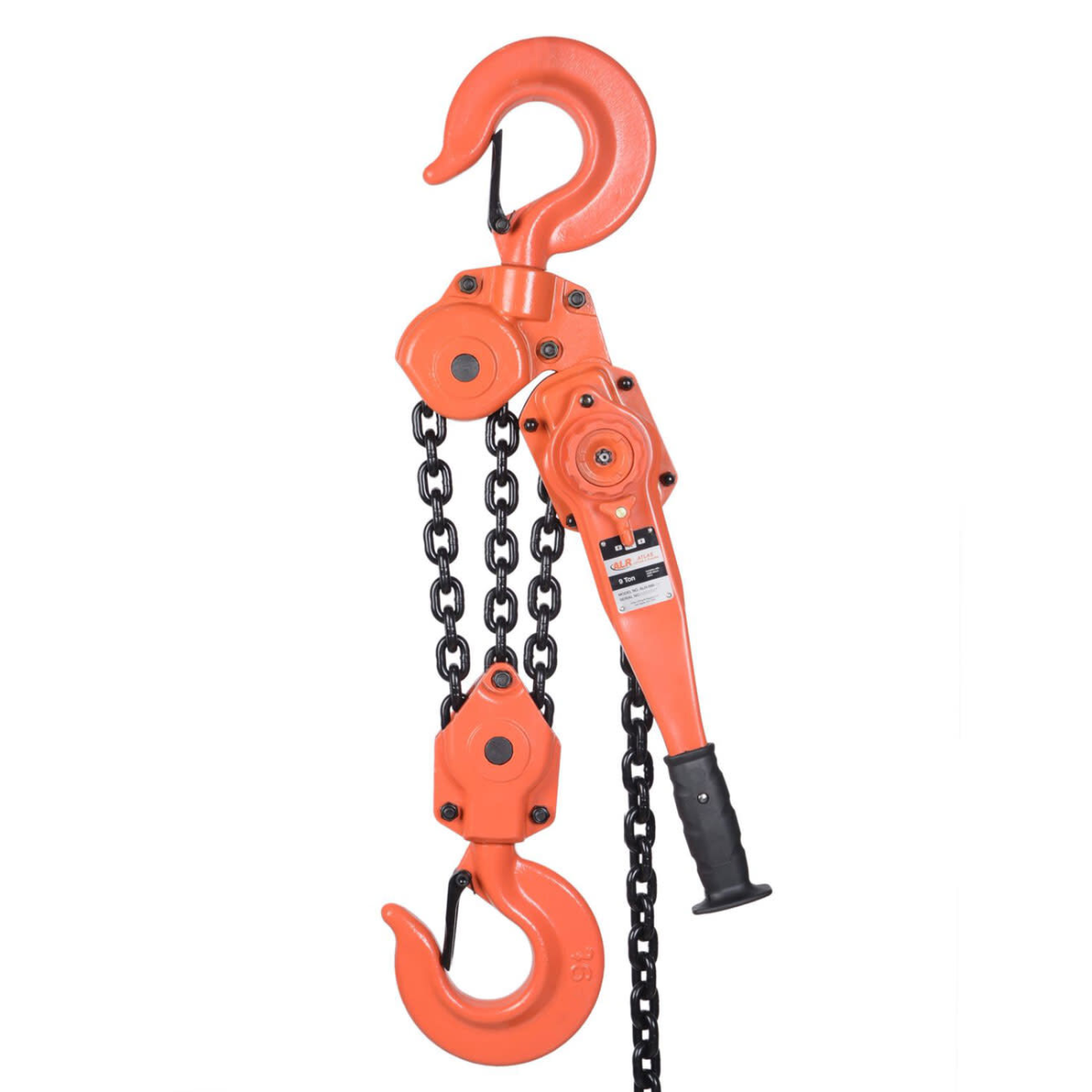

Atlas Lifting and Rigging ALH-090-30 Lever Hoist
The ALH-090-30 lever hoist is built to handle the toughest, tallest lifting tasks in industrial, construction, and heavy maintenance environments. With a 9-ton working load limit and a generous 30-foot lift height, this hoist is ideal for applications requiring high capacity and extended vertical reach—such as equipment relocation, tower erection, or marine operations.
Built for industry with a heavy-duty steel frame and equipped with a heat-treated alloy steel chain, this hoist delivers long-term durability and reliability in the field. The free-chaining mechanism and three-position selector provide smooth, intuitive operation, while the forged swivel hooks ensure secure, adaptable load engagement.
Key Features:
- 9-Ton Capacity: Designed for large-scale industrial and structural lifting.
- 30-Foot Lift Height: Extended reach for tall rigging setups and deep lifting points.
- Free-Chaining Feature: Enables rapid slack chain adjustment before engagement.

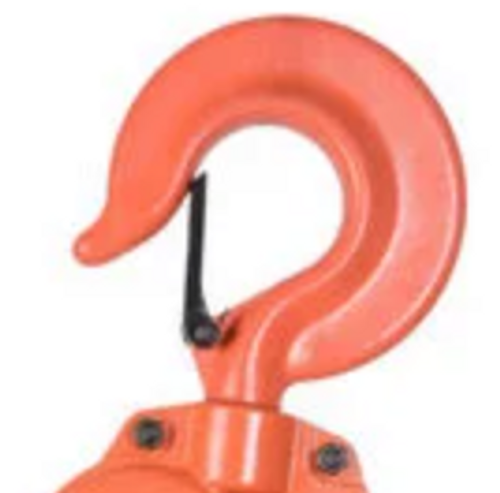

- Forged Swivel Hooks with Safety Latches: Rotating hooks for secure and flexible attachment.

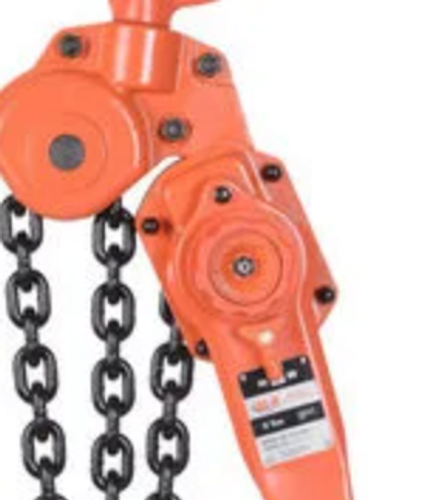

- Three-Position Selector: Simple operation for lifting, lowering, and neutral settings.
- Heat-Treated Alloy Steel Load Chain: Built for strength, fatigue resistance, and longevity.
- Ergonomic Lever Handle: Provides effective force transmission with user-friendly control.
Specifications:
- Model: ALH-090-30
- Capacity: 9 Tons (18,000 lbs / 8,165 kg)
- Lift Height: 30 ft (9.1 m)
- Overload Protection: Not included
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 20 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 266 lbs (120.7 kg)
The Atlas ALH-090-30 is a reliable workhorse for high-capacity lifts that require long vertical travel, delivering performance, safety, and control in every application.
