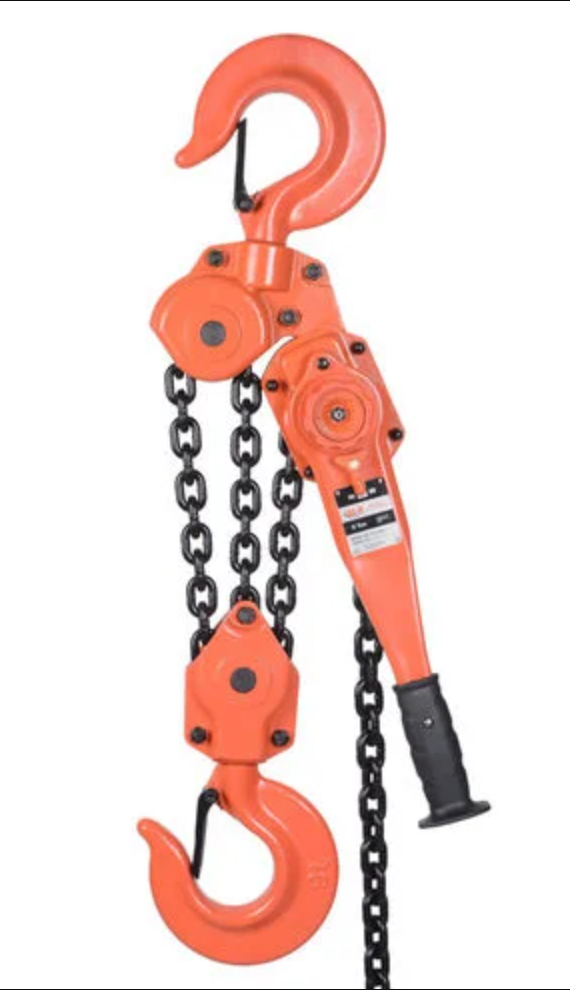

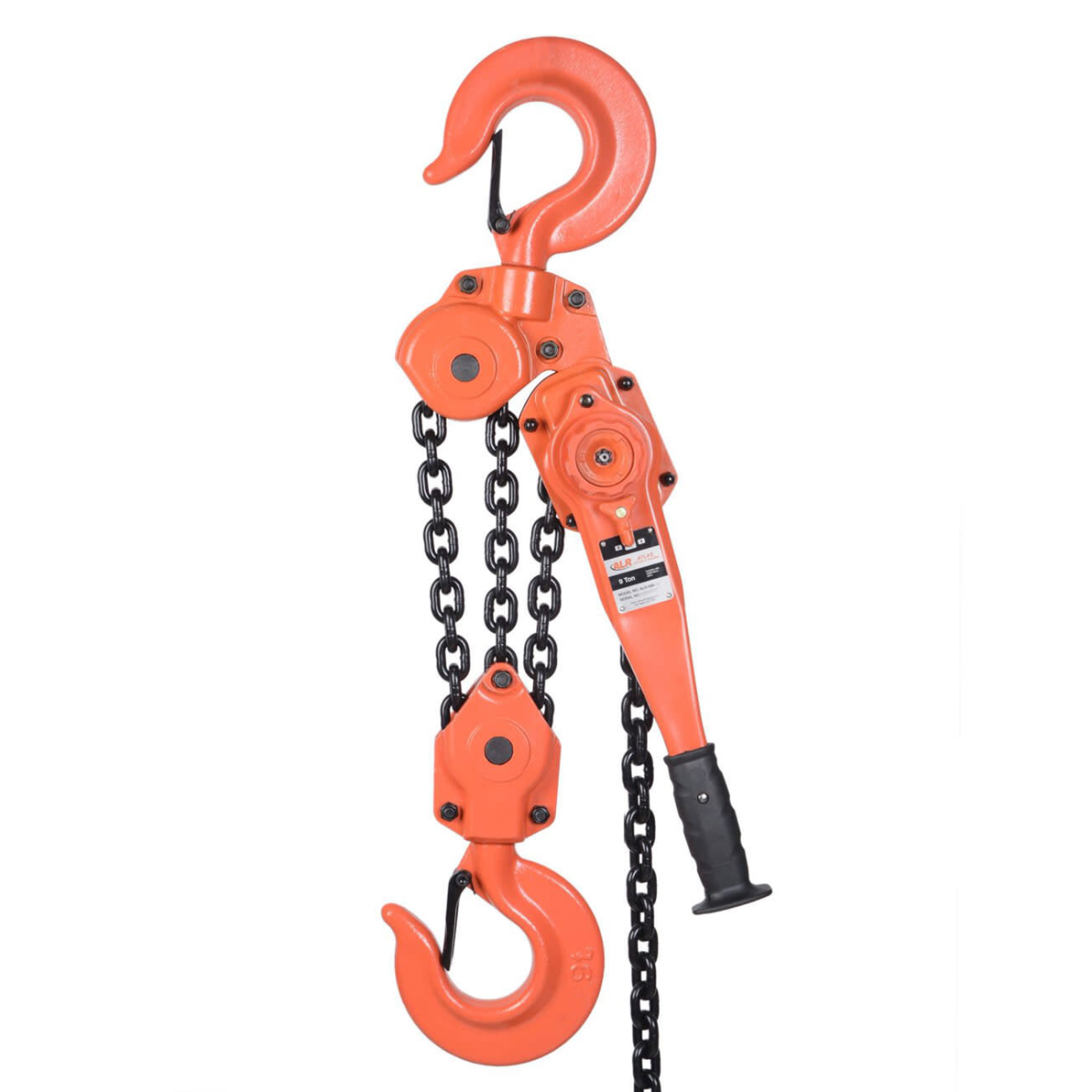

Atlas Lifting and Rigging ALH 9 Ton Lever Chain Hoist 30 Ft. Chain with Overload Protection

Atlas Lifting and Rigging ALH-090-30-OP Lever Hoist with Overload Protection

The ALH-090-30-OP lever hoist delivers the high lifting capacity and extended reach required for large-scale, safety-critical operations—now with the added security of mechanical overload protection. Designed to lift up to 9 tons over a 30-foot lift height, it’s built for performance in infrastructure projects, marine rigging, industrial maintenance, and heavy-duty fabrication environments.

The integrated overload protection system helps prevent damage from excessive loads by disengaging the lifting mechanism when the working load limit is exceeded—ensuring both operator safety and equipment longevity. Paired with forged swivel hooks, a hardened steel chain, and a rugged steel body, the ALH-090-30-OP is engineered for strength and reliability.

Key Features:

• 9-Ton Capacity: Handles substantial loads with controlled, stable lifting.
• 30-Foot Lift Height: Long chain reach for high-clearance and deep-access applications.
• Mechanical Overload Protection: Prevents overloading by automatically limiting lift under excess force.
• Free-Chaining Function: Allows for quick slack chain adjustments without gear engagement.

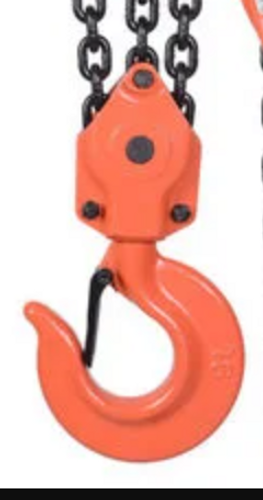

• Forged Swivel Hooks with Safety Latches: 360° rotation for safe, versatile rigging.
• Three-Position Selector Switch: Enables lifting, lowering, and neutral operations with ease.
• Heat-Treated Alloy Steel Chain: Engineered for high strength and extended wear resistance.
• Heavy-Duty Lever Handle: Offers optimal mechanical advantage with ergonomic control.

Specifications:

• Model: ALH-090-30-OP
• Capacity: 9 Tons (18,000 lbs / 8,165 kg)
• Lift Height: 30 ft (9.1 m)
• Overload Protection: Mechanical (integrated slip clutch)
• Hook Type: Forged alloy swivel hooks with safety latches
• Load Chain: Heat-treated alloy steel
• Lever Handle Length: Approx. 20 inches
• Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Net Weight: Approx. 270 lbs (122.5 kg)

The Atlas ALH-090-30-OP is ideal for professionals who require maximum reach, high load capacity, and built-in safety, providing powerful lifting capability with protection and peace of mind.
