Product Overview

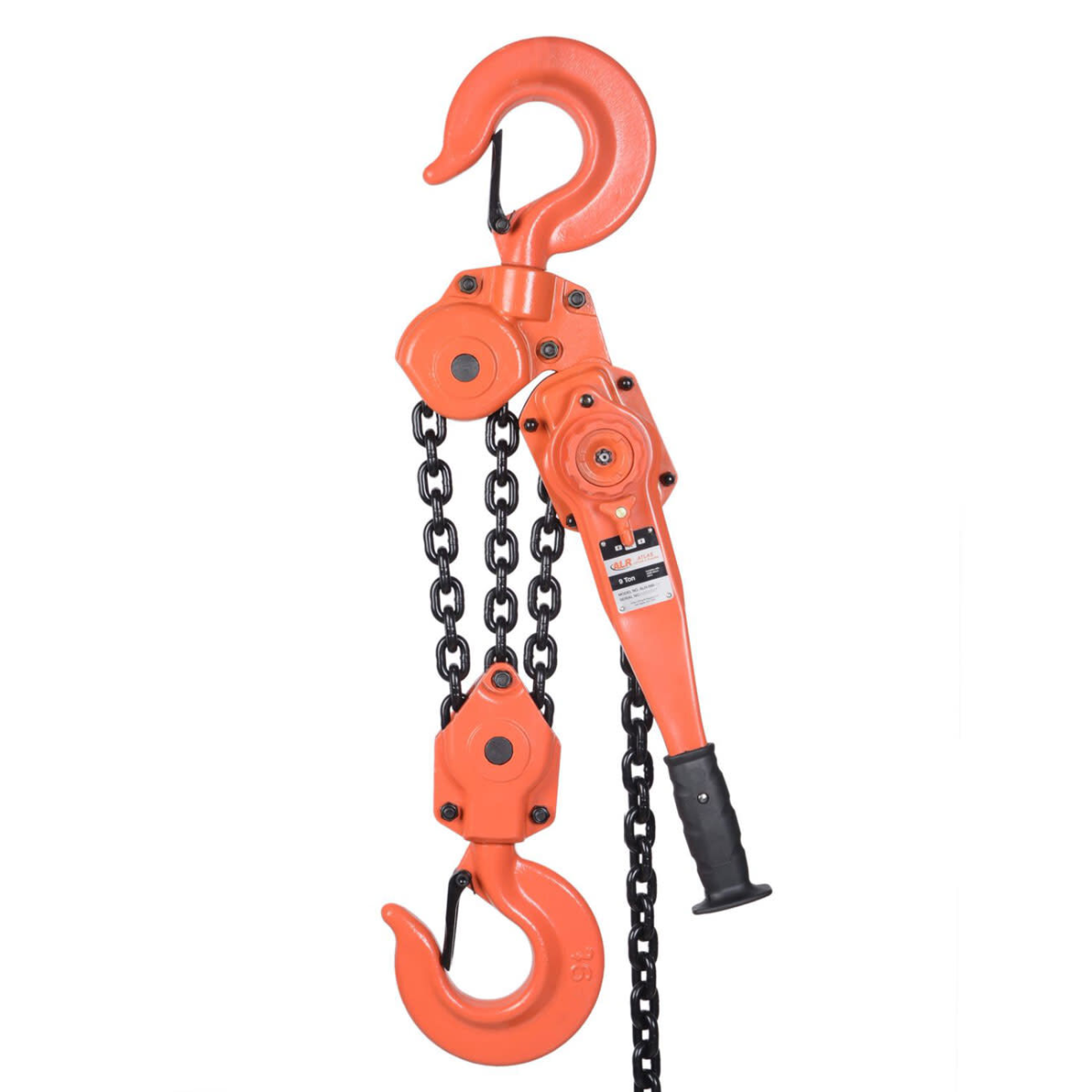

Atlas Lifting and Rigging ALH-090-10 Lever Hoist
The ALH-090-10 lever hoist delivers maximum strength and extended reach for serious lifting challenges. With a robust 9-ton load capacity and a 10-foot lift height, this heavy-duty hoist is built for the most demanding applications in construction, heavy equipment handling, shipbuilding, mining, and other industrial settings.
Its durable steel construction, forged swivel hooks, and precision-machined gearing ensures long-term performance under continuous use. The hoist includes a free-chaining mechanism for fast rigging and repositioning and a three-position selector for controlled lifting, lowering, and neutral operation.
Key Features:
- 9-Ton Working Load Limit: Designed to lift and hold heavy loads safely and efficiently.
- 10-Foot Lift Height: Extended reach for vertical rigging or multi-level operations.
- Free-Chaining System: Allows quick slack chain adjustment for rapid setup.

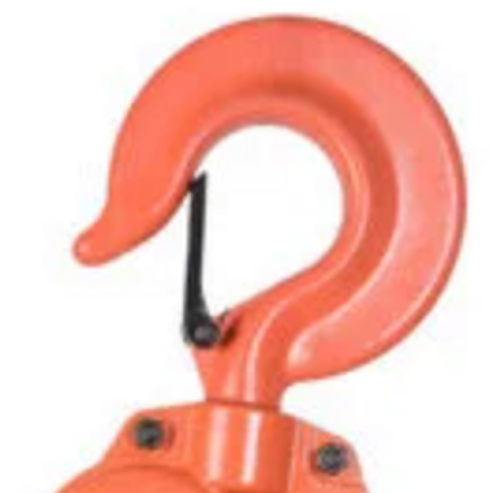

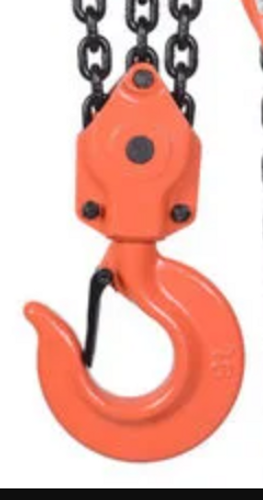

- Forged Swivel Hooks with Safety Latches: Reliable and flexible load connection.
- Three-Position Selector Switch: Easy transition between lifting, lowering, and neutral.
- Heat-Treated Alloy Load Chain: Engineered for durability and resistance to fatigue.
- High-Leverage Lever Handle: Offers optimal force with ergonomic operation.
Specifications:
- Model: ALH-090-10
- Capacity: 9 Tons (18,000 lbs / 8,165 kg)
- Lift Height: 10 ft (3.0 m)
- Overload Protection: Not included
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 20 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 155 lbs (70.3 kg)
The Atlas ALH-090-10 is purpose-built for professionals who demand rugged reliability, long reach, and high lifting capacity—ready to perform when failure is not an option.
