Product Overview
Atlas Titon Electric Chain Hoist – TEH-1-020-30
2 Ton Capacity | 30-Foot Lift | Single Speed
The Atlas TEH-1-020-30 Titon Electric Chain Hoist delivers high-capacity lifting with extended vertical reach, designed for demanding industrial applications. With a 2-ton (4,400 lbs) rated capacity and a 30-foot lift height, this hoist is ideal for use in tall facilities, mezzanine-level operations, and deep-access material handling. Built with durable components and engineered for safety and longevity, it provides consistent performance under heavy use.
Features
- 2 Ton Rated Capacity: Capable of lifting up to 4,400 lbs, ideal for medium to heavy-duty industrial loads.
- 30-Foot Lift Height: Extended range allows for high-clearance or deep-lift operations without compromising control.
- Grade 80 Load Chain: Premium alloy steel with black oxide finish offers superior strength and corrosion resistance.
- Heavy-Duty Motor: Equipped with thermal overload protection for safe, reliable operation during extended use.
- Electromagnetic Load Brake: Automatically engages to hold loads securely during lifting and power interruptions.
- Durable IP54-Rated Housing: The sealed aluminum enclosure protects internal components from dust, debris, and moisture.

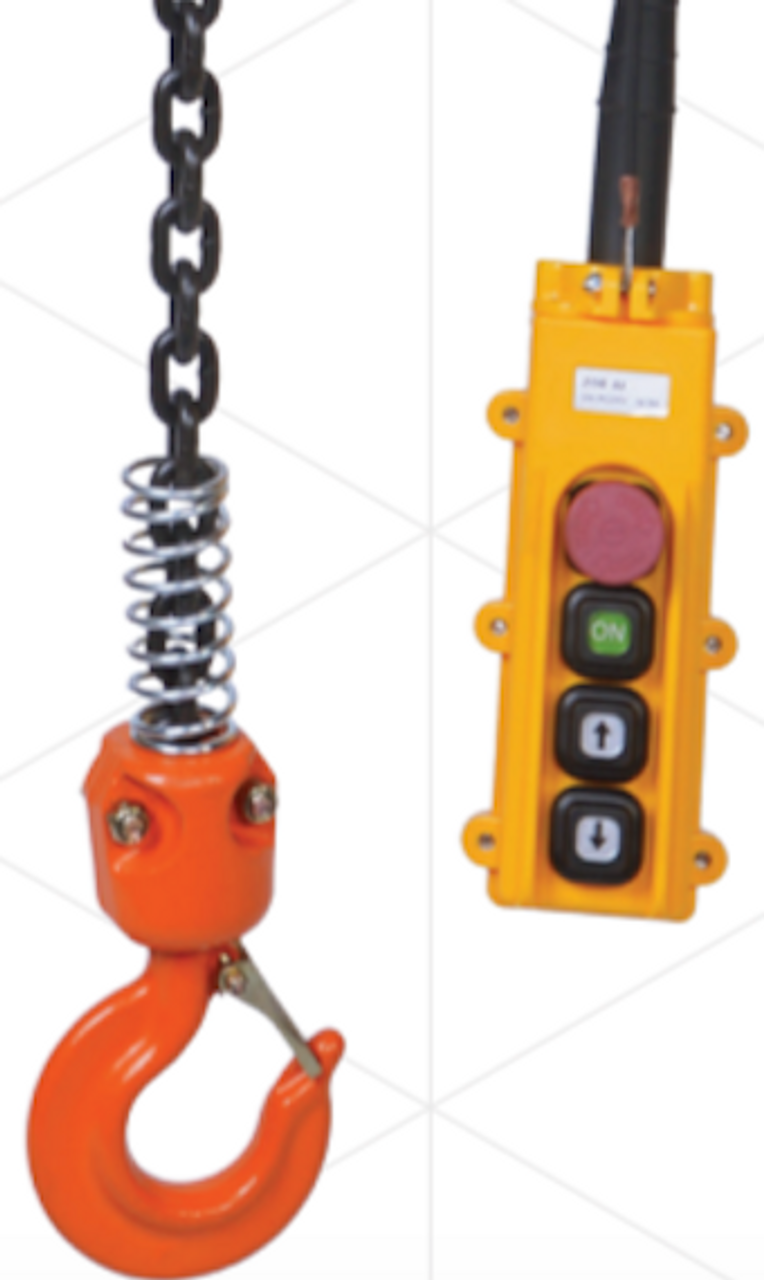

- Low-Voltage Pendant Control: The 24V push-button pendant provides safe and precise operator control from the ground.
- Forged Hook Suspension: A strong top hook allows easy mounting to fixed supports or beam trolley systems.
Specifications
- Model: TEH-1-020-30
- Brand: Atlas Lifting & Rigging
- Rated Load Capacity: 2 Ton (4,400 lbs)
- Lift Height: 30 feet
- Lifting Speed: Single speed (approx. 8 FPM; confirm per motor specification)
- Load Chain: Grade 80 alloy steel, black oxide coated
- Motor: Industrial-duty electric motor with thermal overload protection
- Brake Type: Electromagnetic load brake
- Pendant Control: 24V low-voltage, push-button pendant
- Suspension Type: Hook mount
- Enclosure Rating: IP54 (dust and splash resistant)
- Duty Cycle: 30% ED (intermittent duty)
- Approximate Weight: 165–180 lbs (depending on configuration)
- Power Requirements: Available in standard industrial voltages (specify when ordering)
- Warranty: 3-Year Limited
- Country of Origin: China
The TEH-1-020-30 is a dependable choice for facilities needing extended reach and heavy lifting capability in a compact, durable electric chain hoist. Its blend of power, safety, and operational ease makes it a practical solution for high-clearance lifting environments.
