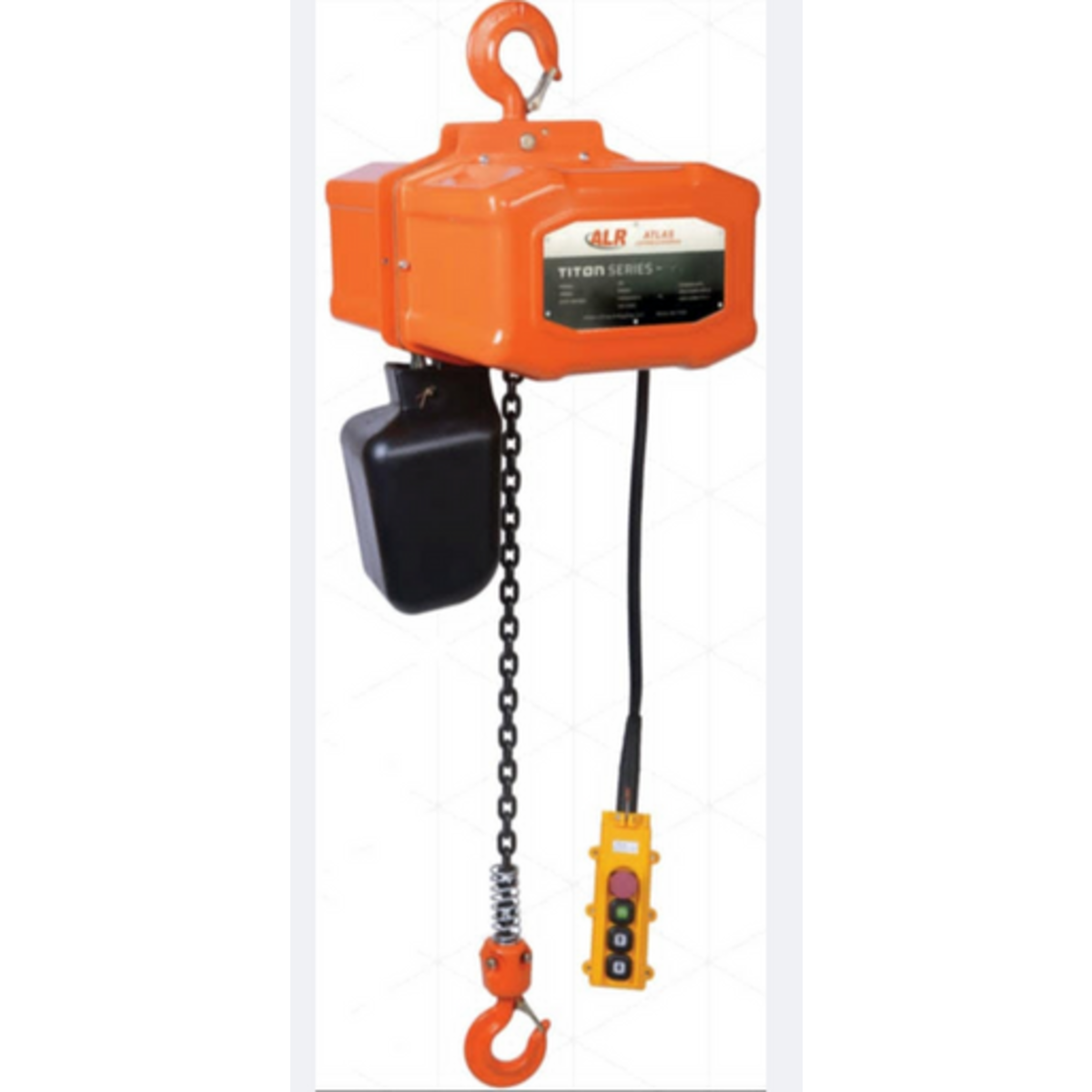

ALR Titon Electric Chain Hoist – 3 Ton Capacity | 30-Foot Lift | Single Speed

Product Overview

Atlas Titon Electric Chain Hoist – TEH-1-030-30

3 Ton Capacity | 30-Foot Lift | Single Speed

The Atlas TEH-1-030-30 Titon Electric Chain Hoist is a robust lifting solution engineered for demanding industrial applications that require a long vertical reach. With a 3-ton (6,600 lbs) rated capacity and a 30-foot lift height, this hoist is ideal for tall structures, deep lift pits, and elevated workstations. Its heavy-duty build, premium-grade chain, and safety-focused design deliver dependable operation for a range of material handling needs in manufacturing, maintenance, and construction.

Features

• 3-Ton Load Capacity: Provides reliable lifting for up to 6,600 lbs, suited for heavy-duty applications.
• 30-Foot Extended Lift: This model features a long vertical reach, supporting high-ceilinged or deep-reach installations.
• Grade 80 Alloy Load Chain: Black oxide-coated chain for strength, longevity, and corrosion resistance.
• Industrial Electric Motor: Built with thermal overload protection for reliable performance under load.
• Electromagnetic Load Brake: Ensures controlled load holding, even during power failure.
• Rugged IP54 Housing: Aluminum construction shields internal components from dust, dirt, and moisture.
• Ergonomic Pendant Control: 24V low-voltage control pendant enhances operator safety and responsiveness.
• Hook Suspension: A heavy-duty, forged top hook allows for easy mounting to beam clamps or trolleys.

Specifications

• Model: TEH-1-030-30
• Rated Capacity: 3 Ton (6,600 lbs)
• Lift Height: 30 feet
• Lifting Speed: Approx. 6 feet per minute (single speed; verify motor specs)
• Load Chain: Grade 80 alloy steel, black oxide coated
• Brake Type: Electromagnetic
• Motor Protection: Thermal overload protection
• Pendant Control: 24V low-voltage push-button pendant
• Suspension Type: Hook mount
• Enclosure Rating: IP54 (dust and splash resistant)
• Duty Cycle: 30% ED (intermittent duty)
• Approximate Weight: 260–280 lbs (depending on configuration)
• Power Requirements: Available in standard industrial voltages (specify when ordering)
• Warranty: 3-Year Limited
• Country of Origin: China

The TEH-1-030-30 is built for industrial users who require maximum vertical reach, high load capacity, and consistent performance. It offers a durable, operator-safe solution for rigorous lifting operations in overhead applications.
