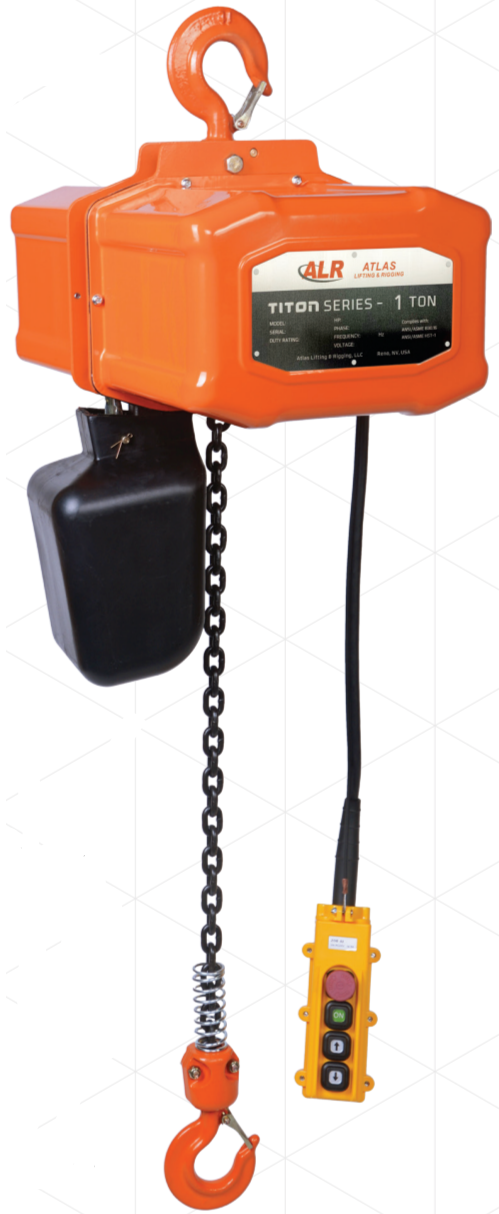

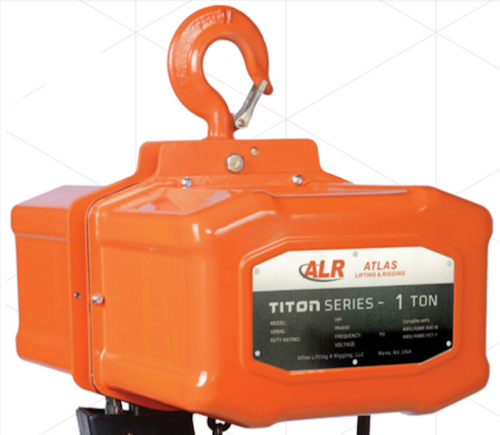

Atlas Titon Electric Chain Hoist – TEH-1-010-30
1 Ton Capacity | 30-Foot Lift | Single Speed
The Atlas Titon TEH-1-010-30 Electric Chain Hoist is designed for extended-reach lifting tasks in industrial environments that require both reliability and precision. With a 1-ton (2,200 lbs) load capacity and an extended 30-foot lift height, this hoist delivers smooth and consistent performance for a wide range of applications—from warehouse logistics to manufacturing and maintenance operations. Its robust construction, long-lasting components, and integrated safety features make it a dependable solution for high-demand lifting operations.
Features
- 1 Ton Capacity: Rated to lift up to 2,200 lbs with consistent speed and stable load handling.
- 30-Foot Vertical Lift: Provides substantial lift height for tall workspaces, high-bay facilities, or recessed lifting points.
- High-Strength Chain: Equipped with Grade 80 alloy steel load chain, treated with black oxide for increased durability and corrosion resistance.
- Industrial-Grade Motor: Powerful electric motor with thermal overload protection designed for intermittent use in demanding environments.
- Electromagnetic Load Brake: Automatically engages during lifting and lowering operations for precise load control and secure load holding in power loss situations.
- Protective Housing: A rugged, sealed aluminum body offers IP54-rated protection against dust and moisture, extending the service life.
- Low-Voltage Pendant: 24V push-button pendant control provides operator safety and intuitive operation at ground level.
- Hook Suspension Mount: Forged upper hook offers secure attachment to fixed supports or trolley systems.
Specifications
- Model: TEH-1-010-30
- Brand: Atlas Lifting & Rigging
- Rated Load: 1 Ton (2,200 lbs)
- Lift Height: 30 feet
- Lifting Speed: Single speed (approx. 16 FPM; verify motor specs)
- Load Chain: Grade 80 alloy steel, black oxide coated
- Motor Type: Heavy-duty electric with thermal protection
- Brake Type: Electromagnetic load brake
- Control Voltage: 24V pendant control
- Suspension: Top hook mount
- Enclosure Rating: IP54 (dust and splash resistant)
- Duty Cycle: 30% ED (intermittent duty rating)
- Approximate Weight: 120–135 lbs (varies with configuration)
- Power Supply: Available in standard voltage options (specify at order)
- Warranty: 3-Year Limited
- Country of Origin: China
The TEH-1-010-30 is built for professionals who require extended vertical reach and dependable lifting performance. Its combination of strength, precision, and operational safety make it an ideal choice for elevated installations or deep-access lifting tasks in industrial and commercial settings.
