Atlas Titon Electric Chain Hoist - 1 Ton, 20Ft Lift, Single Phase

Product Overview

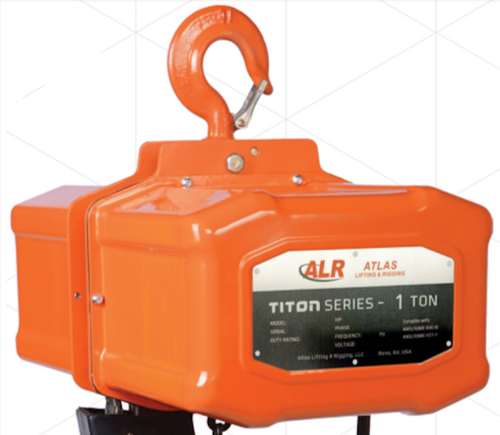

Atlas Titon Electric Chain Hoist – TEH-1-010-20

1 Ton Capacity | 20-Foot Lift | Single Speed

The Atlas TEH-1-010-20 Titon Electric Chain Hoist is built for reliability, control, and extended reach in industrial lifting applications. With a rated capacity of 1 ton (2,200 lbs) and a 20-foot lift height, this model is ideal for overhead installations that require additional vertical travel. Built for industry with safety and durability in mind, it features a heavy-duty motor, precision braking, and a rugged housing—making it a dependable solution for shops, fabrication facilities, and production lines.

Features

• 1 Ton Lifting Capacity: Designed to handle loads up to 2,200 lbs with consistent, steady lifting performance.
• Extended 20-Foot Lift: Offers increased lifting range for elevated hoisting operations or deeper lift zones.
• Durable Load Chain: Grade 80 black oxide alloy steel chain provides strength, corrosion resistance, and long wear life.
• Thermally Protected Motor: A heavy-duty electric motor with thermal overload protection gives you safe and reliable operation over prolonged use.
• Electromagnetic Brake System: Securely holds the load in place, even in the event of a power interruption.
• Sealed Aluminum Housing: Compact and corrosion-resistant enclosure protects internal components from dust and moisture.

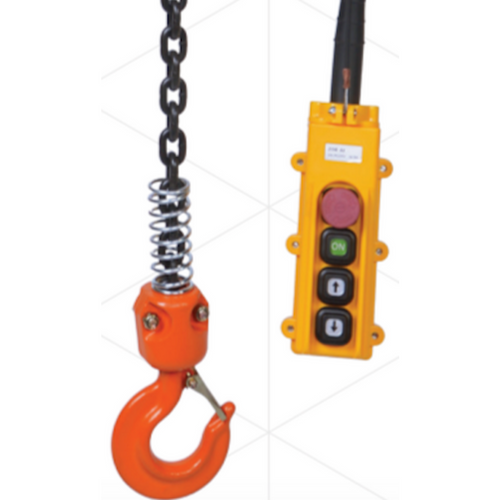

• Low-Voltage Pendant Control: The ergonomic 24V push-button pendant ensures user safety and provides straightforward control.
• Hook Suspension Mount: A forged top hook allows easy installation on beam clamps or trolleys.

Specifications

• Model: TEH-1-010-20
• Brand: Atlas Lifting & Rigging
• Rated Capacity: 1 Ton (2,200 lbs)
• Lift Height: 20 ft
• Lifting Speed: Single speed (approx. 16 FPM; confirm per motor specification)
• Load Chain: Grade 80 alloy steel, black oxide finish
• Brake Type: Electromagnetic load brake
• Motor: Electric, with thermal overload protection
• Control Voltage: 24V push-button pendant
• Mounting Type: Hook suspension
• Enclosure Rating: IP54 (dust and splash resistant)
• Duty Cycle: 30% ED (intermittent use)
• Weight: Approximately 110–120 lbs (depending on configuration)
• Power Supply: Available in standard voltage options (confirm when ordering)
• Warranty: 3-Year Limited
• Country of Origin: China

The TEH-1-010-20 offers needed lifting capacity with extended height capability, making it a reliable tool for industrial environments that require safe and efficient material handling across a wider vertical range.
