Product Overview
Atlas Titan Electric Chain Hoist – TEH-1-010-10
1 Ton Capacity | 10-Foot Lift | Single Speed
The Atlas TEH-1-010-10 Titan Electric Chain Hoist delivers consistent and efficient lifting performance in demanding industrial environments. With a rated capacity of 1 ton (2,200 lbs) and a standard 10-foot lift height, this hoist is engineered for precision, reliability, and operator safety. Its rugged design and dependable electric motor make it ideal for lifting applications in manufacturing facilities, maintenance shops, assembly lines, and warehouse operations.
Features
- 1 Ton Rated Capacity: Designed to handle up to 2,200 lbs with consistent lifting speed and controlled movement.
- 10-Foot Lift Height: Suitable for most standard overhead lifting and material handling tasks.
- High-Strength Load Chain: Utilizes Grade 80 black oxide alloy steel chain for superior wear resistance and strength under load.
- Durable Electric Motor: Heavy-duty motor with thermal overload protection ensures reliable performance during frequent or extended use.
- Electromagnetic Brake System: Provides automatic load holding and quick, secure stopping in the event of power loss.
- Sealed Aluminum Housing: Compact and dust-resistant enclosure protects internal components in industrial workspaces.

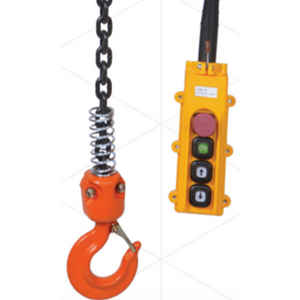

- Low-Voltage Pendant Control: Comes with a 24V push-button pendant for user safety and simple control of lifting operations.
- Forged Steel Suspension Hook: Allows secure mounting to beam clamps or trolleys for fixed or traveling installations.
Specifications
- Model: TEH-1-010-10
- Brand: Atlas Lifting & Rigging
- Rated Capacity: 1 Ton (2,200 lbs)
- Lift Height: 10 ft
- Lifting Speed: Single speed (typically ~16 FPM; confirm with motor rating)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Brake Type: Electromagnetic load brake
- Motor: Electric, thermally protected
- Control Voltage: 24V pendant control
- Mounting Type: Top hook suspension
- Enclosure Rating: IP54 (dust and splash resistant)
- Duty Cycle: 30% ED (intermittent duty)
- Weight: Approximately 90–100 lbs (varies with configuration)
- Power Supply: Available in standard voltage options (specify at order)
- Warranty: 3-Year Limited
- Country of Origin: China
The TEH-1-010-10 is a robust and practical solution for lifting heavier loads with accuracy and efficiency. Its electric operation and safety-integrated features make it well-suited for industrial professionals seeking productivity without compromising reliability.
