Product Overview

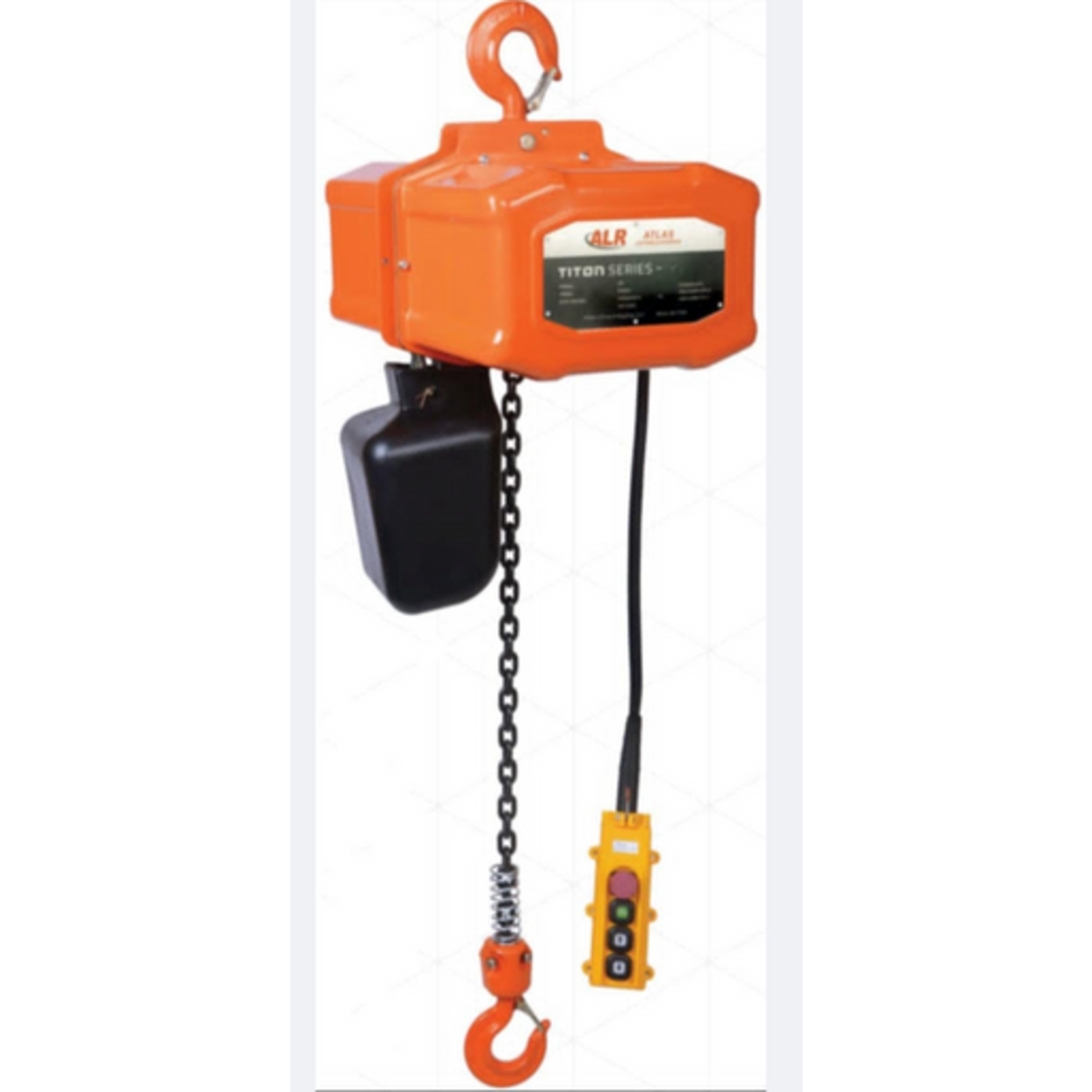

Atlas Titon Electric Chain Hoist – TEH-1-020-10
2 Ton Capacity | 10-Foot Lift | Single Speed
The Atlas TEH-1-020-10 Titon Electric Chain Hoist is a high-performance lifting solution engineered for demanding industrial applications. Rated at 2 tons (4,400 lbs), this hoist combines lifting strength with operational reliability and safety. The 10-foot lift height is great for a wide variety of installations, including factories, warehouses, equipment repair shops, and fabrication floors. Designed with robust components and a durable finish, the TEH-1-020-10 ensures dependable operation with minimal maintenance.
Features
- 2-Ton Lifting Capacity: Handles heavy-duty loads up to 4,400 lbs with smooth, steady control for safe material handling.
- 10-Foot Standard Lift: Suitable for general-purpose lifting in most overhead environments.
- High-Tensile Load Chain: Features Grade 80 black oxide alloy steel chain for extended wear resistance and long service life.
- Heavy-Duty Electric Motor: Engineered for industrial performance with built-in thermal overload protection to prevent overheating.
- Electromagnetic Load Brake: Securely holds the load in position during operation and power loss for enhanced safety.
- Compact Sealed Housing: A rugged aluminum body with IP54-rated protection shields internal components from dust and moisture.

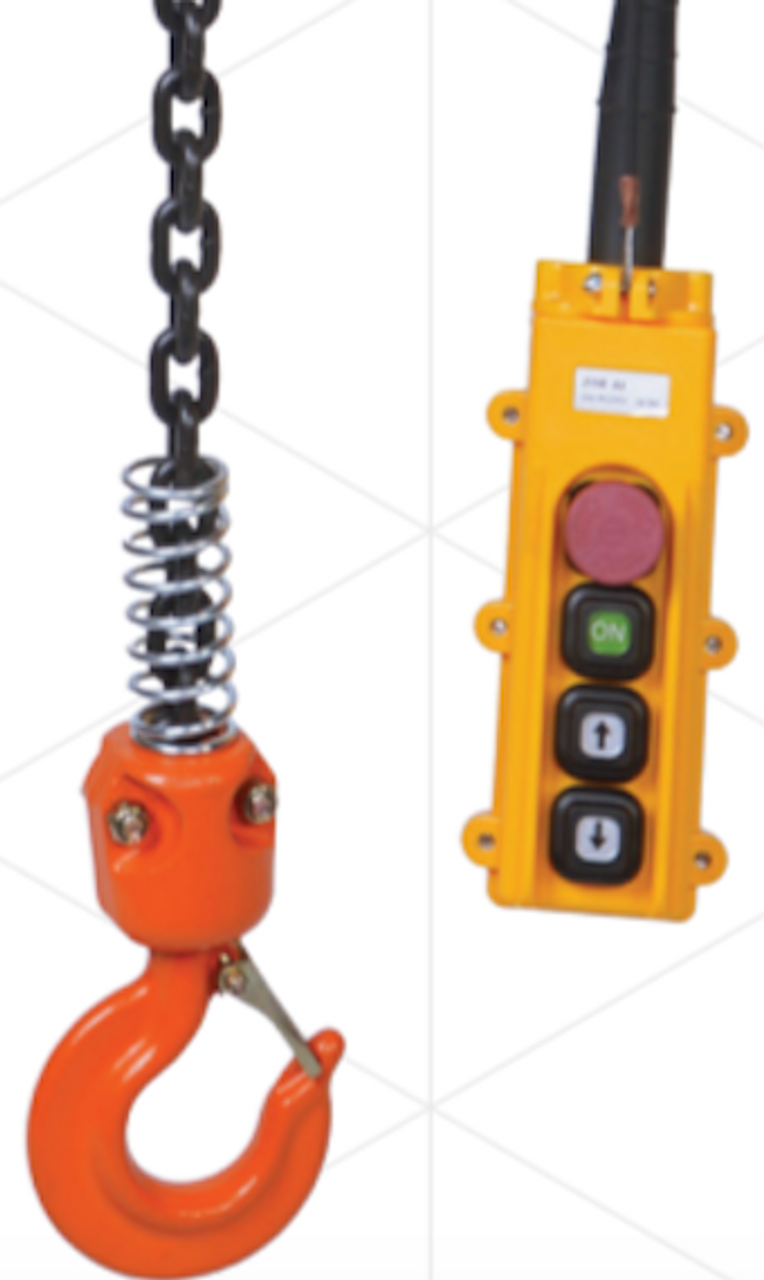

- Ergonomic Pendant Control: Comes equipped with a 24V low-voltage push-button pendant for safe and easy operation.
- Top Hook Suspension: Forged upper hook provides a strong, stable mounting point for fixed or trolley-based installations.
Specifications
- Model: TEH-1-020-10
- Brand: Atlas Lifting & Rigging
- Rated Capacity: 2 Ton (4,400 lbs)
- Lift Height: 10 ft
- Lifting Speed: Single speed (approx. 8 FPM; confirm based on final motor specs)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Brake Type: Electromagnetic load brake
- Motor: Industrial-duty with thermal protection
- Control Voltage: 24V pendant
- Mounting: Hook suspension
- Enclosure Rating: IP54 (dust and splash resistant)
- Duty Cycle: 30% ED (intermittent use)
- Weight: Approx. 135–145 lbs (varies by configuration)
- Power Supply: Standard industrial voltages available (confirm when ordering)
- Warranty: 3-Year Limited
- Country of Origin: China
The TEH-1-020-10 electric chain hoist offers powerful lifting capability with safety-driven engineering. Its rugged build and precise control make it well-suited for environments where consistent performance and heavy load handling are a daily requirement.
