ALR Titon Electric Chain Hoist ‚ 2 Ton Capacity | 20-Foot Lift | Single Speed

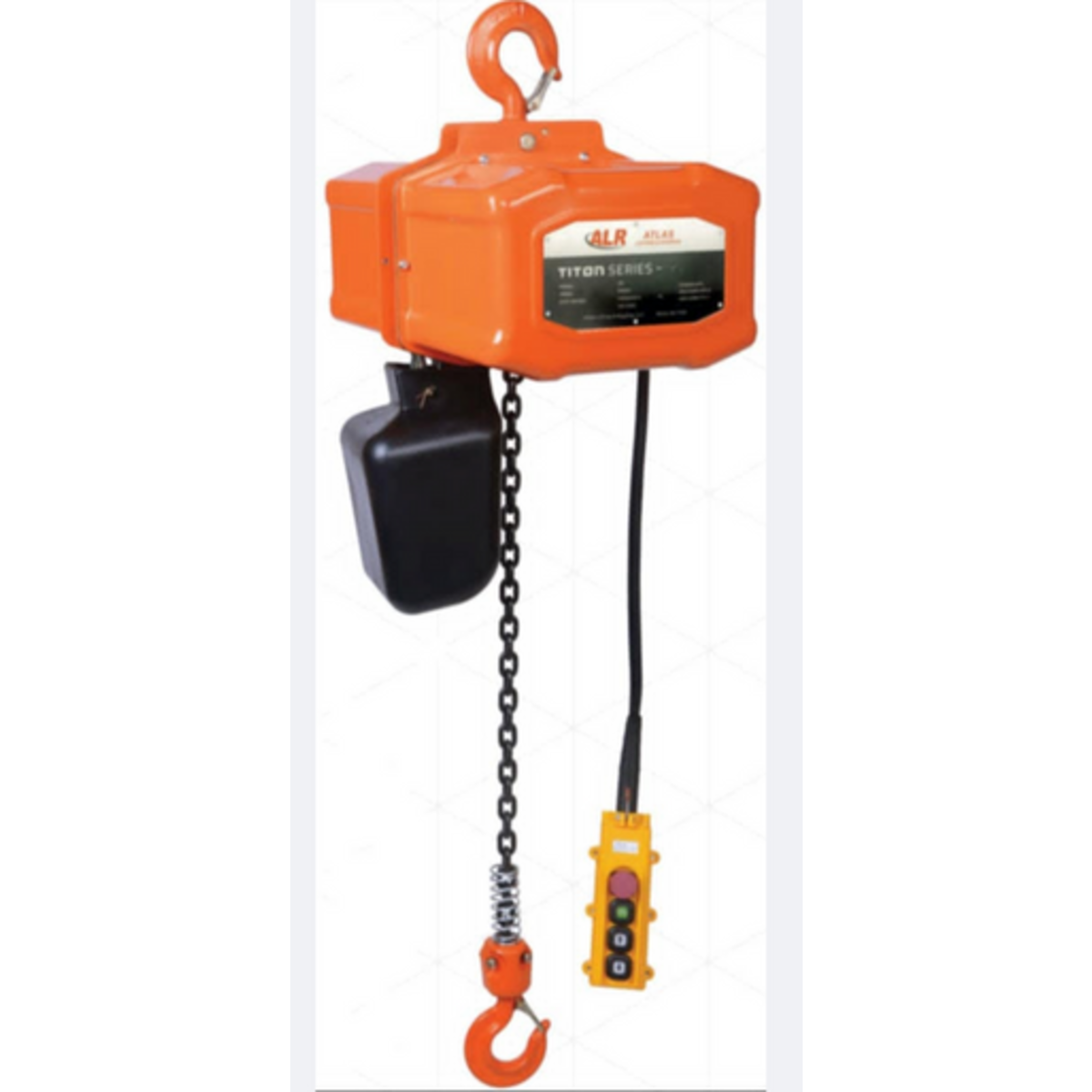

Atlas Titon Electric Chain Hoist – TEH-1-020-20

2 Ton Capacity | 20-Foot Lift | Single Speed

The Atlas TEH-1-020-20 Titon Electric Chain Hoist is designed for lifting reliability and operational efficiency in industrial settings that require extended vertical reach. Having a rated load capacity of 2 tons (4,400 lbs) and a 20-foot lift height. This hoist offers reliable performance for handling heavy materials in applications such as fabrication, maintenance, production, and logistics.

Features

• 2 Ton Lifting Capacity: Designed to lift up to 4,400 lbs, offering strength and safety in material handling operations.
• 20-Foot Extended Lift: Ideal for facilities with higher ceiling clearances or recessed load positions.
• Grade 80 Alloy Load Chain: A heavy-duty, black oxide-coated steel chain that provides excellent tensile strength and corrosion resistance.
• High-Performance Electric Motor: Thermally protected motor supports consistent performance under load and reduces the risk of overheating.
• Electromagnetic Load Brake: Provides secure load holding with automatic engagement, even in power failure situations.
• Rugged IP54 Housing: Sealed aluminum body protects internal components from dust, moisture, and debris, enhancing longevity.

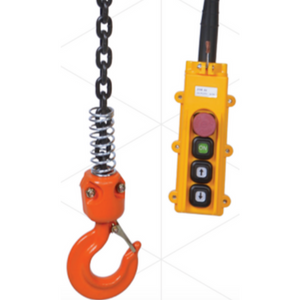

• Ergonomic 24V Pendant Control: The low-voltage control pendant enables precise and safe operation from ground level.
• Top Hook Suspension: Forged hook enables easy and secure mounting to fixed supports or trolley systems.

Specifications

• Model: TEH-1-020-20
• Brand: Atlas Lifting & Rigging
• Rated Capacity: 2 Ton (4,400 lbs)
• Lift Height: 20 ft
• Lifting Speed: Single speed (approx. 8 feet per minute; confirm with motor specification)
• Load Chain: Grade 80 alloy steel, black oxide finish
• Brake Type: Electromagnetic load brake
• Motor: Heavy-duty electric with thermal overload protection
• Control Voltage: 24V push-button pendant
• Mounting Type: Hook suspension
• Enclosure Rating: IP54 (dust and splash resistant)
• Duty Cycle: 30% ED (intermittent use)
• Approximate Weight: 155–165 lbs (depending on configuration)
• Power Supply: Available in standard voltage configurations (specify when ordering)
• Warranty: 3-Year Limited
• Country of Origin: China

The TEH-1-020-20 is built for demanding applications that require long lift ranges and consistent, heavy-duty performance. With durable components and safety-focused design, it’s a trusted choice for lifting professionals across a variety of industrial environments.
