Product Overview

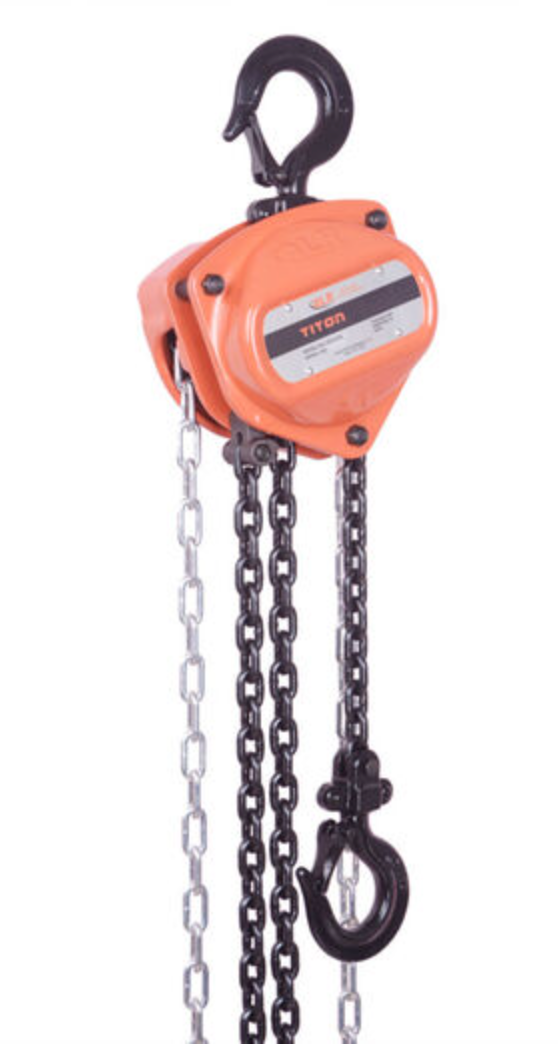

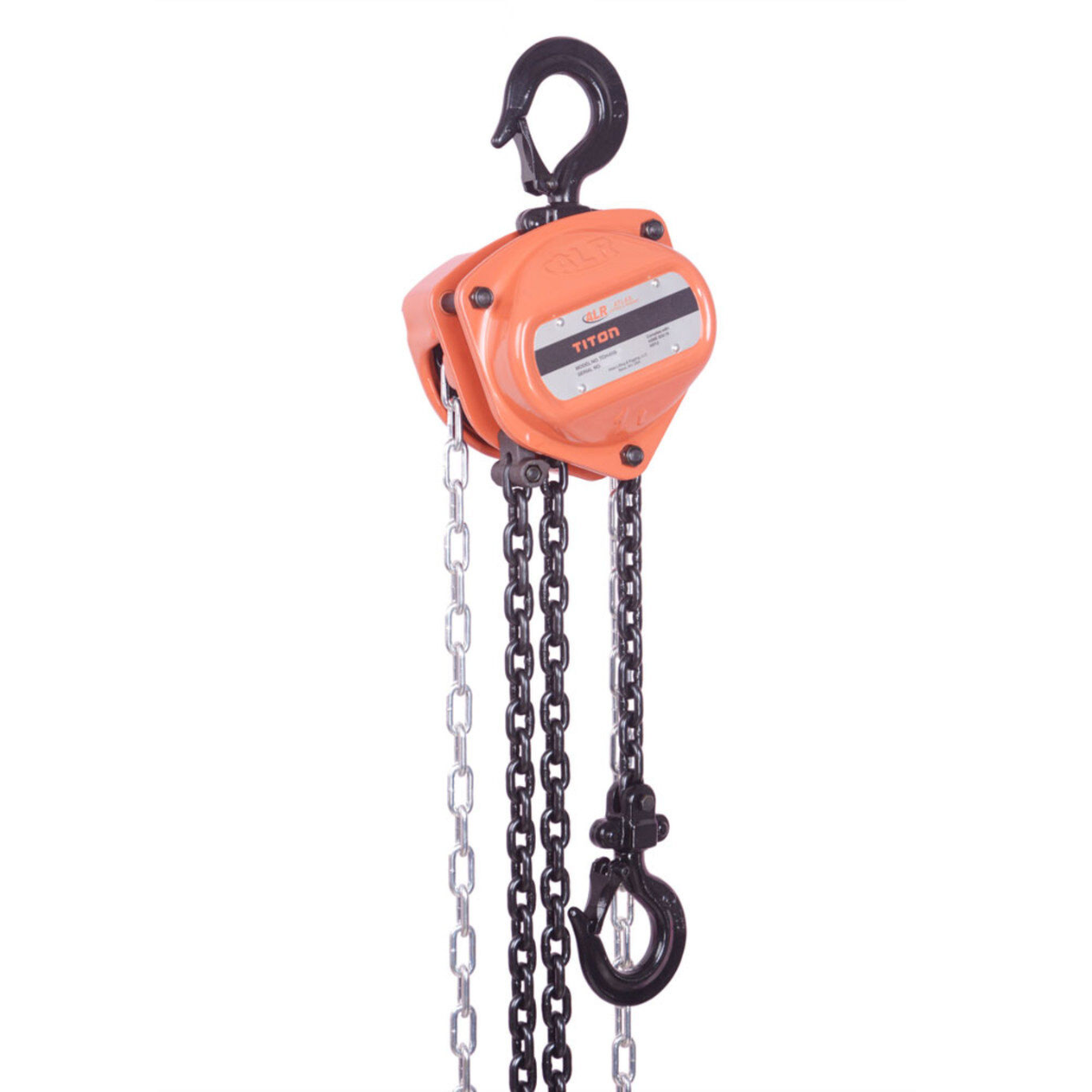

Atlas Lifting and Rigging Titon TCH-020-20 Manual Chain Hoist – 2 Ton Capacity, 20 ft Lift
The TCH-020-20 Manual Chain Hoist from Atlas Lifting and Rigging delivers reliable lifting power with an extended reach for demanding industrial and construction environments. This hoist has a 2-ton (4,000 lb) load capacity and an increased 20-foot lift height, this hoist is built for applications that require greater vertical clearance—ideal for tall structures, elevated platforms, and high-ceiling facilities.
Constructed with a heavy-duty steel housing and a Grade 80 alloy steel load chain, the TCH-020-20 ensures maximum strength, durability, and long-term performance. The hoist features a smooth hand chain system for efficient operation and forged swivel hooks with safety latches to ensure secure load engagement in dynamic rigging scenarios.
Key Features:
- 2 Ton (4,000 lb) Capacity: Designed for lifting and positioning heavier loads with confidence.
- 20 ft Lift Height: Extended range supports a wide variety of overhead lifting applications.
- Reinforced Steel Housing: Protects the hoist mechanism and ensures operational reliability.
- High-Strength Load Chain: Grade 80 alloy construction for safe, dependable lifting.
- Manual Operation: Efficient gearing and smooth chain pull reduce operator fatigue.

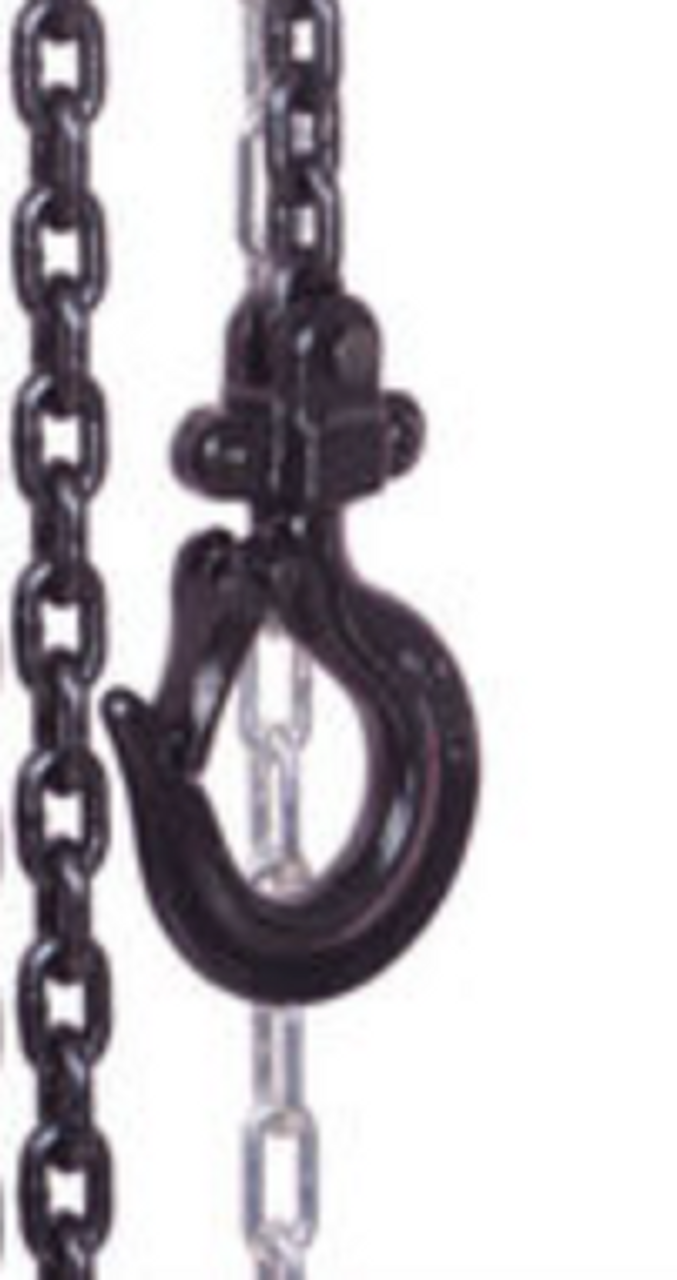

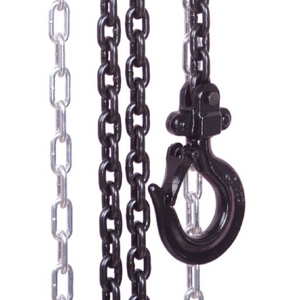

- Swivel Hooks with Latches: Provide flexible rigging and secure attachment.
- Portable Design: Despite the extended lift, it remains easy to handle and install.
Specifications:
- Model: TCH-020-20
- Capacity: 2 Ton (4,000 lbs / 1,814 kg)
- Lift Height: 20 feet (6.10 meters)
- Load Chain: Grade 80 alloy steel
- Chain Diameter: Approx. 8 mm
- Hand Chain Pull (Full Load): Approx. 77 lbs
- Hooks: Forged steel swivel hooks with safety latches
- Finish: Durable corrosion-resistant coating
- Net Weight: Approx. 40 lbs (18.1 kg)
The Atlas TCH-020-20 is the ideal solution for professionals who require reliable performance and increased lifting height without compromising durability or safety.
