Product Overview

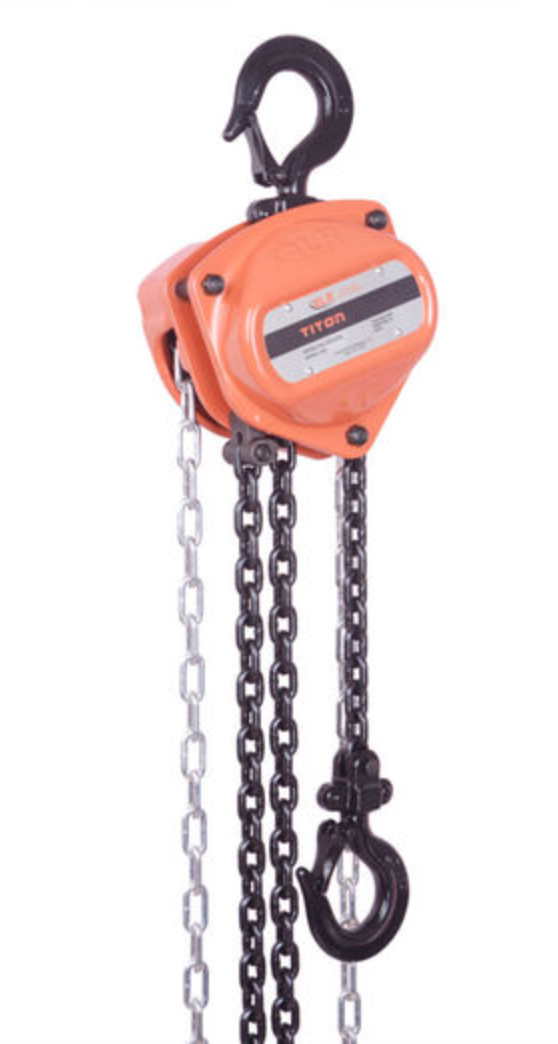

Atlas Lifting and Rigging TCH-020-10 Manual Chain Hoist – 2 Ton Capacity, 10 ft Lift
The TCH-020-10 Manual Chain Hoist from Atlas Lifting and Rigging is engineered for dependable lifting in tough industrial environments. With a robust 2-ton (4,000 lb) capacity and a 10-foot standard lift height, this hoist is perfect for heavy-duty lifting applications such as manufacturing, rigging, equipment installation, and jobsite material handling.
Built with a heavy-gauge steel housing and equipped using a Grade 80 alloy steel load chain, this hoist offers long-term durability and safety under load. The smooth-operating hand chain system reduces operator effort, while forged swivel hooks with safety latches provide secure load engagement and increased flexibility during use.
Key Features:
- 2 Ton (4,000 lb) Capacity: Designed for handling heavier industrial and construction loads.
- 10 ft Standard Lift: Versatile height suitable for most general-purpose lifting tasks.
- Durable Steel Construction: Protects the internal gearing and extends the hoist’s service life.

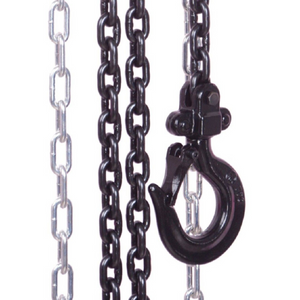

- High-Strength Load Chain: Grade 80 alloy steel for enhanced wear resistance and safety.
- Low-Effort Manual Operation: Smooth hand chain mechanism for precise load control.
- Swivel Hooks with Safety Latches: Secure attachment and ease of alignment.
- Portable and Compact: Simple to install and use in overhead applications.
Specifications:
- Model: TCH-020-10
- Capacity: 2 Ton (4,000 lbs / 1,814 kg)
- Lift Height: 10 feet (3.05 meters)
- Load Chain: Grade 80 alloy steel
- Chain Diameter: Approx. 8 mm
- Hand Chain Pull (Full Load): Approx. 77 lbs
- Hooks: Forged swivel with safety latches
- Finish: Protective coating for industrial environments
- Net Weight: Approx. 28 lbs (12.7 kg)
The Atlas TCH-020-10 offers strong performance and dependable lifting for demanding environments—making it a reliable solution for professionals who need a tough, efficient manual hoist with a solid working capacity.
